BatteryLevelIndicator
About the BatteryLevelIndicator PCB

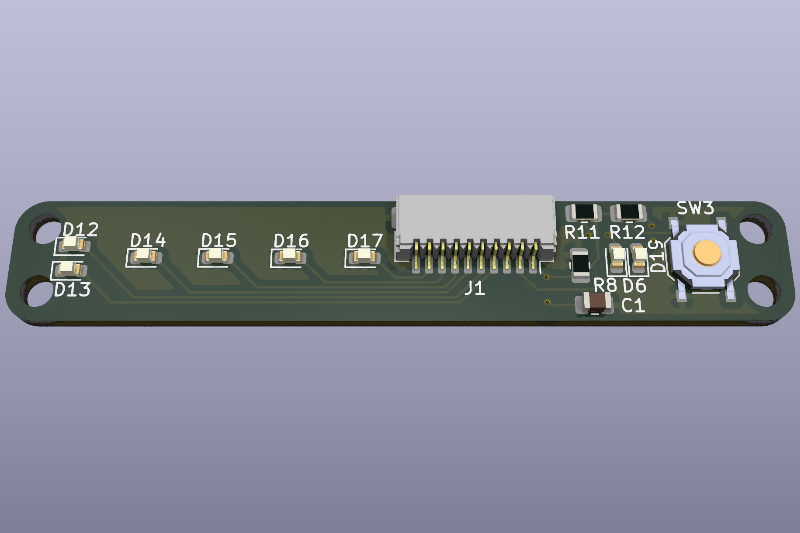

BatteryLevelIndicator is an open source PCB design by mpek29, published on GitHub. It is a 2-layer board measuring 60.3 × 9.8 mm, with 14 components from 5 distinct parts.
By type, the board carries 8 diodes, 3 resistors, 1 connector, 1 switch and 1 capacitor.
It belongs with the displays & leds and power & battery designs in this gallery.
From the project
🔋 Battery status with LED display!
The Battery Level Indicator is an open-source project designed to visually display the charge level of a battery using five green LEDs and a sixth red LED for critical low levels. The board also features an ON/OFF button that activates the system, illuminating two white LEDs when turned on and two blue LEDs at other times.
BatteryLevelIndicator bill of materials (BOM)
14 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_01X10_MOUNTINGPIN Conn_01x10_MountingPin | JST_SH_SM10B-SRSS-TB_1x10-1MP_P1.00mm_Horizontal | J1 |
| 1 | power | SW_Push_1P1T_XKB_TS-1187A | SW3 |
| 8 | LED | LED_0603_1608Metric | D6, D12, D13, D14, D15, D16, D17, D19 |
| 1 | 100NF 100nF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1 |
| 3 | 1kΩ | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R8, R11, R12 |
BatteryLevelIndicator design files
The KiCad project lives in the mpek29/BatteryLevelIndicator repository on GitHub; these links point at the commit this page was built from.
BatteryLevelIndicator: common questions
How big is the BatteryLevelIndicator PCB?
The BatteryLevelIndicator measures 60.3 × 9.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the BatteryLevelIndicator?
14 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BatteryLevelIndicator design files?
From the mpek29/BatteryLevelIndicator repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the BatteryLevelIndicator design in my own project?
The repository has no license, so all rights stay with mpek29. Use it as a reference, and ask the author before reusing the design.
