About the Slice36 PCB

Slice36 is an open source PCB design by MReavley, published on GitHub under the MIT license. It is a 2-layer board measuring 118.8 × 97.2 mm, with 46 components from 5 distinct parts.

Other key parts include the SeeeduinoXIAO. By type, the board carries 18 switches, 18 diodes, 7 resistors, 2 connectors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

36 key ergo split keyboard, designed around the Seeeduino Xiao platform

36 key ergo split keyboard, designed around the Seeeduino Xiao platform. Inspired by the Corne, Ferris, Ben Vallack's videos and countless hours of perusing reddit and kbd.news, but ultimately this has been done up from scratch largely as an exercise for myself. The layout was generated through experimentation with scale drawings on my ipad, although emphasis has been placed on aesthetics and compactness.

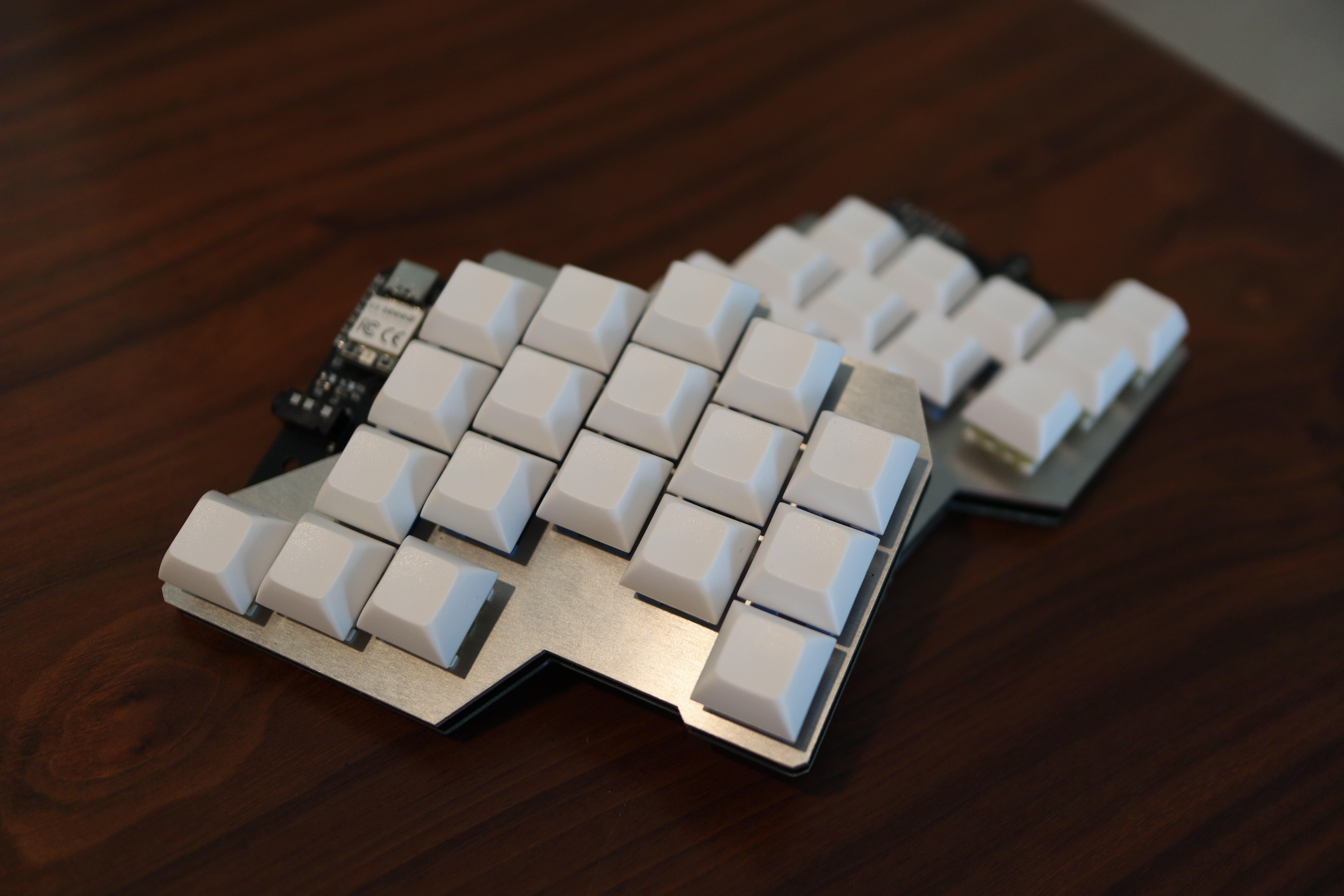

Slice36, from the project README
From the project README

Main components on the Slice36

SeeeduinoXIAO

Slice36 bill of materials (BOM)

46 components, 5 distinct parts.

QtyPartRefs
1
SeeeduinoXIAO
U1
2
AudioJack4
J1, J2
18
Cherry_Doublesided
Sw1, Sw2, Sw3, Sw4, Sw5, Sw6, Sw7, Sw8 +10
18
1N4148WS
D1, D2, D3, D4, D5, D6, D7, D8 +10
7
10k
R1, R2, R3, R4, R5, R6, R7

Slice36 design files

The KiCad project lives in the MReavley/Slice36 repository on GitHub; these links point at the commit this page was built from.

Slice36: common questions

How big is the Slice36 PCB?

The Slice36 measures 118.8 × 97.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Slice36?

46 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Slice36 design files?

From the MReavley/Slice36 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Slice36 design in my own project?

Yes, under the terms of its MIT license, which MReavley chose for the repository.
