Stm32-can node PCB layout, top view — open source STM32 board by mrk-its

About the Stm32-can node PCB

Stm32-can node is an open source STM32 PCB design by mrk-its, published on GitHub. It is a 4-layer board measuring 40 × 25 mm, with 40 components from 24 distinct parts.

Its main chip is the STM32U535CEUxQ, from the STM32 family. Other key parts include the DS2484R+T, SN65HVD234DR and AP63203WU-7. By type, the board carries 19 capacitors, 9 resistors, 4 ICs, 3 diodes, 2 connectors and 2 inductors.

From the project

modern STM32 MCU (U3/U5 series) integrated step-down converter (24V -> 3.3V) integrated CAN transceiver integrated 1-wire master controller (over i2c) 2.54 pin headers exposing 15 GPIOs separate SWD connector for flashing / debugging separate UART connector small form factor (40m

modern STM32 MCU (U3/U5 series) integrated step-down converter (24V -> 3.3V) integrated CAN transceiver integrated 1-wire master controller (over i2c) 2.54 pin headers exposing 15 GPIOs separate SWD connector for flashing / debugging separate UART connector small form factor (40mm x 25mm)

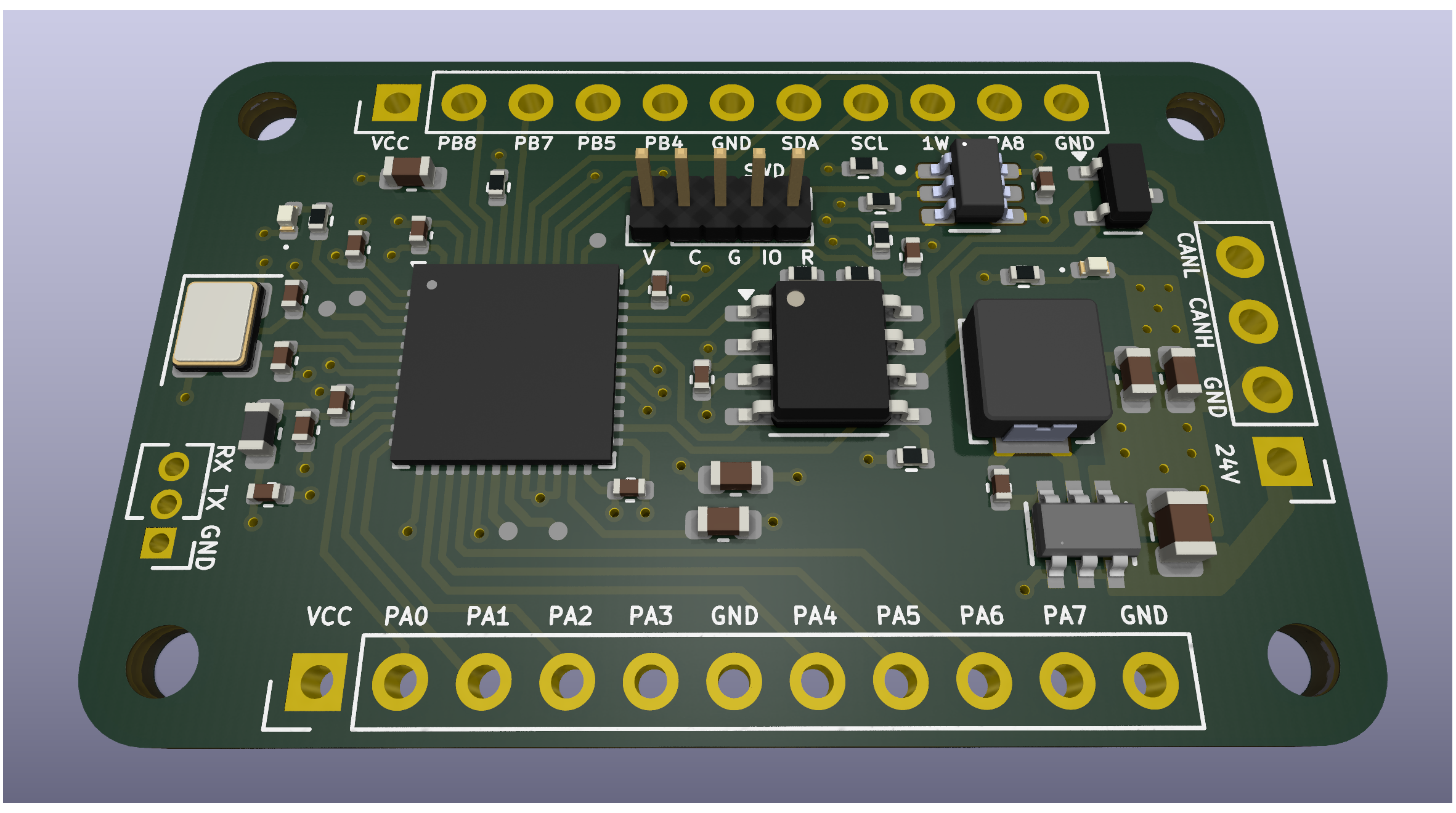

Stm32-can node, from the project README
From the project README

Main components on the Stm32-can node

DS2484R+TSTM32U535CEUxQSN65HVD234DRAP63203WU-7

Stm32-can node bill of materials (BOM)

40 components, 24 distinct parts.

QtyPartRefs
1
DS2484R+T
U1
1
STM32U535CEUxQ
U3_1
1
SN65HVD234DR
U4
1
AP63203WU-7
U5
1
16MHz
Y1
1
Conn_01x05_Pin
J4
1
Conn_01x03_Pin
J5
1
C397045
D1
1
C165977
D2
1
NUP2105L
D3
1
FCM1608KF-601T05
FB1
1
4.7uH
L1
1
22uF
C1
1
10uF
C3
9
100nF
C4, C5, C6, C7, C10, C11, C14, C16 +1
1
10nF
C8
1
1uF
C9
2
10pF
C12, C13
2
2.2uF
C15, C30
2
22uF
C18, C19
Show 4 more
QtyPartRefs
3
1.5kΩ
R1, R6, R9
3
10kΩ
R2, R7, R8
1
0Ω
R3
2
3.3kΩ
R4, R5

Stm32-can node design files

The KiCad project lives in the mrk-its/stm32-can-node repository on GitHub; these links point at the commit this page was built from.

Stm32-can node: common questions

What microcontroller does the Stm32-can node use?

The Stm32-can node is built around the STM32U535CEUxQ, from the STM32 family.

How big is the Stm32-can node PCB?

The Stm32-can node measures 40 × 25 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Stm32-can node?

40 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stm32-can node design files?

From the mrk-its/stm32-can-node repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Stm32-can node design in my own project?

The repository has no license, so all rights stay with mrk-its. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Stm32-can node without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
