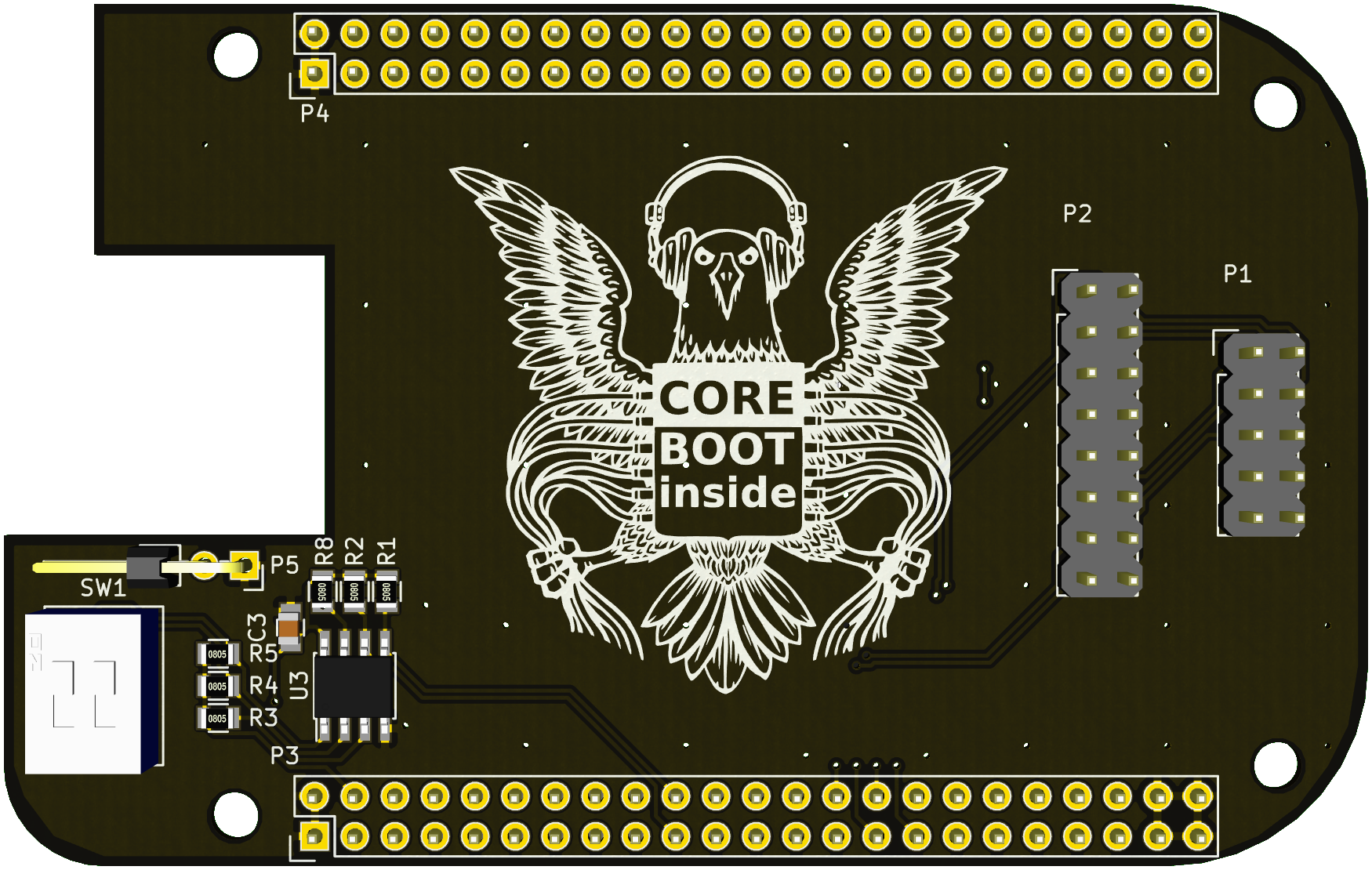

Beaglebone spi flasher cape
About the Beaglebone spi flasher cape PCB
Beaglebone spi flasher cape is an open source PCB design by mrnuke, published on GitHub. It is a 2-layer board measuring 86.4 × 54.6 mm, with 18 components from 14 distinct parts.
Other key parts include the PAM2305AAB330, 74HC125 and CAT24C256W. By type, the board carries 5 connectors, 4 capacitors, 3 ICs, 3 resistors, 1 switch and 1 inductor.
From the project
The SPI flasher cape is a cape for the BeagleBone family of boards which allows the BeagleBone to interface with a SPI NOR flash chip in order to allow programming or reading the chip's contents.
The SPI flasher cape is a cape for the BeagleBone family of boards which allows the BeagleBone to interface with a SPI NOR flash chip in order to allow programming or reading the chip's contents.
The total bill-of-materials (COM) cost is under $10 US, including the PCB.
The independent voltage regulator (VR) supplies the power for the operation of the SPI chip, and is independent of te BeagleBone's internal voltage rails. This protects the BeagleBone from brown-outs inc case of an external short-circuits. Since it is a switching regulator, the VR dissipates very little power when compared…
Main components on the Beaglebone spi flasher cape
Beaglebone spi flasher cape bill of materials (BOM)
18 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PAM2305AAB330 | SOT-23-5 | U1 |
| 1 | 74HC125 | SOIC-14_3.9x8.7mm_Pitch1.27mm | U2 |
| 1 | CAT24C256W | SOIC-8_3.9x4.9mm_Pitch1.27mm | U3 |
| 1 | SPI-8 | IDC_Header_Straight_10pins | P1 |
| 1 | SPI-16 | IDC_Header_Straight_16pins | P2 |
| 1 | EEPROM_PROG_EN | Pin_Header_Angled_2x01 | P3 |
| 1 | BBB_P9 | Pin_Header_Straight_2x23 | P4 |
| 1 | BBB_P8 | Pin_Header_Straight_2x23 | P5 |
| 1 | 10k | SOIC-16_3.9x9.9mm_Pitch1.27mm | RP1 |
| 1 | DIPS_02 | SW_DIP_x2_Slide | SW1 |
| 1 | 10uH | Neosid_Inductor_SM-NE45_SMD1812 | L1 |
| 3 | 10uF | C_0805 | C1, C2, C3 |
| 1 | 0.1uF | C_0805 | C4 |
| 3 | 10k | R_0805 | R1, R2, R3 |
Beaglebone spi flasher cape design files
The KiCad project lives in the mrnuke/beaglebone-spi-flasher-cape repository on GitHub; these links point at the commit this page was built from.
Beaglebone spi flasher cape: common questions
How big is the Beaglebone spi flasher cape PCB?
The Beaglebone spi flasher cape measures 86.4 × 54.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Beaglebone spi flasher cape?
18 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the Beaglebone spi flasher cape design files?
From the mrnuke/beaglebone-spi-flasher-cape repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Beaglebone spi flasher cape design in my own project?
The repository has no license, so all rights stay with mrnuke. Use it as a reference, and ask the author before reusing the design.
