Coco3AppleRGB
About the Coco3AppleRGB PCB

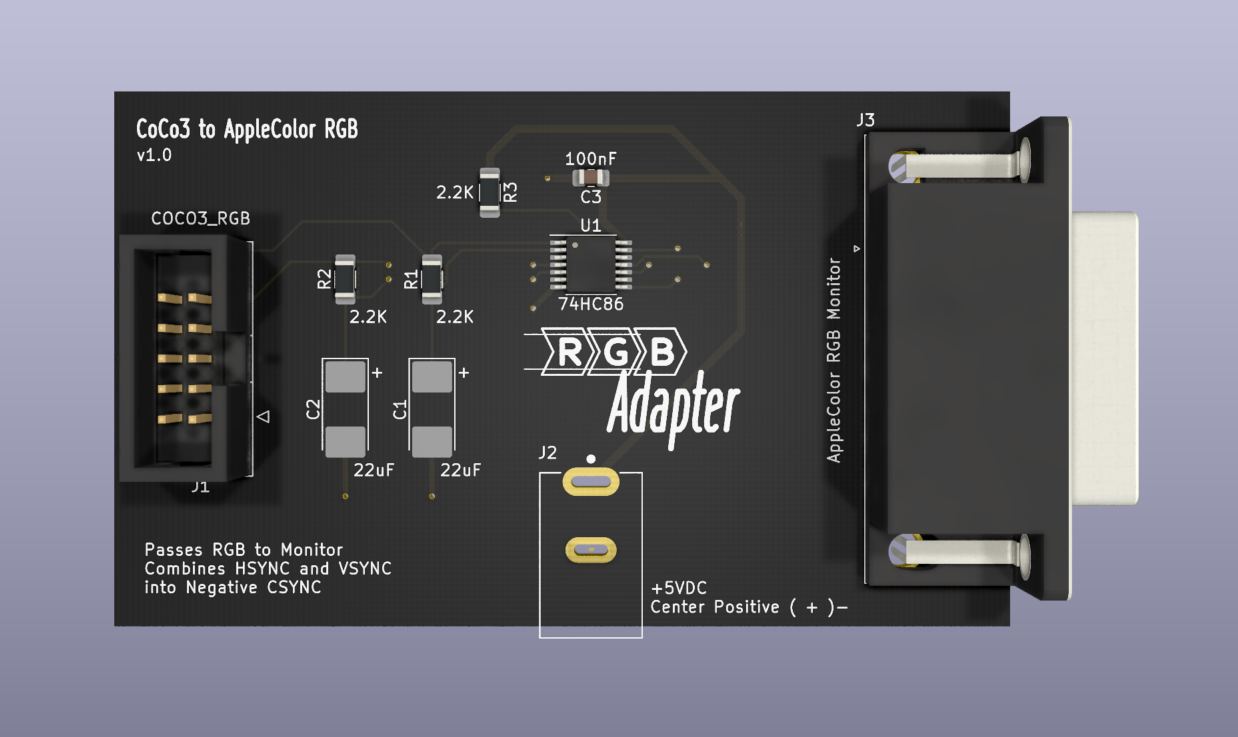

Coco3AppleRGB is an open source PCB design by mrojas36, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 78.7 × 47 mm, with 9 components from 6 distinct parts.
Other key parts include the 74HC86. By type, the board carries 3 capacitors, 3 resistors, 2 connectors and 1 IC.
From the project
Tandy Color Computer 3 RGB Port to AppleColor RGB Monitor (IIgs version)
This card will interface the Color Computer 3 RGB port to an AppleColor RGB Monitor (model A2M6014). It was created and shared with the CoCo community. The design is provided here for whatever purpose you would like: make for yourself, build, sell, or modify.
The card was designed from an schematic from 1996 by Tomi Engdahl. The circuit was modified to work with the AppleColor RGB Monitor. Here is the original schematic:
Main components on the Coco3AppleRGB
Coco3AppleRGB bill of materials (BOM)
9 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74HC86 | TSSOP-14_4.4x5mm_P0.65mm | U1 |
| 1 | COCO3_RGB | IDC-Header_2x05_P2.54mm_Vertical | J1 |
| 1 | PJ-037A | CUI_PJ-037A | J2 |
| 2 | 22uF | C_1210_3225Metric_Pad1.33x2.70mm_HandSolder | C1, C2 |
| 1 | 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3 |
| 3 | 2.2K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R2, R3 |
Coco3AppleRGB design files
The KiCad project lives in the mrojas36/Coco3AppleRGB repository on GitHub; these links point at the commit this page was built from.
- LayoutCoco3AppleRGB.kicad_pcb
- BOMBOM.xlsx
Coco3AppleRGB: common questions
How big is the Coco3AppleRGB PCB?
The Coco3AppleRGB measures 78.7 × 47 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Coco3AppleRGB?
9 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Coco3AppleRGB design files?
From the mrojas36/Coco3AppleRGB repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Coco3AppleRGB design in my own project?
Yes, under the terms of its CC0-1.0 license, which mrojas36 chose for the repository.
