Plimsoll
About the Plimsoll PCB

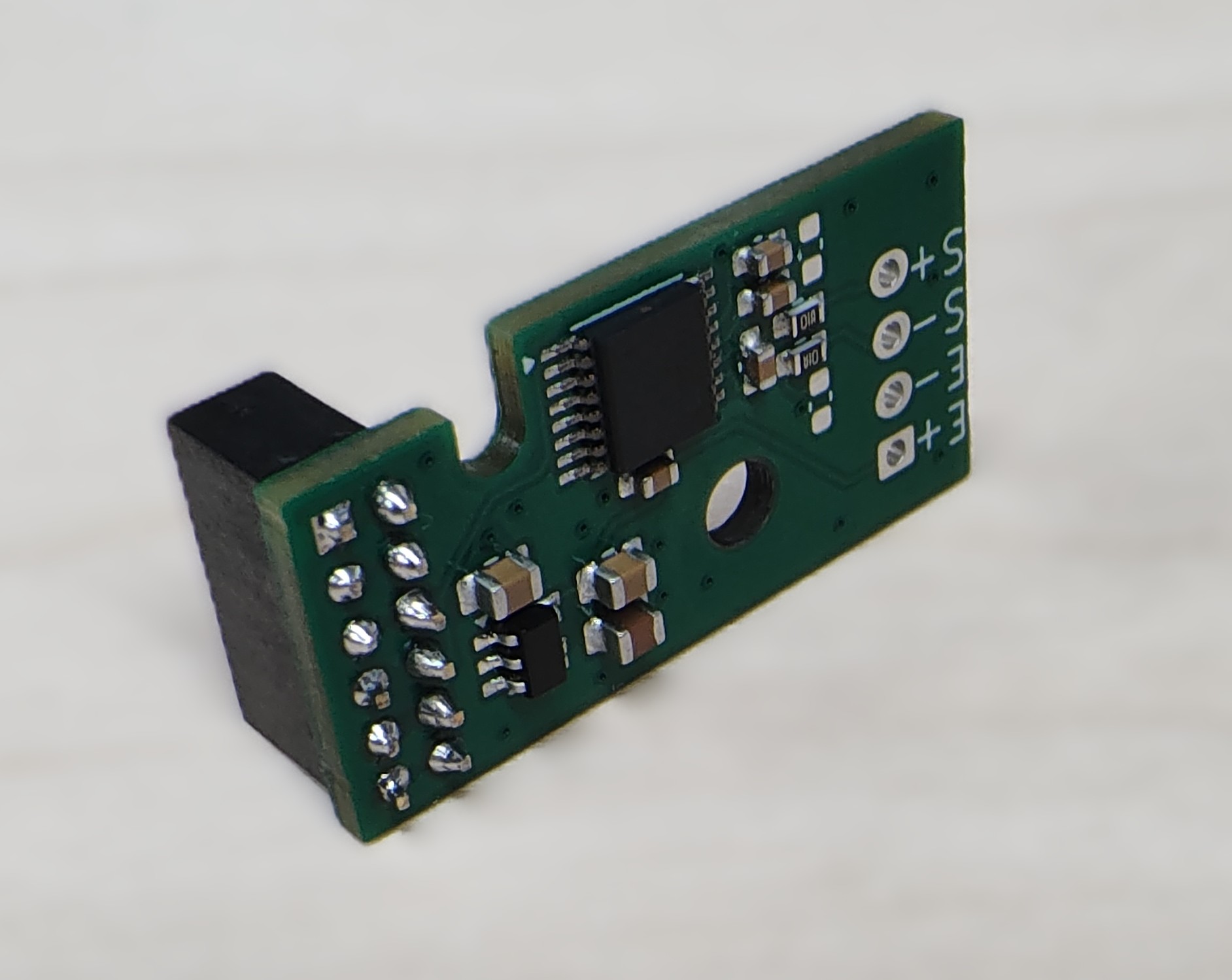

Plimsoll is an open source PCB design by mulcmu, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 15.1 × 29.2 mm, with 11 components from 6 distinct parts.
Other key parts include the ADS1220XPW and RS3236-3.3. By type, the board carries 7 capacitors, 2 ICs and 2 resistors.
From the project
Kicad PCB design with XH717 ADC to support Klipper load cell
Prototype designs for klipper load cell ADC implementations.
STM32F072 and HX717 based strain gauge for use as a Klipper load cell.
Initial batch ordered for testing with JLCPCB. About 5.5 USD cost per board.
Firmware and configuration tested with current community test branch.
Smallish size, 20x50 mm footprint. M2.5 mounting holes. Fab house added the smaller tooling holes...
Main components on the Plimsoll
Plimsoll bill of materials (BOM)
11 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ADS1220XPW ADS1220xPW | TSSOP-16_4.4x5mm_P0.65mm | U1 |
| 1 | RS3236-3.3 | SOT-23-5 | U5 |
| 2 | 1u | C_0805_2012Metric | C6, C10 |
| 4 | 100N 100n | C_0603_1608Metric | C7, C8, C9, C12 |
| 1 | 10U 10u | C_0805_2012Metric | C11 |
| 2 | 100 | R_0603_1608Metric | R7, R8 |
Plimsoll design files
The KiCad project lives in the mulcmu/Plimsoll repository on GitHub; these links point at the commit this page was built from.
Plimsoll: common questions
How big is the Plimsoll PCB?
The Plimsoll measures 15.1 × 29.2 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Plimsoll?
11 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Plimsoll design files?
From the mulcmu/Plimsoll repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Plimsoll design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which mulcmu chose for the repository.
