Rck22 PCB layout, top view — open source NXP board by Muriukidavid

About the Rck22 PCB

Rck22 is an open source NXP PCB design by Muriukidavid, published on GitHub. It is a 2-layer board measuring 95.3 × 72.4 mm, with 75 components from 38 distinct parts.

Its main chip is the MK22FN512VLH12, from the NXP family. Other key parts include the PEC11L-4115F-S0020, XC6220B331MR, MAX31855KASA+T and N1616LCD_Shield. By type, the board carries 20 capacitors, 18 resistors, 10 connectors, 6 ICs, 5 diodes and 4 test points.

From the project

Design for a home toaster oven reflow based on tinyk22 module

This is a reflow oven controller based on tinyK22 board with NXP K22P121M120SF7RM MCU.

The goal is to use the board on a breadboard for developing the firmware and design a custom board

A preview of the ongoing Custom board PCB design

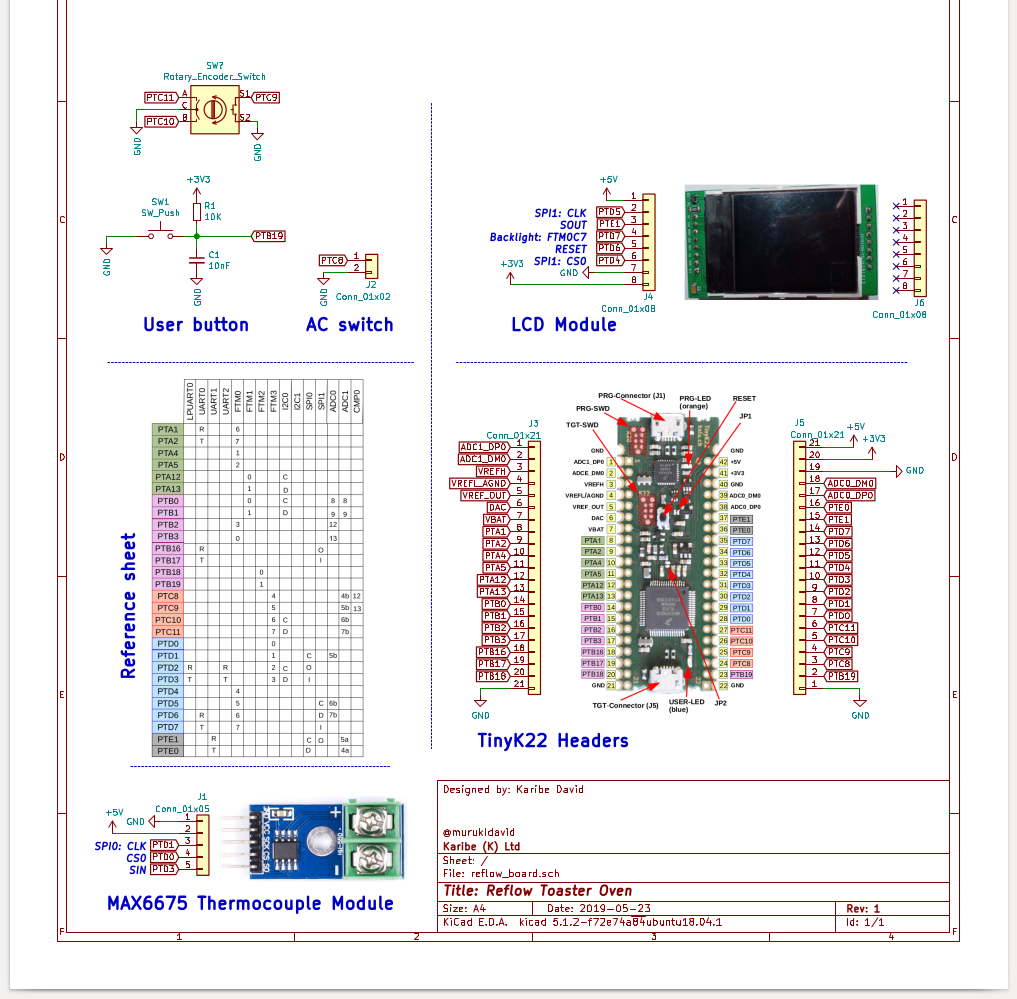

Rck22, from the project README
From the project README

Main components on the Rck22

PEC11L-4115F-S0020XC6220B331MRMK22FN512VLH12MAX31855KASA+TN1616LCD_Shield

Rck22 bill of materials (BOM)

75 components, 38 distinct parts.

QtyPartRefs
1
PEC11L-4115F-S0020
IC1
2
XC6220B331MR
U1, U5
1
MK22FN512VLH12
U2
1
MAX31855KASA+T
U3
1
N1616LCD_Shield
U4
3
BSS138
Q1, Q2, Q3
1
8Mhz
Y1
1
32.768Khz
Y2
1
Conn_02x05_Odd_Even
J1
1
USB_OTG
J2
1
PCC-SMP-K
J3
1
5V_DC_IN
J4
1
header
J5
3
SSR
J6, J7, J8
2
Conn_01x02
J9, J10
1
TF-01A
SD1
3
PTS810
SW1, SW2, SW3
2
5003
TP1, TP3
1
5001
TP2
1
5002
TP4
Show 18 more
QtyPartRefs
1
PMEG2005CT,215
D1
1
NUP2105L
D2
1
SP0503BAHT
D3
1
GREEN LED
D4
1
RED LED
D5
1
330Ohm@100MHz
FB1
2
bead
FB2, FB3
6
10uF/6.3V/±20%/X7R/0805
C1, C2, C5, C6, C14, C20
11
100nF/50V/0603
C3, C4, C9, C10, C11, C12, C13, C15 +3
1
100nF/16V/X7R/0402
C7
1
2.2uF/6.3V/±10%/0603
C8
1
10nF/50V/X7R/0603
C19
10
10k/0.125W/±1%/0603
R1, R8, R9, R10, R11, R12, R13, R15 +2
3
100
R2, R7, R14
2
33
R3, R4
1
16.9
R5
1
23.2
R6
1
680/±1%/0.1W/0402
R18

Rck22 design files

The KiCad project lives in the Muriukidavid/reflow_toaster_oven repository on GitHub; these links point at the commit this page was built from.

Rck22: common questions

What microcontroller does the Rck22 use?

The Rck22 is built around the MK22FN512VLH12, from the NXP family.

How big is the Rck22 PCB?

The Rck22 measures 95.3 × 72.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rck22?

75 components, from 38 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rck22 design files?

From the Muriukidavid/reflow_toaster_oven repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Rck22 design in my own project?

The repository has no license, so all rights stay with Muriukidavid. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Rck22 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
