AS5600-adapter

n2048-creative-technology·AS5600-adapter

AS5600-adapter PCB layout, top view — open source board by n2048-creative-technology

About the AS5600-adapter PCB

AS5600-adapter is an open source PCB design by n2048-creative-technology, published on GitHub under the MIT license. It is a 2-layer board measuring 23 × 23 mm, with 3 components from 2 distinct parts.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

PCB to addapt to the annoying pin layout of the AS6500 magnetic encoder

A tiny breakout PCB that re-maps the AS5600 magnetic angle sensor module's awkward pin layout onto a standard, easier-to-wire 1x4 header — commonly sold AS5600 boards break out VCC/GND/SCL/SDA (plus OUT/DIR pins) in an order that doesn't play well with standard jumper cables or a solderless breadboard.

A passive adapter PCB (no active components) with two headers:

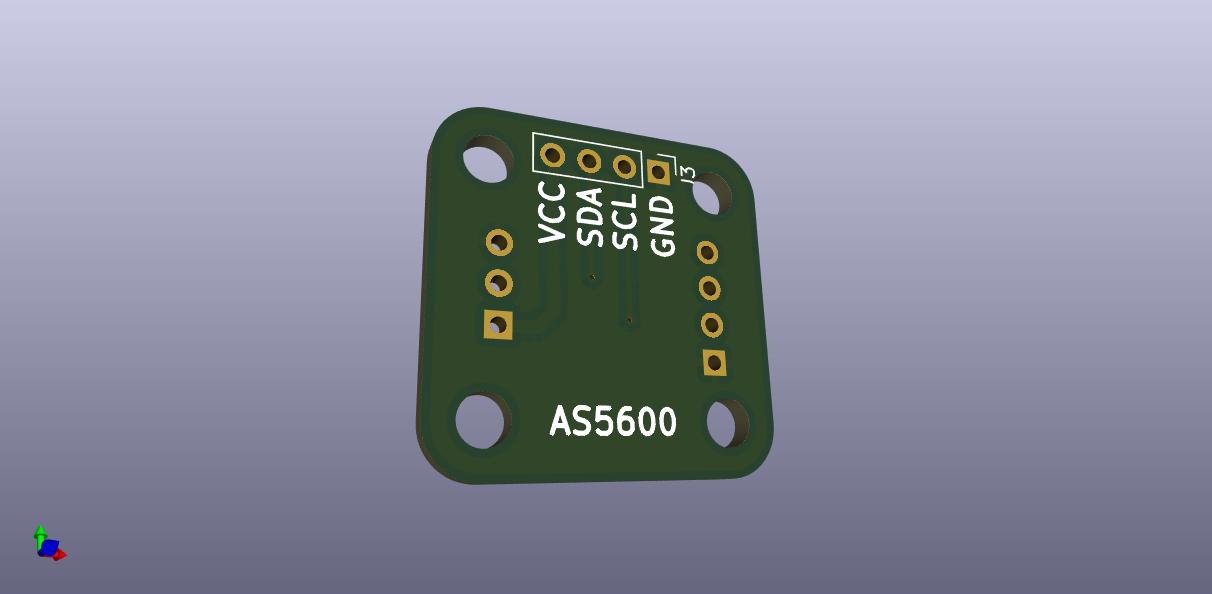

AS5600-adapter, from the project README
From the project README

AS5600-adapter bill of materials (BOM)

3 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
CONN_01X04
Conn_01x04
J1, J3
1
CONN_01X03
Conn_01x03
J2

AS5600-adapter design files

The KiCad project lives in the n2048-creative-technology/AS5600-adapter repository on GitHub; these links point at the commit this page was built from.

AS5600-adapter: common questions

How big is the AS5600-adapter PCB?

The AS5600-adapter measures 23 × 23 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AS5600-adapter?

3 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the AS5600-adapter design files?

From the n2048-creative-technology/AS5600-adapter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the AS5600-adapter design in my own project?

Yes, under the terms of its MIT license, which n2048-creative-technology chose for the repository.
