N5geh.devices.iot wa dio- PCB layout, top view — open source RP2040/RP2350 board by N5GEH

About the N5geh.devices.iot wa dio- PCB

N5geh.devices.iot wa dio- is an open source RP2040/RP2350 PCB design by N5GEH, published on GitHub under the MIT license. It is a 4-layer board measuring 42 × 75.5 mm, with 140 components from 36 distinct parts.

Its main chip is the ESP-32-PICO-KIT-V4, from the RP2040/RP2350 family. Other key parts include the VOM452T, MAX13487EESA+, LM340MP-5.0/NOPB, LAN8720A-CP and FiPy. By type, the board carries 70 resistors, 34 capacitors, 12 ICs, 8 transistors, 4 connectors and 4 switches.

It belongs with the iot & wireless designs in this gallery.

From the project

IoT-DIO is a wireless adapter for developing IoT applications for Industrial and Building Automation Systems based on the Espressif chipset ESP32. The adapter is compatible with: - RS485 - M-Bus - Ethernet

IoT-DIO is a wireless adapter for developing IoT applications for Industrial and Building Automation Systems based on the Espressif chipset ESP32. The adapter is compatible with: - RS485 - M-Bus - Ethernet

The library allows the implemention of IoT applications that rely on MQTT protocol via WiFi/NB-IoT/LTE Cat-M1 interfaces.

We kindly ask academic publications employing based or inspired to IoT-AIO to cite at least one of the following papers:

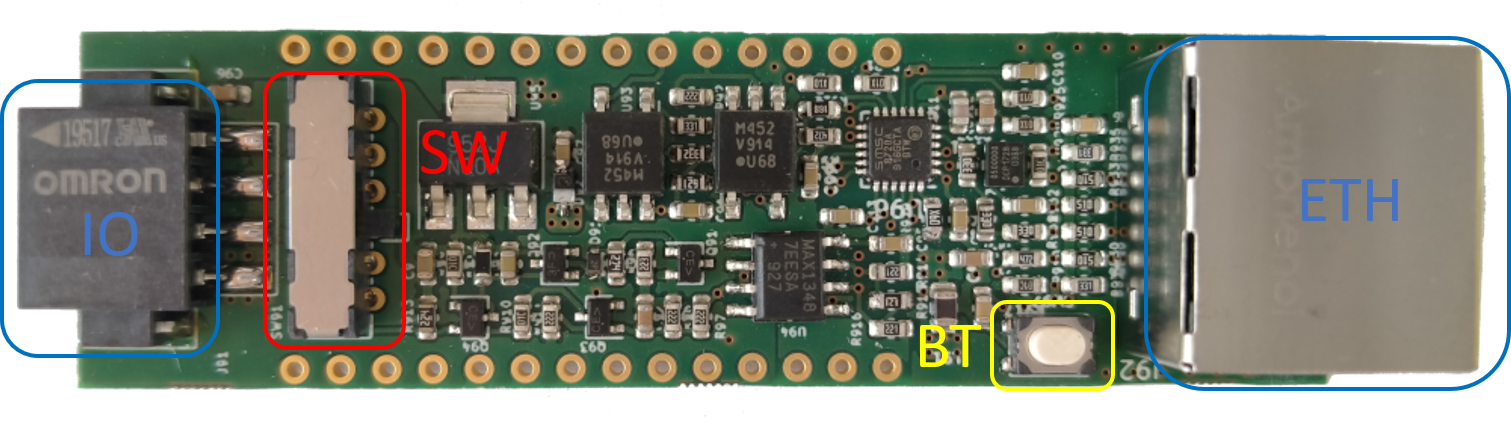

N5geh.devices.iot wa dio-, from the project README
From the project README

Main components on the N5geh.devices.iot wa dio-

ESP-32-PICO-KIT-V4VOM452TMAX13487EESA+LM340MP-5.0/NOPBLAN8720A-CPFiPy

N5geh.devices.iot wa dio- bill of materials (BOM)

140 components, 36 distinct parts.

QtyPartRefs
1
ESP-32-PICO-KIT-V4
U1
4
VOM452T
U2, U3, U92, U93
2
MAX13487EESA+
U4, U94
2
LM340MP-5.0/NOPB
U5, U95
2
LAN8720A-CP
U6, U96
1
FiPy
U91
6
BC817-40WT1G
Q1, Q3, Q4, Q91, Q93, Q94
2
BC857BWT1G
Q2, Q92
2
DSC6011JI1A-050.0000
X1, X91
2
Conn_01x04 XW4L-04A1-H1
J1, J91
2
RJ45_LED_Shielded
J2, J92
2
MS42R
SW1, SW91
2
PTS810SJK250SMTRLFS
SW2, SW92
4
D_Schottky BAS52-02V
D1, D2, D91, D92
2
BK2125HS470-T
L1, L91
20
100n
C1, C3, C5, C7, C8, C9, C10, C13 +12
4
1u
C2, C12, C92, C912
2
10u
C4, C94
2
220n
C6, C96
2
470p
C11, C911
Show 16 more
QtyPartRefs
2
4.7u
C15, C915
2
22n
C16, C916
6
330
R1, R34, R35, R91, R934, R935
10
2.2k
R2, R7, R8, R11, R26, R92, R97, R98 +2
2
3.3k
R3, R93
2
620
R4, R94
4
220k
R5, R13, R95, R913
2
22k
R6, R96
8
10k
R9, R10, R17, R18, R99, R910, R917, R918
2
82
R12, R912
4
220
R14, R16, R914, R916
2
120
R15, R915
4
4.7k
R19, R23, R919, R923
14
49.9
R20, R24, R27, R30, R31, R32, R33, R920 +6
8
10
R21, R22, R25, R28, R921, R922, R925, R928
2
12.1k
R29, R929

N5geh.devices.iot wa dio- design files

The KiCad project lives in the N5GEH/n5geh.devices.iot_wa_dio- repository on GitHub; these links point at the commit this page was built from.

N5geh.devices.iot wa dio-: common questions

What microcontroller does the N5geh.devices.iot wa dio- use?

The N5geh.devices.iot wa dio- is built around the ESP-32-PICO-KIT-V4, from the RP2040/RP2350 family.

How big is the N5geh.devices.iot wa dio- PCB?

The N5geh.devices.iot wa dio- measures 42 × 75.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the N5geh.devices.iot wa dio-?

140 components, from 36 distinct parts. The full bill of materials is listed on this page.

Where can I download the N5geh.devices.iot wa dio- design files?

From the N5GEH/n5geh.devices.iot_wa_dio- repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the N5geh.devices.iot wa dio- design in my own project?

Yes, under the terms of its MIT license, which N5GEH chose for the repository.

Can I test firmware for the N5geh.devices.iot wa dio- without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
