Splitreus62
About the Splitreus62 PCB
Splitreus62 is an open source PCB design by Na-Cly, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 132.5 × 101 mm, with 65 components from 5 distinct parts.
Other key parts include the ProMicro. By type, the board carries 31 switches, 31 diodes, 1 IC and 1 connector.
It belongs with the keyboards designs in this gallery.
From the project

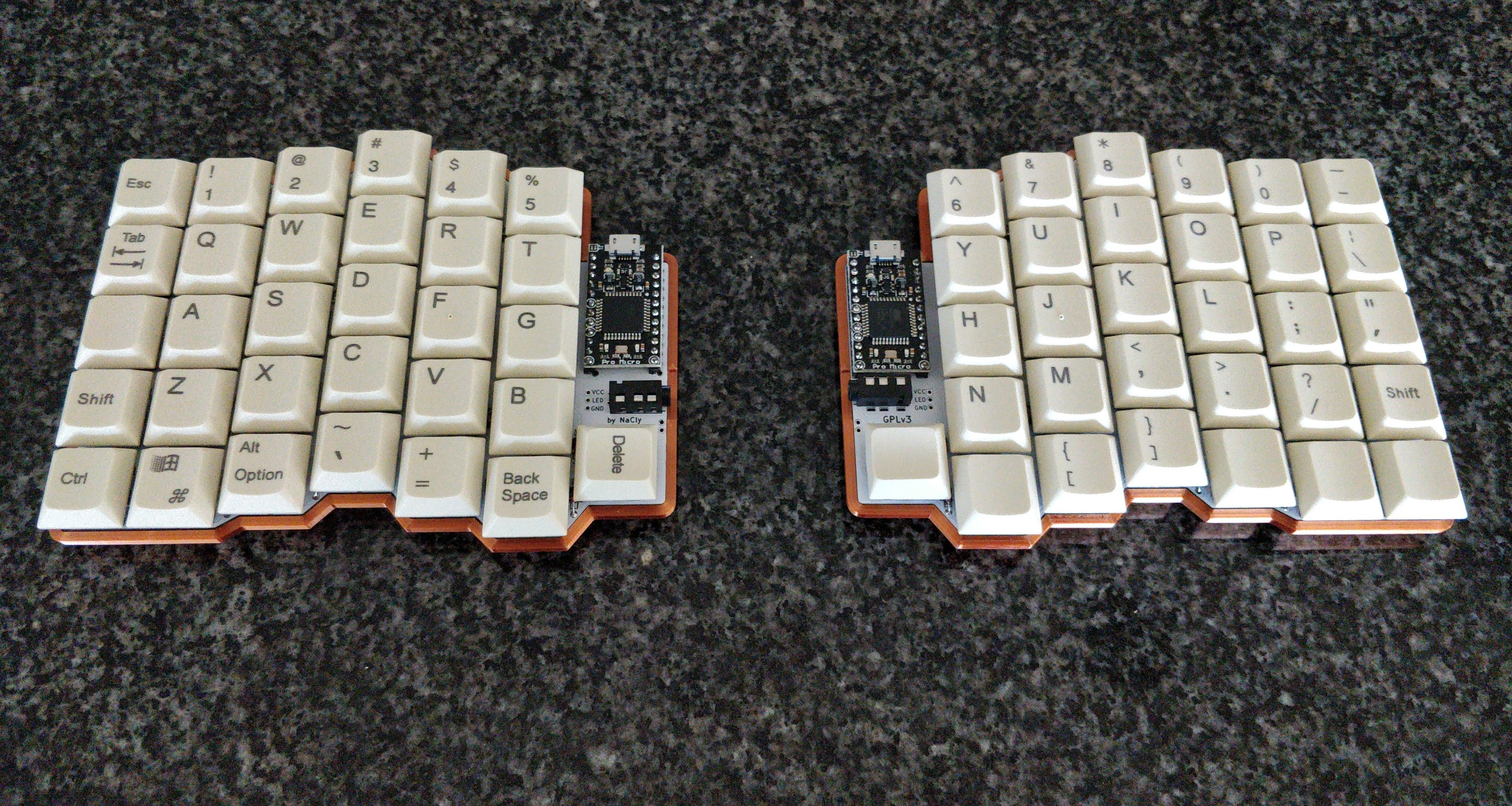

A Split version of the Atreus62
- Atreus Phil Hagelberg - Atreus62 Profet23
All these files were created from scratch, but out of respect for Phil I wanted to GPLv3 the project.
Thanks to Phil for the staggering measurements from the atreus, and profet23 for the 62 key variant.
This project uses MIT licensed KiCad footprints from Keebio and the Lily58 project.
Main components on the Splitreus62
Splitreus62 bill of materials (BOM)
65 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro_rev2 | U1 |
| 1 | TRRS | MJ-4PP-9 | J1 |
| 1 | RST_SWITCH | PinHeader_1x02_P1.27mm_Vertical | RST1 |
| 31 | SW_PUSH | MX-Alps-Choc-1U-No-reversible-fixed | SW0, SW1, SW2, SW3, SW4, SW5, SW6, SW7 +23 |
| 31 | DIODE_SCHOTTKY_SOT23 | Diode-Hybrid-Back | D0, D1, D2, D3, D4, D5, D6, D7 +23 |
Splitreus62 design files
The KiCad project lives in the Na-Cly/splitreus62 repository on GitHub; these links point at the commit this page was built from.
- Layoutsplitreus.kicad_pcb
Splitreus62: common questions
How big is the Splitreus62 PCB?
The Splitreus62 measures 132.5 × 101 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Splitreus62?
65 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Splitreus62 design files?
From the Na-Cly/splitreus62 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Splitreus62 design in my own project?
Yes, under the terms of its GPL-3.0 license, which Na-Cly chose for the repository.
