About the Ann-Medics PCB
Ann-Medics is an open source PCB design by nader3254, published on GitHub. It is a 2-layer board measuring 3 × 3 mm, with 10 components from 9 distinct parts.
Other key parts include the MCP3008. By type, the board carries 5 connectors, 2 diodes, 2 resistors and 1 IC.
From the project

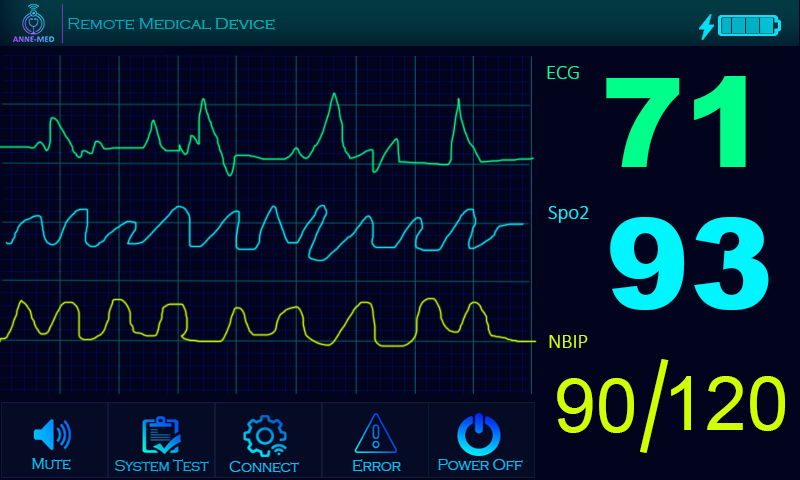

Remote medical device based on embedded Linux System with Qt5 beautiful Gui and android application included
This repo is for university graduation project
Ann-Medics is a enhanced Remote Medical Device that store the human vitalities and monitor it for doctors,nurses and other medical stuff , it also management system that works to organize the doctors’ hours, especially the anesthesiologists, given that their number is few in the world. Instead of waiting for the anesthesiologist for the patient to prepare for anesthesia, he can do anything else until this humble system summons him and sends a message to the doctor, and thus we will be as much as possible to save the treating doctor’s time.
Main components on the Ann-Medics
Ann-Medics bill of materials (BOM)
10 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP3008 | DIP-14_W7.62mm_LongPads | U1 |
| 1 | rpi | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 1 | spo2 | PinSocket_1x04_P2.54mm_Vertical | J2 |
| 1 | buzzer | PinSocket_1x02_P2.54mm_Vertical | J3 |
| 1 | ecg | PinSocket_1x06_P2.54mm_Vertical | J4 |
| 1 | lcd. | PinSocket_2x13_P2.54mm_Vertical | J5 |
| 1 | pwr | LED_D2.0mm_W4.8mm_H2.5mm_FlatTop | D1 |
| 1 | buzz | LED_D2.0mm_W4.8mm_H2.5mm_FlatTop | D2 |
| 2 | R | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Vertical | R1, R2 |
