Prime Maxel v3 is an open source PCB design by nagapi2357-ui, published on GitHub under the CC-BY-SA-4.0 license. It is a 4-layer board measuring 205 × 150 mm, with 96 components from 13 distinct parts.
Other key parts include the TCA9548APWR, LM324DRE4 and SLG47004V. By type, the board carries 37 capacitors, 26 resistors, 25 ICs and 8 connectors.
From the project
V3 torsion ring PCB — original experiment showed apparent prime-ratio advantages, but a subsequent pre-registered replication (Plan C, pure sine waves) returned null on 7/8 metrics. V3 effects attributed to square-wave harmonic confound. See CORRIGENDUM. KiCad 9.
~~First experimental evidence that prime-ratio frequency networks outperform composite-ratio networks in a physical resonator.~~
Published: Zenodo DOI 10.5281/zenodo.20637347

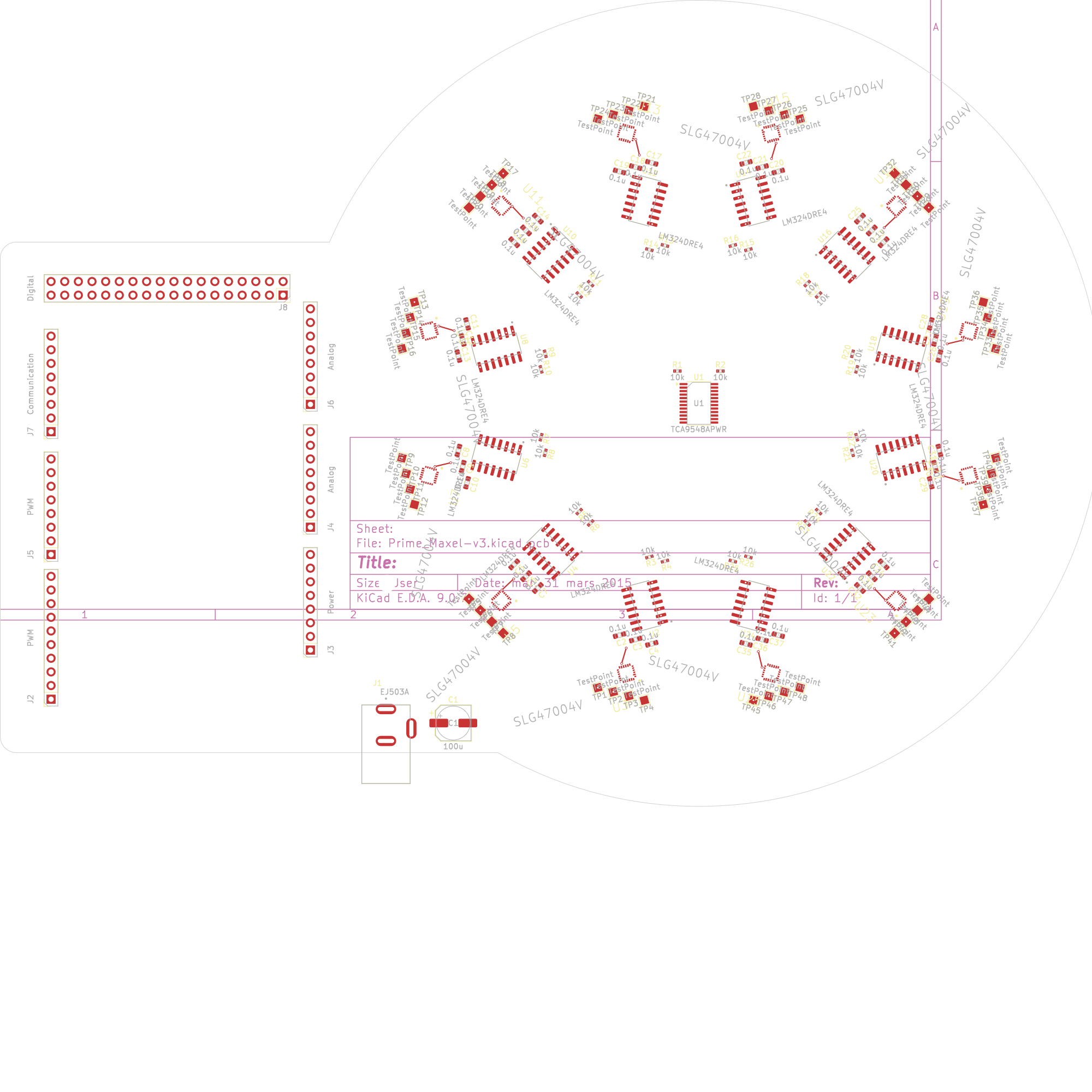

PrimeMaxel-v3 is a 12-cell torsion resonator ring built to test whether prime-ratio frequency relationships produce measurably different coupling behaviour compared to composite ratios. Each cell pairs a SLG47004V GreenPAK mixed-signal IC with an LM324 op-amp, connected via twin shared copper torsion traces on a 4-layer PCB fabricated by JLCPCB. An Arduino Mega 2560 generates six independent square-wave channels using…
Main components on the Prime Maxel v3
Prime Maxel v3 bill of materials (BOM)
96 components, 13 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TCA9548APWR | TSSOP-24_4.4x7.8mm_P0.65mm | U1 |
| 12 | LM324DRE4 | LM324DRE4-SOIC127P600X175-14N | U2, U4, U6, U8, U10, U12, U14, U16 +4 |
| 12 | SLG47004V | SLG47004V-STQFN-24-3.0X3.0-A | U3, U5, U7, U9, U11, U13, U15, U17 +4 |
| 1 | EJ503A | MPD_EJ503A | J1 |
| 1 | PWM | PinSocket_1x10_P2.54mm_Vertical | J2 |
| 1 | Power | PinSocket_1x08_P2.54mm_Vertical | J3 |
| 2 | Analog | PinSocket_1x08_P2.54mm_Vertical | J4, J6 |
| 1 | PWM | PinSocket_1x08_P2.54mm_Vertical | J5 |
| 1 | Communication | PinSocket_1x08_P2.54mm_Vertical | J7 |
| 1 | Digital | PinSocket_2x18_P2.54mm_Vertical | J8 |
| 1 | 100U 100u | CP_Elec_6.3x7.7 | C1 |
| 36 | 0.1U 0.1u | C_0603_1608Metric | C2, C3, C4, C5, C6, C7, C8, C9 +28 |
| 26 | 10K 10k | R_0402_1005Metric | R1, R2, R3, R4, R5, R6, R7, R8 +18 |
