Daedapad PCB layout, top view — open source board by Nauticos

About the Daedapad PCB

Daedapad is an open source PCB design by Nauticos, published on GitHub under the MIT license. It is a 2-layer board measuring 64 × 100 mm, with 37 components from 6 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 22 diodes, 13 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

This will be for Daedapad - a macropad I designed with the help of Stardance

Daedapad is a macropad with 12 mechanical switches, 9 LEDs, a rotary encoder, and a 128x32 OLED display.

SEEED XIAO RP2040 (microcontroller) 12x MX-style switches arranged in a 3x4 pattern 9x SK6812MINI LEDs 1x EC11 rotary encoder 1x 128x32 OLED screen VIA compatability A custom sandwich mounting style case QMK Firmware

1x SEEED XIAO RP2040 (microcontroller) 12x MX-style switches 12x Blank DSA keycaps 13x 1N4148 through-hole diodes 9x SK6812MINI LEDs 1x EC11 rotary encoder 1x 128x32 OLED screen 1x Custom sandwich mounting style case 1x Custom PCB 4x M3×16mm screws * 4x M3×5×4mm heatset…

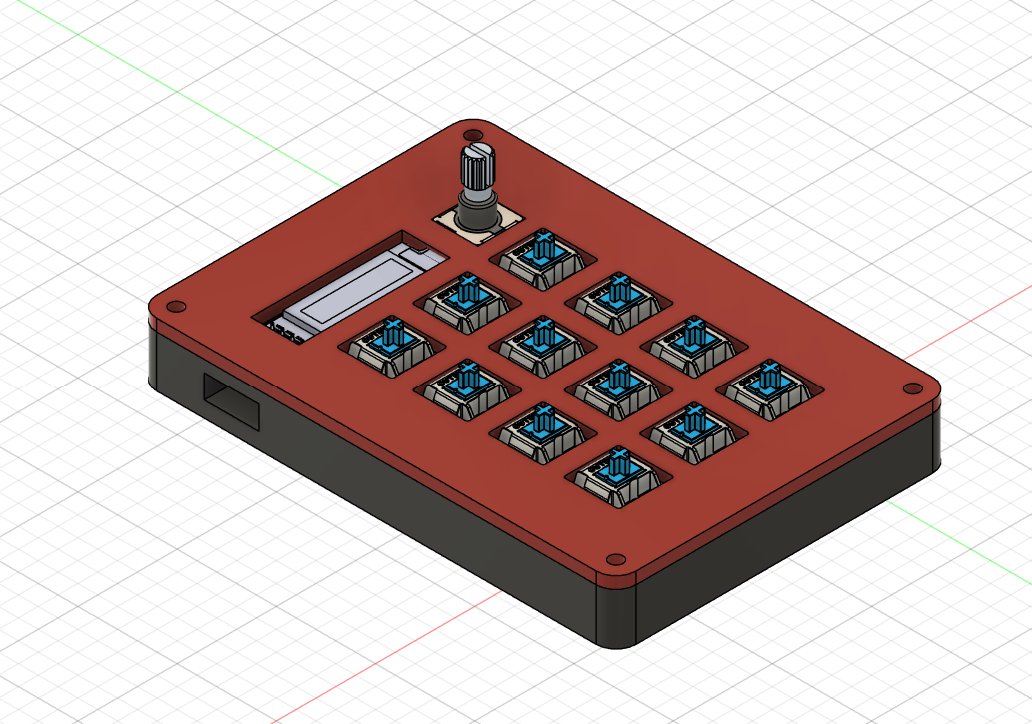

Daedapad, from the project README
From the project README

Main components on the Daedapad

MOUDLE-SEEEDUINO-XIAO

Daedapad bill of materials (BOM)

37 components, 6 distinct parts.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
Conn_01x04_Pin
J1
12
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +4
1
RotaryEncoder_Switch
SW13
13
D
D1, D2, D3, D4, D5, D6, D7, D8 +5
9
SK6812MINI-E
D13, D14, D15, D16, D17, D18, D19, D20 +1

Daedapad design files

The KiCad project lives in the Nauticos/Daedapad repository on GitHub; these links point at the commit this page was built from.

Daedapad: common questions

How big is the Daedapad PCB?

The Daedapad measures 64 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Daedapad?

37 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Daedapad design files?

From the Nauticos/Daedapad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Daedapad design in my own project?

Yes, under the terms of its MIT license, which Nauticos chose for the repository.
