CoreTrace-CT-F401RE

navaneeth-linh·CoreTrace-CT-F401RE

CoreTrace-CT-F401RE PCB layout, top view — open source STM32 board by navaneeth-linh

About the CoreTrace-CT-F401RE PCB

CoreTrace-CT-F401RE is an open source STM32 PCB design by navaneeth-linh, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 33 components from 19 distinct parts.

Its main chip is the STM32F401RE, from the STM32 family. By type, the board carries 15 capacitors, 10 resistors, 1 connector, 1 diode and 1 inductor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

STM32F401RET6 Evaluation Board — Mixed Traces PCB Design Competition 2026 | Team CoreTrace

Reason: The SPDT switch footprint was modified to fix a silkscreen overlap with the board edge cut. The silkscreen of the original footprint extended beyond the PCB boundary causing a DRC violation. The footprint silkscreen was moved inward resulting in a minor library mismatch warning.

Impact: None — footprint is electrically correct and physically accurate. This is a cosmetic library mismatch only.

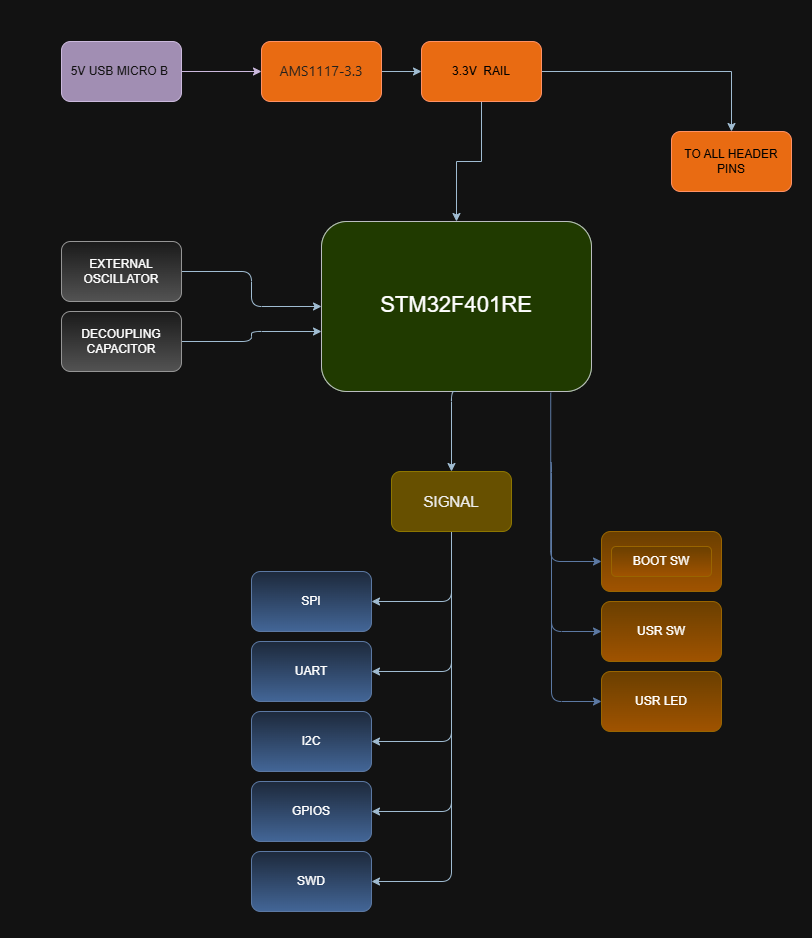

CoreTrace-CT-F401RE, from the project README
From the project README

CoreTrace-CT-F401RE bill of materials (BOM)

33 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SWD
J5
1
8MHz
8MHz
1
AMS1117-3.3
AMS1117-3.3
1
BOOT_SW
BOOT0
1
I2C
I2C
1
STM32F401RE
STM32F401RE
1
YELLOW
D4
1
120R
FB1
2
22UF
22uF
C1, C2
7
100NF
100nF
C3, C6, C7, C8, C9, C10, C11
2
20PF
20pF
C4, C5
2
10NF
10nF
C12, C14
1
2.2UF
2.2uF
C13
1
1UF
1uF
C15
1
1K
R1
2
10K
R2, R6
2
4K7
R3, R4
3
330R
R5, R7, R8
2
22R
R9, R10

CoreTrace-CT-F401RE design files

The KiCad project lives in the navaneeth-linh/CoreTrace-CT-F401RE repository on GitHub; these links point at the commit this page was built from.

CoreTrace-CT-F401RE: common questions

What microcontroller does the CoreTrace-CT-F401RE use?

The CoreTrace-CT-F401RE is built around the STM32F401RE, from the STM32 family.

How big is the CoreTrace-CT-F401RE PCB?

The CoreTrace-CT-F401RE measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CoreTrace-CT-F401RE?

33 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the CoreTrace-CT-F401RE design files?

From the navaneeth-linh/CoreTrace-CT-F401RE repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the CoreTrace-CT-F401RE design in my own project?

The repository has no license, so all rights stay with navaneeth-linh. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the CoreTrace-CT-F401RE without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
