Nixie clock

About the Nixie clock PCB

Nixie clock is an open source PCB design by NazimkovMykola, published on GitHub under the MIT license. It is a board, with 8 components from 7 distinct parts.

By type, the board carries 5 resistors and 3 transistors.

It belongs with the displays & leds and retro computing designs in this gallery.

From the project

Digital Nixie Tube Clock based on IN-14 tubes and Arduino Nano

Перед початком роботи виставити 170В на модулі живлення ламп.

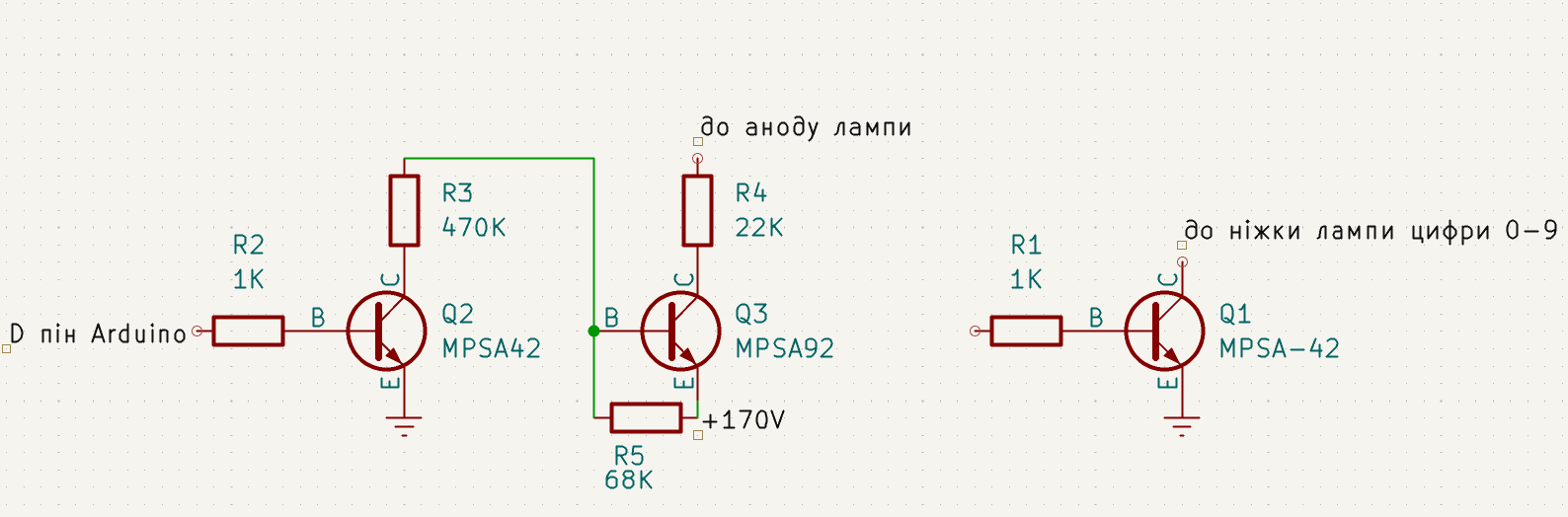

Аноди (Лампи 1-4): Піни D2, D3, D4, D5 (використовуються як цифрові).

1. Спільна шина катодів (Цифри) Усі ваші лампи з'єднані між собою паралельно по цифрах. Масив cathodePins[] містить 10 пінів, що відповідають цифрам від 0 до 9. Якщо подавати сигнал на cathodePins[5], цей сигнал приходить на цифру "5" одразу в усі чотири лампи.

Nixie clock bill of materials (BOM)

8 components, 7 distinct parts.

QtyPartRefs
1
MPSA-42
Q1
1
MPSA42
Q2
1
MPSA92
Q3
2
1K
R1, R2
1
470K
R3
1
22K
R4
1
68К
R5

Nixie clock design files

The KiCad project lives in the NazimkovMykola/nixie-clock repository on GitHub; these links point at the commit this page was built from.

Nixie clock: common questions

How many components are on the Nixie clock?

8 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Nixie clock design files?

From the NazimkovMykola/nixie-clock repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Nixie clock design in my own project?

Yes, under the terms of its MIT license, which NazimkovMykola chose for the repository.
