Titan keyboard
About the Titan keyboard PCB
Titan keyboard is an open source PCB design by nekoewen, published on GitHub under the MIT license. It is a 2-layer board measuring 233.4 × 92.9 mm, with 41 components from 24 distinct parts.
Other key parts include the ProMicro. By type, the board carries 19 switches, 18 diodes, 3 connectors and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

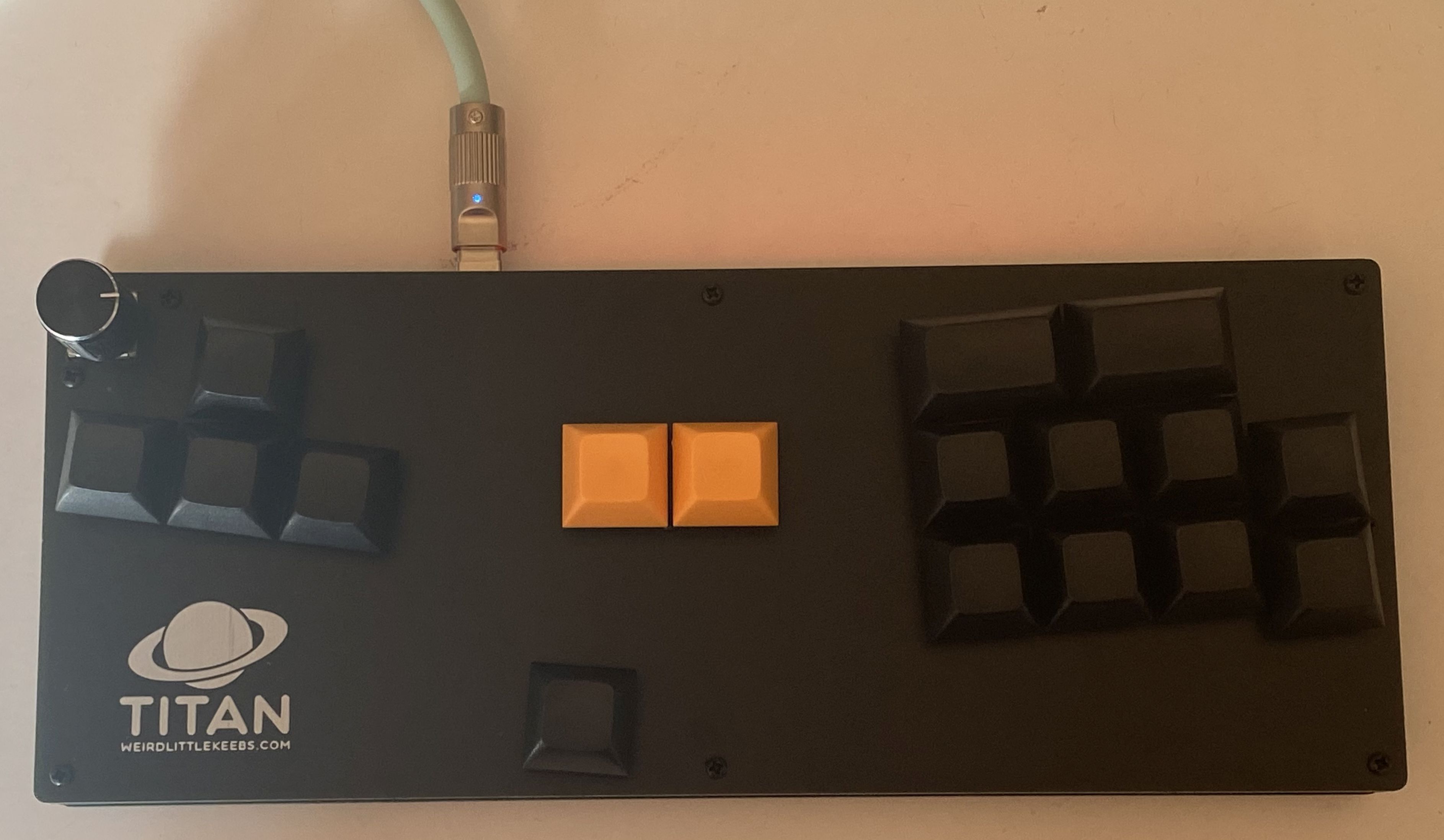

A QMK-powered keyboard for gaming, especially fighting games
If you want to customize the firmware: 1. Copy the “titan” folder from the firmware folder here into the “keyboards” folder of your QMK installation. You can modify the files in this folder as desired. 2. Open a terminal window (for your OS if you’re using macOS or Linux, or QMK MSYS if you’re using Windows). 3. Navigate to the QMK folder (typically cd qmkfirmware). 4. Type “make titan:default” (or replace “default” with the name of your new keymap) and it should compile. 5. Type “make titan:default:flash" (or replace flash with “dfu`”) to flash it.
Main components on the Titan keyboard
Titan keyboard bill of materials (BOM)
41 components, 24 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro Sparkfun | ProMicro | U1 |
| 1 | LED VCC DNP | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | J1 |
| 1 | LED DAT DNP | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | J2 |
| 1 | LED GND DNP | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | J3 |
| 1 | PTS636 SM43 LFS RESET TE Connectivity | 1825965-1 | SW1 |
| 1 | LEFT | CherryMX_Choc_1u | SW2 |
| 1 | UP | CherryMX_Choc_1u | SW3 |
| 1 | EC11E RotaryEncoder_Switch ALPSALPINE | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW4 |
| 1 | DWN | CherryMX_Choc_1u | SW8 |
| 1 | RIGHT | CherryMX_Choc_1u | SW12 |
| 1 | ESC | CherryMX_Choc_1u | SW17 |
| 1 | JUMP | CherryMX_Choc_1u | SW18 |
| 1 | ENT | CherryMX_Choc_1u | SW21 |
| 1 | L1 | CherryMX_Choc_1u | SW25 |
| 1 | X | CherryMX_Choc_1u | SW26 |
| 1 | A | CherryMX_Choc_1u | SW27 |
| 1 | Y | CherryMX_Choc_1u | SW30 |
| 1 | B | CherryMX_Choc_1u | SW31 |
| 1 | R1 | CherryMX_Choc_1u | SW33 |
| 1 | Z | CherryMX_Choc_1u | SW34 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C | CherryMX_Choc_1u | SW35 |
| 1 | L2 | CherryMX_Choc_1u | SW38 |
| 1 | R2 | CherryMX_Choc_1u | SW39 |
| 18 | 1N4148 D onsemi | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D7, D11, D16, D17, D20 +10 |
Titan keyboard design files
The KiCad project lives in the nekoewen/titan-keyboard repository on GitHub; these links point at the commit this page was built from.
Titan keyboard: common questions
How big is the Titan keyboard PCB?
The Titan keyboard measures 233.4 × 92.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Titan keyboard?
41 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Titan keyboard design files?
From the nekoewen/titan-keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Titan keyboard design in my own project?
Yes, under the terms of its MIT license, which nekoewen chose for the repository.
