WIFI Module

NEOgHacking·DMXion_4Port_Node·PCB/WIFI Module/WIFI Module.kicad_pcb

WIFI Module layout, top view — open source board by NEOgHacking

About the WIFI Module

WIFI Module is an open source PCB design by NEOgHacking, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 23 × 13 mm, with 16 components from 10 distinct parts.

Other key parts include the ESP8684. By type, the board carries 10 capacitors, 2 connectors, 1 IC, 1 crystal, 1 inductor and 1 resistor.

It belongs with the iot & wireless, power & battery and displays & leds designs in this gallery.

From the project

A 4 port dmx node with rdm funtionallity. Connects via ARTNET or sACN

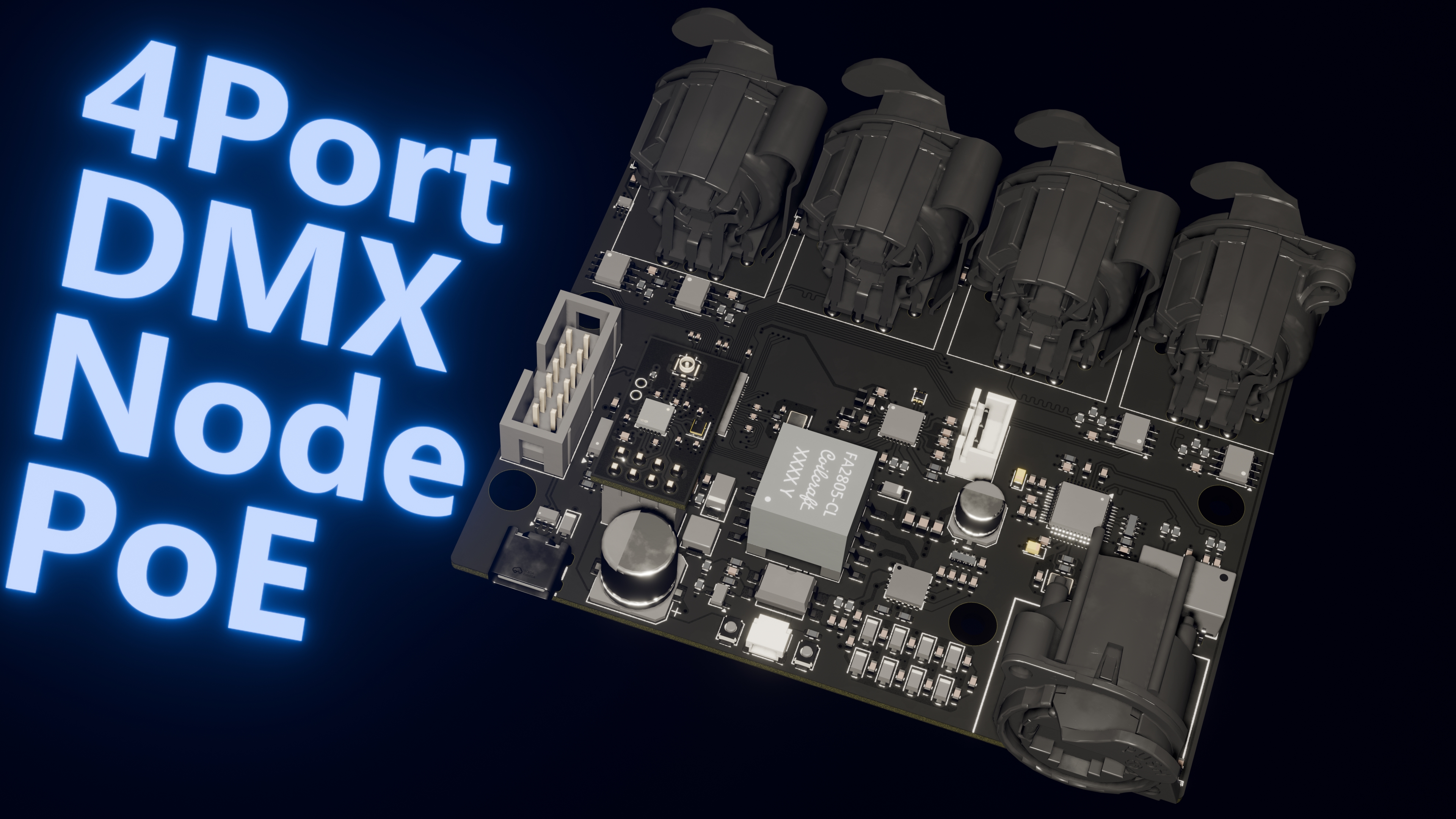

WIFI Module, from the project README
From the project README

Main components on the WIFI Module

ESP8684

WIFI Module bill of materials (BOM)

16 components, 10 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP8684
U1
1
Q22FA12800230
Y1
1
CONN_01X01_SHIELDED
Conn_01x01_Shielded
J1
1
CONN_02X04
Conn_02x04
J2
1
2n
L1
1
10U
10u
C1
5
100N
100n
C2, C3, C4, C5, C6
2
3p
C7, C8
2
14P
14p
C9, C10
1
10K
10k
R1

WIFI Module design files

The KiCad project lives in the NEOgHacking/DMXion_4Port_Node repository on GitHub; these links point at the commit this page was built from.

WIFI Module: common questions

How big is the WIFI Module?

The WIFI Module measures 23 × 13 mm, has 4 copper layers and is 1.565 mm thick.

How many components are on the WIFI Module?

16 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the WIFI Module design files?

From the NEOgHacking/DMXion_4Port_Node repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the WIFI Module design in my own project?

Yes, under the terms of its GPL-3.0 license, which NEOgHacking chose for the repository.
