Epaper-102
About the Epaper-102 PCB
Epaper-102 is an open source PCB design by Nicell, published on GitHub under the MIT license. It is a 2-layer board measuring 19.6 × 38.6 mm, with 20 components from 7 distinct parts.
By type, the board carries 17 capacitors, 2 connectors and 1 diode.
It belongs with the displays & leds designs in this gallery.
From the project

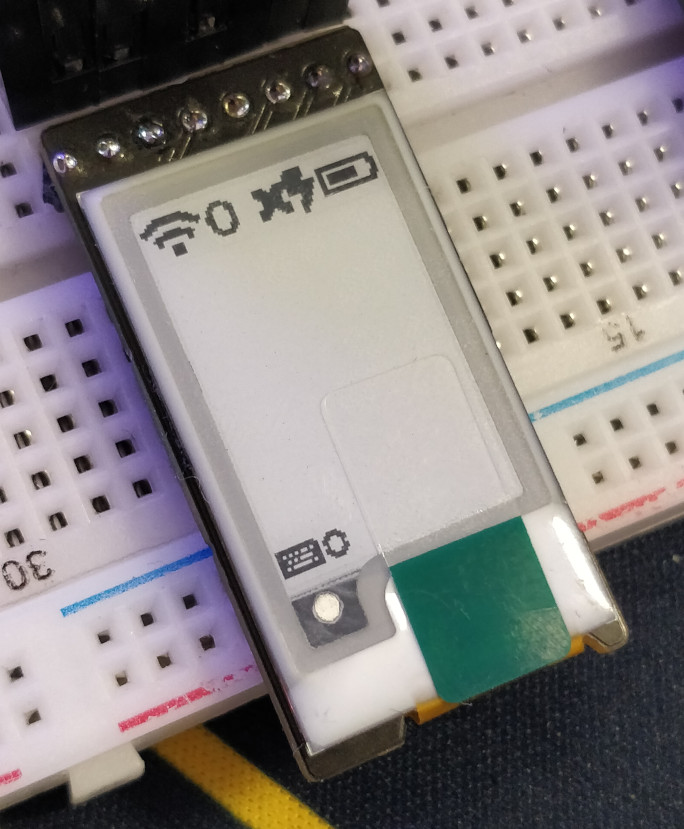

Display module for the Good Display or Waveshare 1.02 inch e-ink display
This is an open-source e-ink or e-paper display module that's only 19.5mm x 38.5mm.
This module is made for the Good Display GDEW0102T4 1.02 inch e-ink display, which Waveshare resells. This is a slimmed down version of the Waveshare module without the logic translation circuitry, which means this must be run at 3.3V.
This module is ready to be (almost fully) assembled. You'll need three files, gerbers.zip, epaper-102-bom.csv, and epaper-102-bottom-pos.xlsx.
Epaper-102 bill of materials (BOM)
20 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x30_Female | Hirose_FH12-30S-0.5SH_1x30-1MP_P0.50mm_Horizontal | J1 |
| 1 | Conn_01x08_Female | PinHeader_1x08_P2.54mm_Vertical | J2 |
| 1 | D | D_SOD-123 | D1 |
| 1 | 4.7uF | C_0402_1005Metric | C1 |
| 12 | 1uF | C_0402_1005Metric | C2, C3, C4, C5, C6, C7, C8, C9 +4 |
| 2 | 2.2uF | C_0603_1608Metric | C12, C14 |
| 2 | .1uF | C_0402_1005Metric | C16, C17 |
Epaper-102 design files
The KiCad project lives in the Nicell/epaper-102 repository on GitHub; these links point at the commit this page was built from.
Epaper-102: common questions
How big is the Epaper-102 PCB?
The Epaper-102 measures 19.6 × 38.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Epaper-102?
20 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Epaper-102 design files?
From the Nicell/epaper-102 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Epaper-102 design in my own project?
Yes, under the terms of its MIT license, which Nicell chose for the repository.
