MORPH.00 PCB layout, top view — open source board by nirvaankohli

About the MORPH.00 PCB

MORPH.00 is an open source PCB design by nirvaankohli, published on GitHub. It is a 2-layer board measuring 222.5 × 97.5 mm, with 15 components from 6 distinct parts.

By type, the board carries 7 switches, 4 resistors, 2 capacitors, 1 IC and 1 LED.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

6 button + a Knob macropad with a screen panel above it. Its entire function changes depending on the app opened.

MORPH.00 is a keyboard with 6 key switches and a rotary encoder that can change(morph their function). It also has an OLED to display each key or encoder's function at any given time. It is powered by the RP2040!

When I initially found about fallout, I knew it was an one in a lifetime opportunity. I also knew that I did not know anything about hardware. So I looked online and on youtube and decided that a macropad was perfect for me. After a few days of brainstorming, I decided to settle for the best balance between challenging and easy(this project). Also it was pretty cool, cus like who…

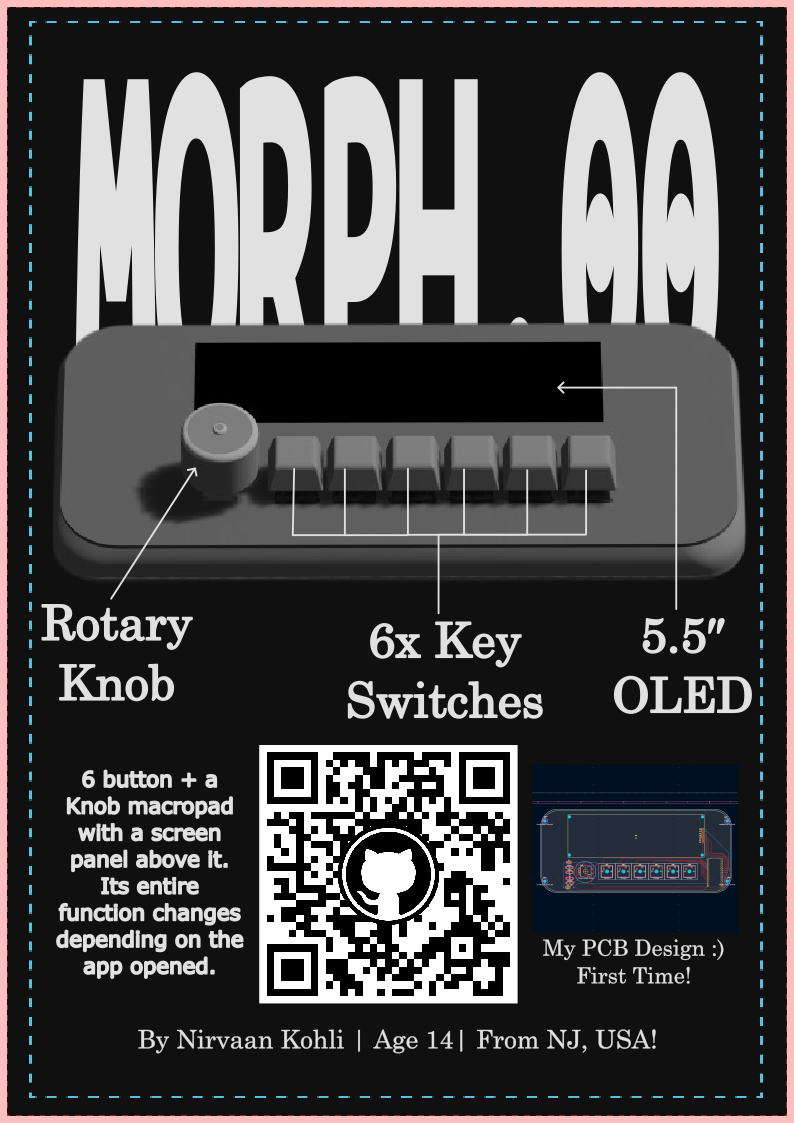

MORPH.00, from the project README
From the project README

MORPH.00 bill of materials (BOM)

15 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
~
U1
6
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6
1
Rotary Encoder Switch
SW8
1
~
DS1
2
C
C1, C2
4
Resistor
R1, R2, R3, R4

MORPH.00 design files

The KiCad project lives in the nirvaankohli/MORPH.00 repository on GitHub; these links point at the commit this page was built from.

MORPH.00: common questions

How big is the MORPH.00 PCB?

The MORPH.00 measures 222.5 × 97.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MORPH.00?

15 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MORPH.00 design files?

From the nirvaankohli/MORPH.00 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MORPH.00 design in my own project?

The repository has no license, so all rights stay with nirvaankohli. Use it as a reference, and ask the author before reusing the design.
