Contact-Monitor-Board is an open source PCB design by niwa-yamaguchi, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 100 × 100 mm, with 80 components from 14 distinct parts.
Other key parts include the 74HC4017D, TLC555CD and TPS61222DCK. By type, the board carries 19 resistors, 17 diodes, 16 transistors, 16 connectors, 6 capacitors and 3 ICs.
From the project
16 チャンネルの無電圧接点（ドライコンタクト）モニタ基板です。 リミットスイッチ・押しボタン・リレー接点などの ON/OFF を、単 4 電池 1 本だけで 16 点同時に LED 表示します。
16 チャンネルの無電圧接点（ドライコンタクト）モニタ基板です。 リミットスイッチ・押しボタン・リレー接点などの ON/OFF を、単 4 電池 1 本だけで 16 点同時に LED 表示します。
装置の配線チェックや、盤内の接点動作確認を電源レスで行うための道具として設計しています。
- 基板サイズ: 100 × 100 mm / 2 層 - 電源: 単 4 電池 × 1（1.5 V）→ 昇圧 5 V - 設計環境: KiCad 9
回路図は Contact-Monitor-Board.pdf でも閲覧できます（KiCad は不要です）。

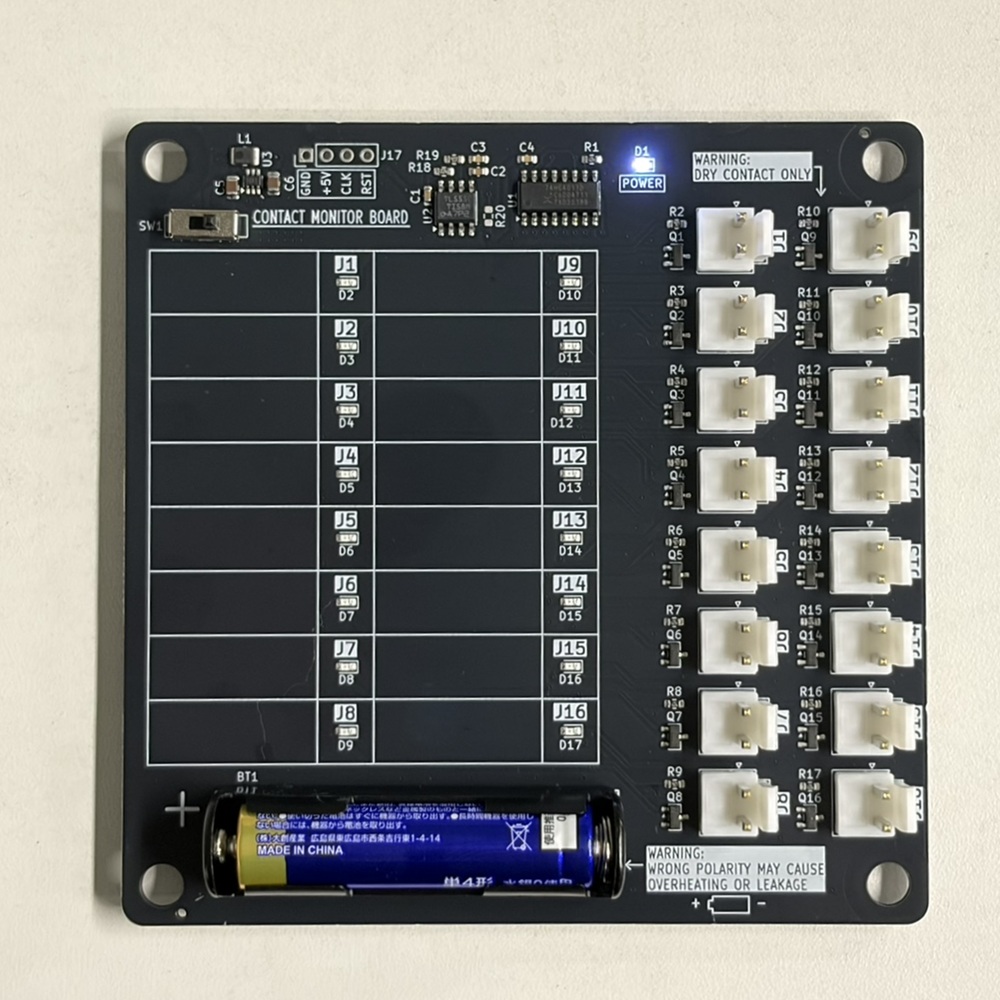

表面は左上に電源部と観測用ヘッダ J17、下部に単 4 電池ホルダ（BT1）、右側に 2 列 × 8 の接点入力コネクタ（J1〜J16）を配置しています。各コネクタの脇に表示 LED があり、コネクタ番号と LED のリファレンスをシルク印字しています。写真は電源 ON の状態で、右上の電源表示 LED（D1）が点灯しています。中央の枠はチャンネル名を書き込めるラベル欄です。
Main components on the Contact-Monitor-Board
Contact-Monitor-Board bill of materials (BOM)
80 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74HC4017D | SO-16_3.9x9.9mm_P1.27mm | U1 |
| 1 | TLC555CD | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | TPS61222DCK | Texas_R-PDSO-G6 | U3 |
| 16 | 2N7002 | SOT-23 | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +8 |
| 16 | C160315 JST VH 02 | JST_VH_B2P-VH_1x02_P3.96mm_Vertical | J1, J2, J3, J4, J5, J6, J7, J8 +8 |
| 1 | BH-AAA-A1AJ001 | BH-AAA-A1AJ001 | BT1 |
| 1 | KH-SS12D01-G3-5.0 | SW_Slide-03_Wuerth-WS-SLTV_10x2.5x6.4_P2.54mm | SW1 |
| 17 | LED | LED_0603_1608Metric | D1, D2, D3, D4, D5, D6, D7, D8 +9 |
| 1 | 4.7U 4.7u | L_1008_2520Metric | L1 |
| 3 | 100N 100n | C_0603_1608Metric | C1, C3, C4 |
| 1 | 10N 10n | C_0603_1608Metric | C2 |
| 2 | 10UF 10uF | C_0805_2012Metric | C5, C6 |
| 17 | 470 | R_0603_1608Metric | R1, R2, R3, R4, R5, R6, R7, R8 +9 |
| 2 | 4.7K 4.7k | R_0603_1608Metric | R18, R19 |
