Card v0.1

northernpaws·catalina·hardware/boards/card/v0.1/card_v0.1.kicad_pcb

Card v0.1 PCB layout, top view — open source STM32 board by northernpaws

About the Card v0.1 PCB

Card v0.1 is an open source STM32 PCB design by northernpaws, published on GitHub under the CERN-OHL-S-2.0 license. It is a 6-layer board measuring 67.6 × 35.4 mm, with 189 components from 43 distinct parts.

Its main chip is the STM32H747XIHx, from the STM32 family. Other key parts include the IS42S16160J-7BLI, CS42528K-CQZ and NJM4580E-TE1. By type, the board carries 86 resistors, 82 capacitors, 10 ICs, 9 connectors and 2 crystals.

It belongs with the audio and dev boards & breakouts designs in this gallery.

From the project

Embedded Rust hardware and software ecosystem for audio and MIDI processing.

Catalina is an embedded-first Rust ecosystem for building music and audio processing devices, with a primary focus on ARM Cortex MCUs as the end-target.

The ecosystem is comprised of: A Rust crate providing a DSP and audio engine designed for embedded devices (heapless by default, small footprint). Various composable interfaces for quickly prototyping new instruments. Drivers for common audio codecs, SDRAM, etc. Windows, MacOS, and Linux support for developing audio chains before flashing to hardware. Future web interface for synth design, with WebUSB for direct device flashing. Two base…

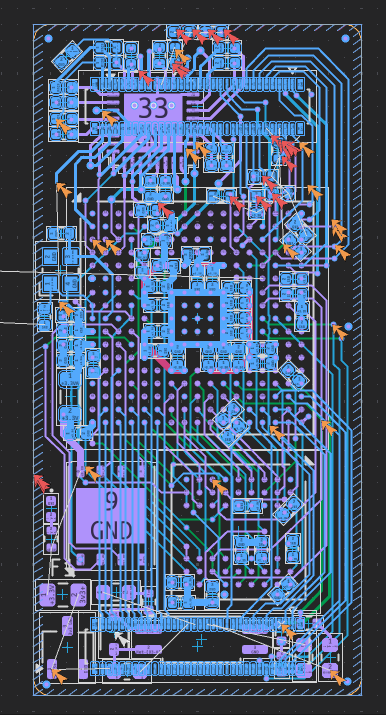

Card v0.1, from the project README
From the project README

Main components on the Card v0.1

IS42S16160J-7BLICS42528K-CQZSTM32H747XIHxNJM4580E-TE1

Card v0.1 bill of materials (BOM)

189 components, 43 distinct parts.

QtyPartRefs
2
IS42S16160J-7BLI
IC1, IC2
1
CS42528K-CQZ
U1
1
STM32H747XIHx
U2
6
NJM4580E-TE1
U3, U4, U5, U6, U7, U8
2
Crystal
Y1, Y2
1
SODIMM-200
J1
1
USB_HOST
J2
1
USB_DEVICE
J3
1
SD_CARD
J4
1
DEBUG
J5
1
SPI
J6
1
UART4
J7
1
Conn_01x16_Pin
J8
1
AUDIO_IN
J9
14
100nF
C1, C2, C3, C4, C5, C6, C7, C8 +6
2
2n7 C0G
C15, C26
4
470pF C0G
C16, C17, C23, C25
8
1n8 C0G
C18, C33, C39, C41, C51, C53, C63, C65
8
5n8 C0G
C19, C34, C40, C42, C52, C54, C64, C66
2
0.1uF X7R
C20, C22
Show 23 more
QtyPartRefs
2
4.7uF X7R
C21, C29
8
390pF C0G
C24, C37, C47, C48, C59, C60, C71, C72
2
2n2 FILM
C27, C28
16
47uF X5R
C30, C32, C35, C38, C43, C44, C49, C50 +8
8
1n2 C0G
C31, C36, C45, C46, C57, C58, C69, C70
4
100nF X5R
C75, C76, C77, C78
2
0.1uF
C81, C83
1
4.7uF
C82
1
100uF
C84
4
91R
R1, R4, R18, R20
6
634R
R2, R3, R5, R15, R17, R19
2
332R
R6, R16
6
10k
R7, R8, R11, R12, R85, R86
2
2.8k
R9, R13
2
3.32k
R10, R14
8
2k94
R21, R32, R42, R46, R58, R62, R74, R78
8
5k49
R22, R29, R37, R39, R53, R55, R69, R71
8
1k65
R23, R30, R38, R40, R54, R56, R70, R72
8
887R
R24, R33, R43, R47, R59, R63, R75, R79
8
6k19
R25, R31, R41, R45, R57, R61, R73, R77
8
1k87
R26, R34, R44, R48, R60, R64, R76, R80
8
1k
R27, R35, R49, R50, R65, R66, R81, R82
8
47k5
R28, R36, R51, R52, R67, R68, R83, R84

Card v0.1 design files

The KiCad project lives in the northernpaws/catalina repository on GitHub; these links point at the commit this page was built from.

Card v0.1: common questions

What microcontroller does the Card v0.1 use?

The Card v0.1 is built around the STM32H747XIHx, from the STM32 family.

How big is the Card v0.1 PCB?

The Card v0.1 measures 67.6 × 35.4 mm, has 6 copper layers and is 1 mm thick.

How many components are on the Card v0.1?

189 components, from 43 distinct parts. The full bill of materials is listed on this page.

Where can I download the Card v0.1 design files?

From the northernpaws/catalina repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Card v0.1 design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which northernpaws chose for the repository.

Can I test firmware for the Card v0.1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
