Hackpad PCB layout, top view — open source board by nouxinf

About the Hackpad PCB

Hackpad is an open source PCB design by nouxinf, published on GitHub under the MIT license. It is a 2-layer board measuring 67.1 × 78.7 mm, with 9 components from 3 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 7 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

This is my submission for the hackpad mission! This is my first time using KiCad and Autodesk Fusion so I'm not very experienced. Decided to make this because I wanted to make some automation easier, as it binds the keys to F13-19, which are unused usually.

This is my submission for the hackpad mission! This is my first time using KiCad and Autodesk Fusion so I'm not very experienced. Decided to make this because I wanted to make some automation easier, as it binds the keys to F13-19, which are unused usually.

It also includes a bongo cat animation, that activates when you press any key on the macropad. Code is from github over here.

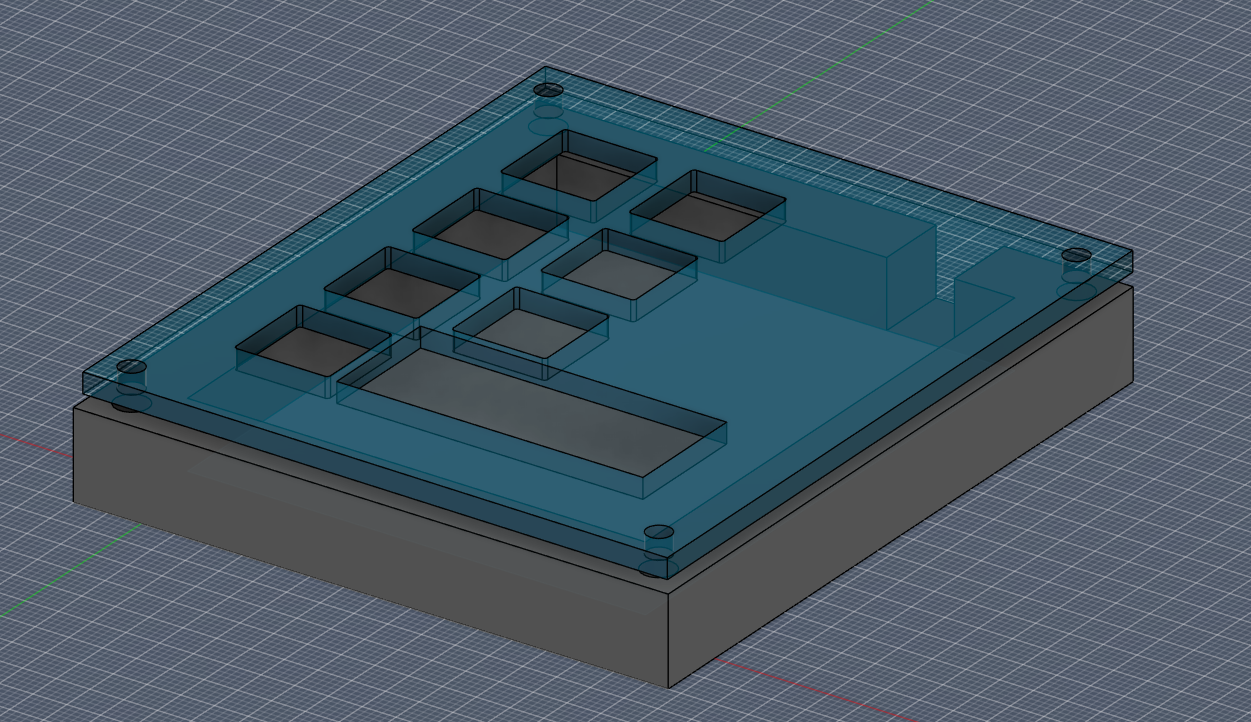

Hackpad, from the project README
From the project README

Main components on the Hackpad

MOUDLE-SEEEDUINO-XIAO

Hackpad bill of materials (BOM)

9 components, 3 distinct parts.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
Conn_01x04
J1
7
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7

Hackpad design files

The KiCad project lives in the nouxinf/hackpad repository on GitHub; these links point at the commit this page was built from.

Hackpad: common questions

How big is the Hackpad PCB?

The Hackpad measures 67.1 × 78.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hackpad?

9 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Hackpad design files?

From the nouxinf/hackpad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Hackpad design in my own project?

Yes, under the terms of its MIT license, which nouxinf chose for the repository.
