BombaAirsoft-ARDUINO
About the BombaAirsoft-ARDUINO PCB
BombaAirsoft-ARDUINO is an open source PCB design by ObiOscar, published on GitHub. It is a board, with 32 components from 24 distinct parts.
Other key parts include the + -, INTERRRUPTOR, LED RGB, CONECTOR_ARDUINO-IOREF-VIN and PANTALLA_I2C. By type, the board carries 18 ICs, 9 resistors, 2 diodes, 2 capacitors and 1 transistor.
From the project

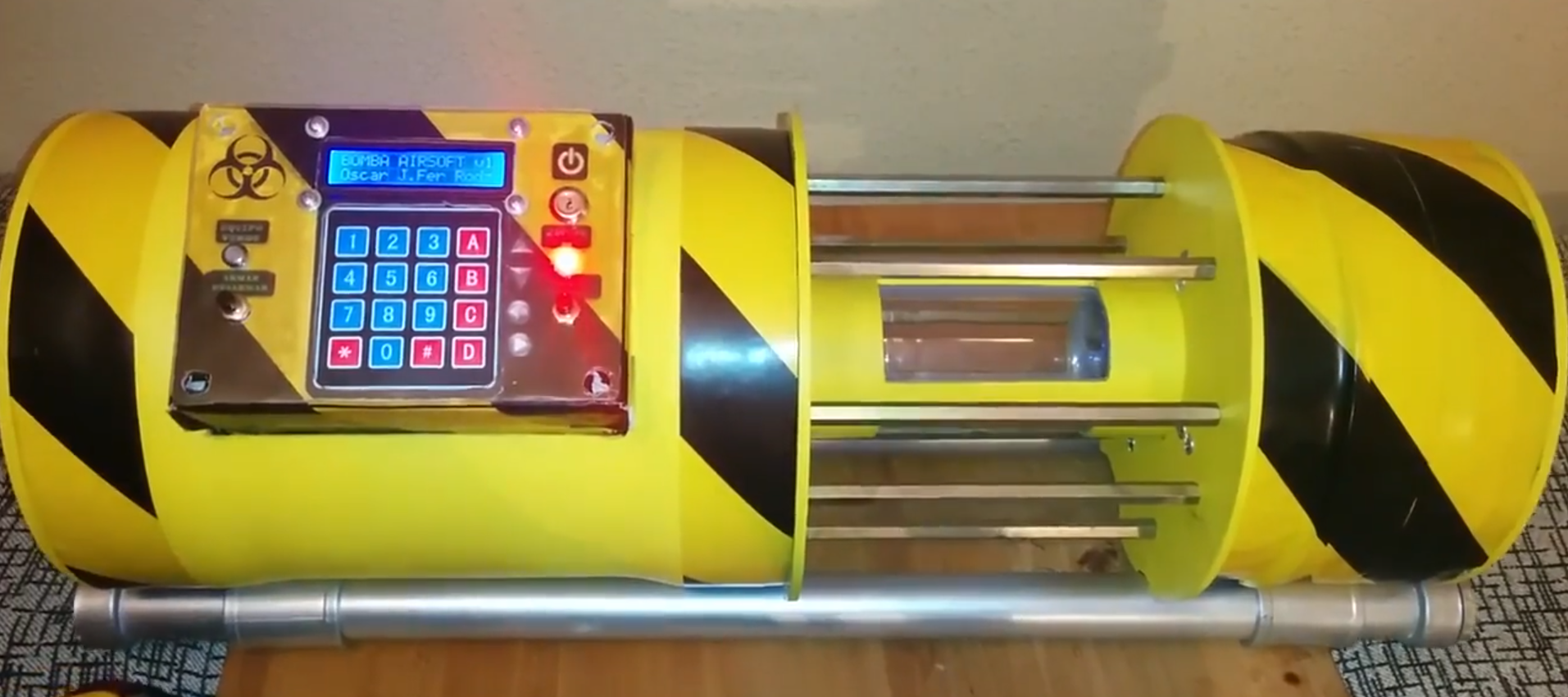

Proyecto desarrollado en Arduino, es una Bomba Airsoft
Main components on the BombaAirsoft-ARDUINO
BombaAirsoft-ARDUINO bill of materials (BOM)
32 components, 24 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | + - | TerminalBlock_Pheonix_MKDS1.5-2pol | U1 |
| 1 | INTERRRUPTOR | Molex_KK-6410-02_02x2.54mm_Straight | U2 |
| 1 | LED RGB | Molex_KK-6410-04_04x2.54mm_Straight | U3 |
| 1 | CONECTOR_ARDUINO-IOREF-VIN | Pin_Header_Straight_1x08 | U4 |
| 1 | PANTALLA_I2C | Molex_KK-6410-04_04x2.54mm_Straight | U5 |
| 1 | MOTOR | Molex_KK-6410-02_02x2.54mm_Straight | U6 |
| 1 | CONECTOR_ARDUINO-A0-A5 | Pin_Header_Straight_1x06 | U7 |
| 1 | LED VERDE | Molex_KK-6410-02_02x2.54mm_Straight | U8 |
| 1 | MODULO_FM_PT2272-M4 | Socket_Strip_Straight_1x07 | U9 |
| 1 | LED ROJO | Molex_KK-6410-02_02x2.54mm_Straight | U10 |
| 1 | SONIDO | Molex_KK-6410-02_02x2.54mm_Straight | U11 |
| 1 | CONECTOR_ARDUINO-SCL-8 | Pin_Header_Straight_1x10 | U12 |
| 1 | PULSADOR VERDE | Molex_KK-6410-02_02x2.54mm_Straight | U13 |
| 1 | TECLADO1 | Molex_KK-6410-08_08x2.54mm_Straight | U15 |
| 1 | CONECTOR_ARDUINO-7-0_RX | Pin_Header_Straight_1x08 | U16 |
| 1 | LM7805CT | TO-220 | U17 |
| 1 | PULSADOR ROJO | Molex_KK-6410-02_02x2.54mm_Straight | U18 |
| 1 | BLUETOOTH_HC-06 | Socket_Strip_Straight_1x04 | U19 |
| 1 | NPN | TO-92_Inline_Narrow_Oval | Q1 |
| 2 | DIODE | Diode_DO-35_SOD27_Horizontal_RM10 | D1, D2 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 100nF | C_Disc_D3_P2.5 | C1, C2 |
| 4 | 10K | Resistor_Horizontal_RM10mm | R1, R2, R3, R4 |
| 4 | 470 | Resistor_Horizontal_RM10mm | R5, R6, R7, R8 |
| 1 | 1k | Resistor_Horizontal_RM10mm | R9 |
BombaAirsoft-ARDUINO design files
The KiCad project lives in the ObiOscar/BombaAirsoft-ARDUINO repository on GitHub; these links point at the commit this page was built from.
BombaAirsoft-ARDUINO: common questions
How many components are on the BombaAirsoft-ARDUINO?
32 components, from 24 distinct parts. The full bill of materials is listed on this page.
Where can I download the BombaAirsoft-ARDUINO design files?
From the ObiOscar/BombaAirsoft-ARDUINO repository on GitHub, which has the schematic and a netlist; the links under Design files point to each one.
Can I use the BombaAirsoft-ARDUINO design in my own project?
The repository has no license, so all rights stay with ObiOscar. Use it as a reference, and ask the author before reusing the design.
