LED-Strip-Giant-7-Segment-Display PCB layout, top view — open source board by octaprog7

About the LED-Strip-Giant-7-Segment-Display PCB

LED-Strip-Giant-7-Segment-Display is an open source PCB design by octaprog7, published on GitHub under the MIT license. It is a 2-layer board measuring 65 × 145 mm, with 10 components from 4 distinct parts.

By type, the board carries 7 speakers, 1 crystal, 1 diode and 1 resistor.

It belongs with the displays & leds designs in this gallery.

From the project

DIY giant 7‑segment display made from green COB LED strips on perfboard (145×65 mm digit, 5 V, 90 mA per segment).

This project describes a simple DIY giant 7‑segment display built from low‑cost LED strips and perfboard. The goal is to get a large, clearly visible digit with minimal components and manufacturing effort.

- Supply voltage: 5 V - Segment current: 90 mA (green COB LED strip) - Digit size: 145 × 65 mm (overall dimensions of one segment digit)

- Each segment is a piece of green COB LED strip, 50 × 8 mm in size, mounted on double‑sided adhesive tape. - The COB (Chip‑on‑Board) technology places many LED chips very close together and encapsulates them in a single layer of compound, producing a…

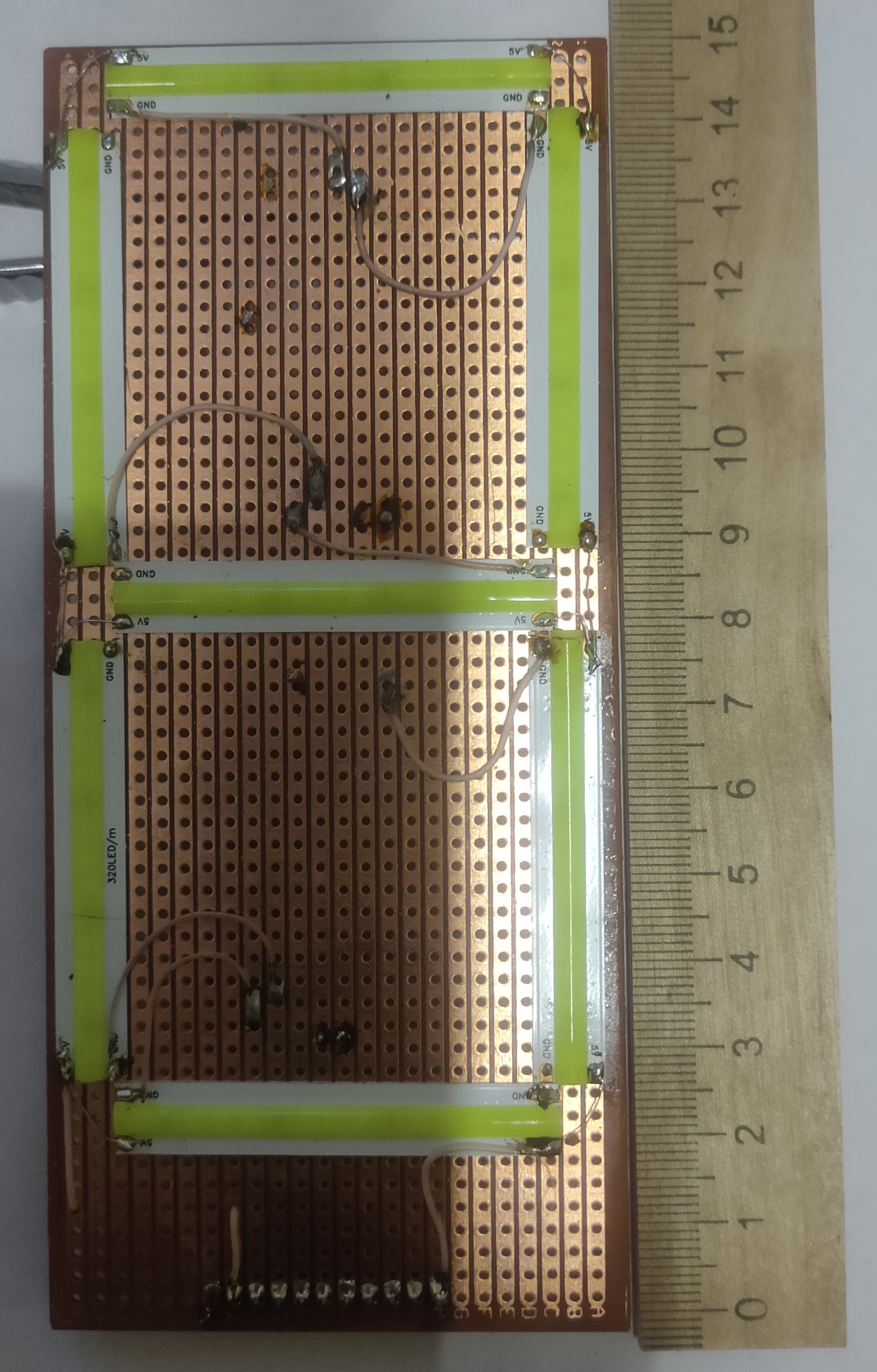

LED-Strip-Giant-7-Segment-Display, from the project README
From the project README

LED-Strip-Giant-7-Segment-Display bill of materials (BOM)

10 components, 4 distinct parts.

QtyPartRefs
1
PLS-10
X1
7
~
LS1, LS2, LS3, LS4, LS5, LS6, LS7
1
~
D1
1
ххх R
R1

LED-Strip-Giant-7-Segment-Display design files

The KiCad project lives in the octaprog7/LED-Strip-Giant-7-Segment-Display repository on GitHub; these links point at the commit this page was built from.

LED-Strip-Giant-7-Segment-Display: common questions

How big is the LED-Strip-Giant-7-Segment-Display PCB?

The LED-Strip-Giant-7-Segment-Display measures 65 × 145 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LED-Strip-Giant-7-Segment-Display?

10 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the LED-Strip-Giant-7-Segment-Display design files?

From the octaprog7/LED-Strip-Giant-7-Segment-Display repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the LED-Strip-Giant-7-Segment-Display design in my own project?

Yes, under the terms of its MIT license, which octaprog7 chose for the repository.
