Power PCB layout, top view — open source AVR/Arduino board by Olin-Rocketry

About the Power PCB

Power is an open source AVR/Arduino PCB design by Olin-Rocketry, published on GitHub. It is a 2-layer board measuring 66.1 × 84.5 mm, with 64 components from 28 distinct parts.

Its main chip is the ATMEGA16M1, from the AVR/Arduino family. Other key parts include the TPS2592XX and LP5907MFX-3_3_NOPB. By type, the board carries 21 resistors, 10 connectors, 6 transistors, 5 diodes, 4 capacitors and 3 ICs.

It belongs with the power & battery and rf & radio designs in this gallery.

From the project

Battery Management System

(Live Power Budget Sheet)[https://docs.google.com/spreadsheets/d/1nH3F-o1HZTds1WetEKFTd1lCUxuCh-wOJmA-jhke28s/edit?usp=sharing]

Design Review 1: Initial design validation for cell balancing, charging, and discharging *12/2019

Design Review 2: Process design review touching on integration of ATMEGA, safety switches, and voltage distribution/regulation *12/2020

For ordering the boards, go to JLCPCB.com, and click on "Quote Now" button.

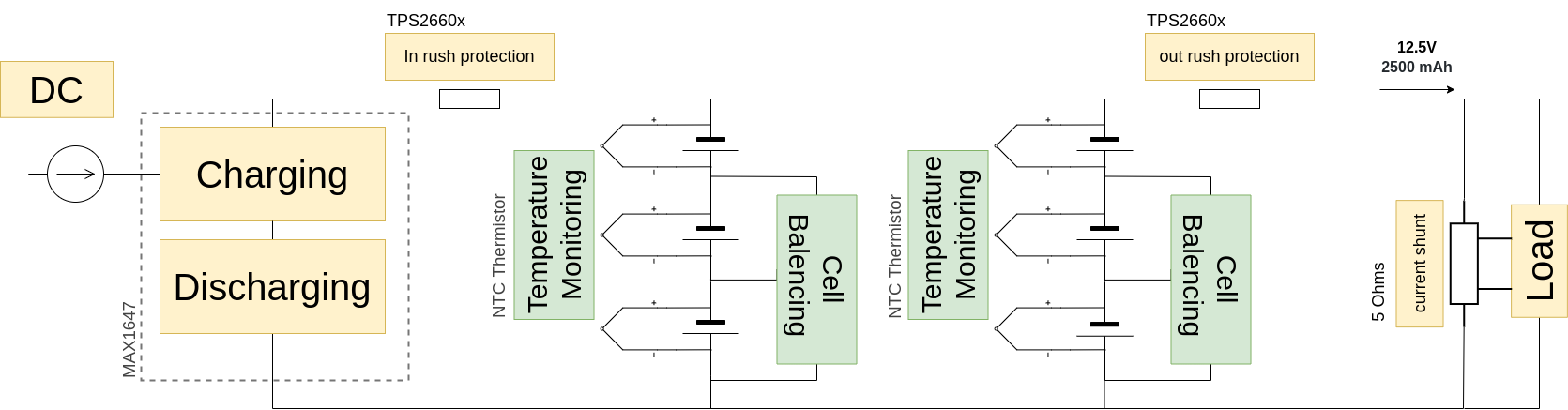

Power, from the project README
From the project README

Main components on the Power

ATMEGA16M1TPS2592XXLP5907MFX-3_3_NOPB

Power bill of materials (BOM)

64 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA16M1
U1
1
TPS2592XX
TPS2592xx
U2
1
LP5907MFX-3_3_NOPB
U3
6
BS170
Q1, Q2, Q3, Q4, Q5, Q6
6
CONN_01X02_FEMALE
Conn_01x02_Female
J1, J3, J4, J6, J7, J8
1
Barrel_jack
J2
1
CONN_02X03
J5
1
MM_F_RA_08
J9
1
CONN_01X03_MALE
Conn_01x03_Male
J15
2
SS110LW
FlySol1, FlySol2
1
01530008Z
HFuse1
6
Thermistor
TH1, TH2, TH3, TH4, TH5, TH6
2
OSTTC03
sol1, sol2
2
NMOS_CDS16
tres1sol1, tres1sol2
2
LED_0805
BLED1, HFLED1
2
D_Shockley
D1, D2
1
D_ZENER_13V
D_Zener_13V
D3
1
LED_0805_RED
LED_0805_Red
D4
1
LED_0805_AMBER
LED_0805_Amber
D5
1
0.1UF
0.1uF
C1
Show 8 more
QtyPartRefs
3
1UF
1uF
C2, C3, C4
6
100
R1, R2, R3, R7, R8, R9
6
1.5K
R4, R5, R6, R10, R11, R12
1
133
R13
1
20
R14
1
115K
R15
4
R_499
R16, R17, R20, R21
2
R_1K
R18, R19

Power design files

The KiCad project lives in the Olin-Rocketry/power repository on GitHub; these links point at the commit this page was built from.

Power: common questions

What microcontroller does the Power use?

The Power is built around the ATMEGA16M1, from the AVR/Arduino family.

How big is the Power PCB?

The Power measures 66.1 × 84.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Power?

64 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Power design files?

From the Olin-Rocketry/power repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Power design in my own project?

The repository has no license, so all rights stay with Olin-Rocketry. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Power without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
