High-Current-Sourcing-Sine-Wave-Generator
About the High-Current-Sourcing-Sine-Wave-Generator PCB
High-Current-Sourcing-Sine-Wave-Generator is an open source PCB design by omkar-nitsure, published on GitHub. It is a 2-layer board measuring 121.6 × 63.7 mm, with 40 components from 15 distinct parts.
Other key parts include the 2ED020I12-FI. By type, the board carries 14 capacitors, 10 resistors, 6 connectors, 4 transistors, 2 ICs and 2 diodes.
It belongs with the audio and displays & leds designs in this gallery.

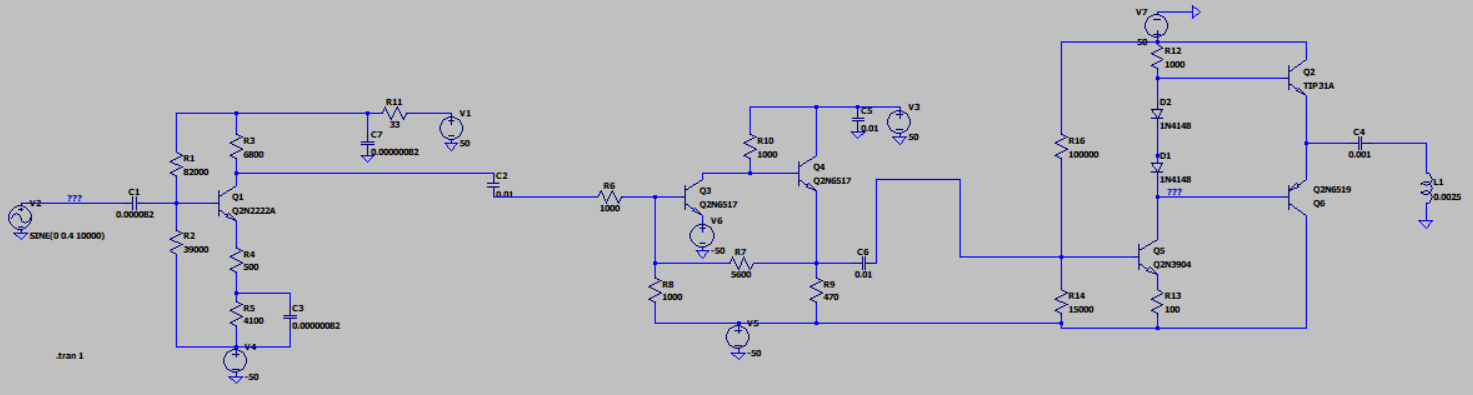

From the project
We designed a High current sourcing sine wave generator capable of generating sine waves of amplitudes upto 30V and currents of upto 3A completely from scratch
1. Omkar Nitsure - 210070057 2. Ojas Karanjkar - 210070040 3. Kushal Gajbe - 210070048 4. Vaibhav Garg - 21d070085 Github Link - All files and code Contents
Magnetic Materials are used in many application and in many different equipment for their special properties. But before using them, we need to have in-depth knowledge of their characteristics. This requires performing BH characterization. In BH characterization, we need to apply a sinusoidal voltage of varying amplitude and frequency across the magnetic material and check for the current it draws. Then the current and voltage…
Main components on the High-Current-Sourcing-Sine-Wave-Generator
High-Current-Sourcing-Sine-Wave-Generator bill of materials (BOM)
40 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 2ED020I12-FI | PG-DSO-18-2_INF | U1, U2 |
| 4 | IRF840 | TO-220-1 | Q1, Q2, Q3, Q4 |
| 2 | Conn_02x19_Odd_Even | PinSocket_2x19_P2.54mm_Vertical | CN7, CN10 |
| 2 | Conn_01x02 | PinSocket_1x02_P2.54mm_Vertical | J1, J3 |
| 2 | Screw_Terminal_01x02 | TerminalBlock_Altech_AK300-2_P5.00mm | J2, J4 |
| 1 | Conn_01x16 | PinSocket_1x16_P2.54mm_Vertical | LCD1 |
| 1 | 1k | Potentiometer_Bourns_3386X_Horizontal | RV1 |
| 2 | 1N5822 | D_DO-201AD_P15.24mm_Horizontal | D1, D2 |
| 1 | 470u | CP_Radial_D10.0mm_P5.00mm | C1 |
| 6 | 20p | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2, C3, C6, C7, C10, C11 |
| 5 | 470n | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C5, C12, C13, C14, C15 |
| 2 | 470p | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C8, C9 |
| 2 | 47 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R3 |
| 2 | 330 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2, R4 |
| 6 | 10 | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal | R5, R6, R7, R8, R9, R10 |
High-Current-Sourcing-Sine-Wave-Generator design files
The KiCad project lives in the omkar-nitsure/High-Current-Sourcing-Sine-Wave-Generator repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB_Files/small_pcb.kicad_pcb
- SchematicPCB_Files/small_pcb.kicad_sch
High-Current-Sourcing-Sine-Wave-Generator: common questions
How big is the High-Current-Sourcing-Sine-Wave-Generator PCB?
The High-Current-Sourcing-Sine-Wave-Generator measures 121.6 × 63.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the High-Current-Sourcing-Sine-Wave-Generator?
40 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the High-Current-Sourcing-Sine-Wave-Generator design files?
From the omkar-nitsure/High-Current-Sourcing-Sine-Wave-Generator repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the High-Current-Sourcing-Sine-Wave-Generator design in my own project?
The repository has no license, so all rights stay with omkar-nitsure. Use it as a reference, and ask the author before reusing the design.
