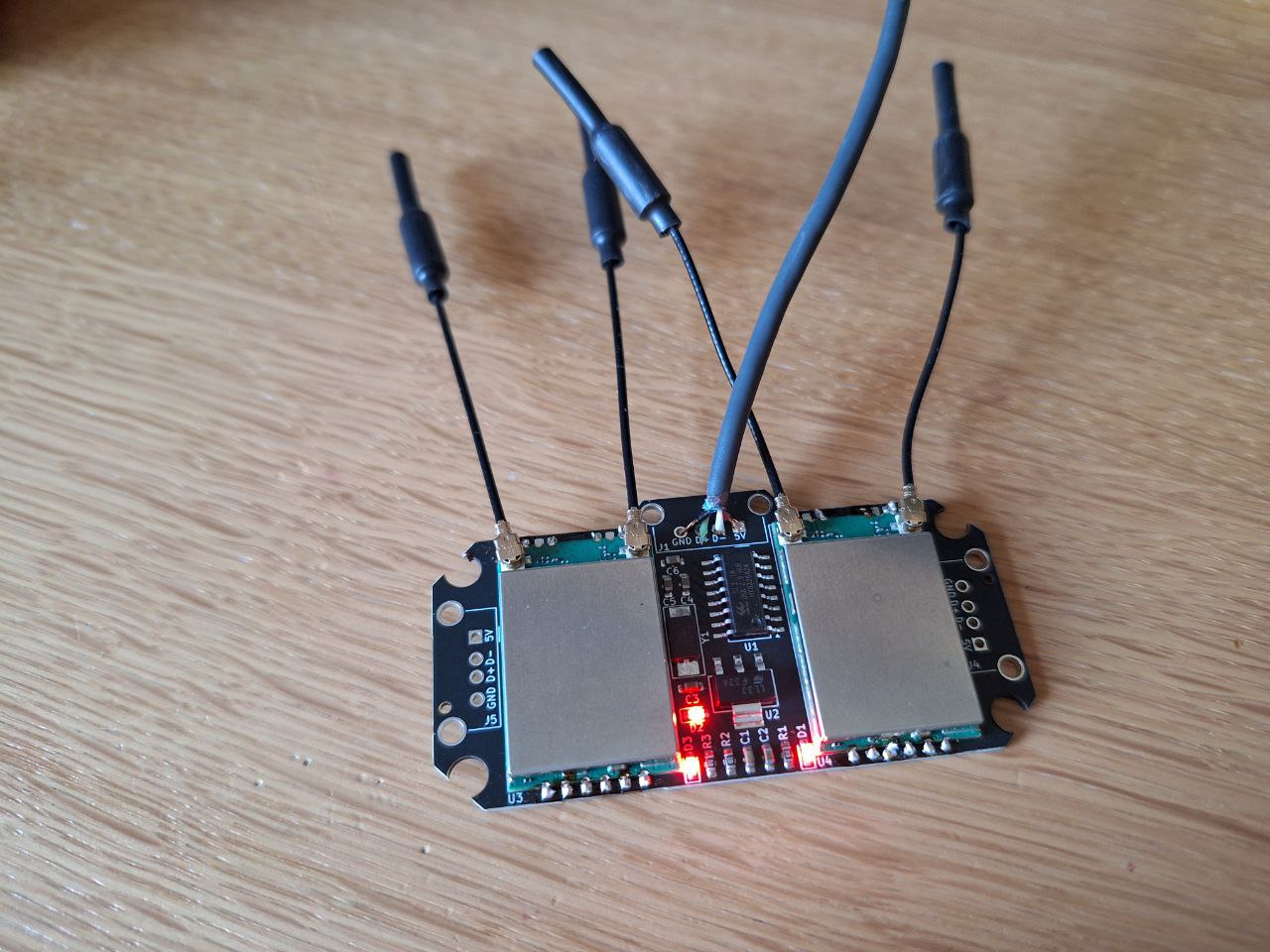

BL-R8812AF1 2x mount
About the BL-R8812AF1 2x mount PCB
BL-R8812AF1 2x mount is an open source PCB design by OpenIPC, published on GitHub under the MIT license. It is a 2-layer board measuring 65 × 33.4 mm, with 22 components from 11 distinct parts.
Other key parts include the SL2.1A and LDL1117S33R. By type, the board carries 6 capacitors, 5 connectors, 4 ICs, 3 diodes, 3 resistors and 1 crystal.
From the project
A collection of hardware developments by the OpenIPC team
Main components on the BL-R8812AF1 2x mount
BL-R8812AF1 2x mount bill of materials (BOM)
22 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SL2.1A | SOIC-16_4.55x10.3mm_P1.27mm | U1 |
| 1 | LDL1117S33R | SOT223_STM | U2 |
| 2 | ~ | BL-R8812AF1 | U3, U4 |
| 1 | 12MHZ 12MHz | Crystal_SMD_5032-2Pin_5.0x3.2mm | Y1 |
| 3 | USB_A | USB_A_Molex_67643_Horizontal | J1, J4, J5 |
| 2 | Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | J2, J3 |
| 3 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1, D2, D3 |
| 2 | 1u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C3 |
| 1 | 4U7 4u7 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C2 |
| 3 | 10U 10u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4, C5, C6 |
| 3 | 1k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R3 |
BL-R8812AF1 2x mount design files
The KiCad project lives in the OpenIPC/hardware repository on GitHub; these links point at the commit this page was built from.
BL-R8812AF1 2x mount: common questions
How big is the BL-R8812AF1 2x mount PCB?
The BL-R8812AF1 2x mount measures 65 × 33.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the BL-R8812AF1 2x mount?
22 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BL-R8812AF1 2x mount design files?
From the OpenIPC/hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the BL-R8812AF1 2x mount design in my own project?
Yes, under the terms of its MIT license, which OpenIPC chose for the repository.
