BL-R8812AF1 mount

OpenIPC·hardware·26x26mm whoop BL-R8812AF1 mount/BL-R8812AF1 mount.kicad_pcb

BL-R8812AF1 mount PCB layout, top view — open source board by OpenIPC
Simulate this board

About the BL-R8812AF1 mount PCB

BL-R8812AF1 mount is an open source PCB design by OpenIPC, published on GitHub under the MIT license. It is a 2-layer board measuring 40 × 40 mm, with 11 components from 8 distinct parts.

Other key parts include the LDL1117S33R. By type, the board carries 3 capacitors, 2 connectors, 2 diodes, 2 resistors and 1 IC.

It belongs with the robotics & motion designs in this gallery.

From the project

A collection of hardware developments by the OpenIPC team

- One of the open board for OpenIPC - 8812AU module dock board for camera,input 6V@2A max and 28V@ 3A max - WIFI board for stacking on 20mm square hole flight controller for FPV

- OpenIPC models on Printables site - 5 inch racer drone equipped with OpenIPC

More information about the [project][project] is available in our [website][website] and on the [wiki][wiki].

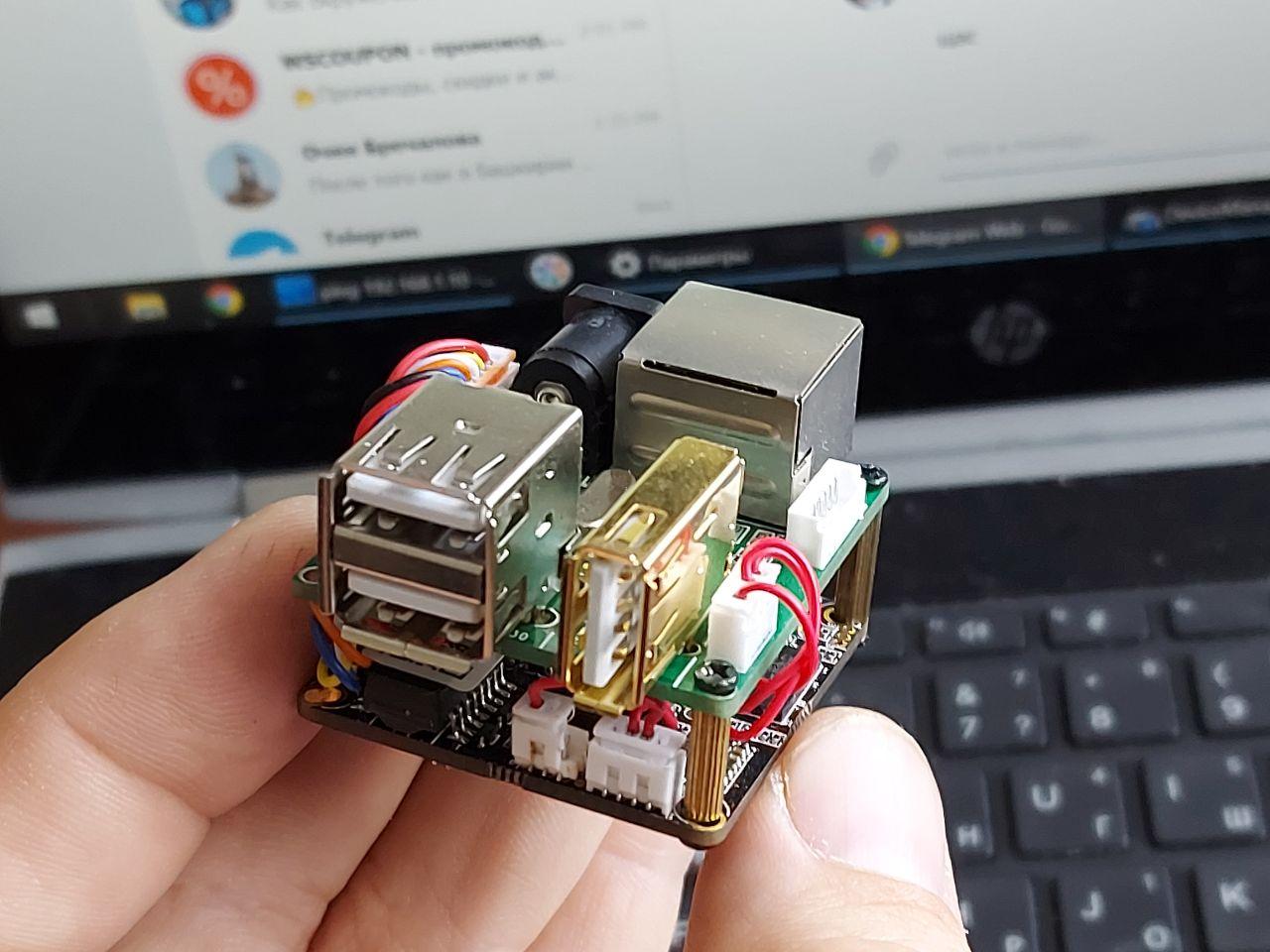

BL-R8812AF1 mount, from the project README
From the project README

Main components on the BL-R8812AF1 mount

LDL1117S33R

BL-R8812AF1 mount bill of materials (BOM)

11 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LDL1117S33R
U2
2
Conn_01x04_Pin
J1, J2
1
~
BL-R8812AF1
2
LED
D1, D2
1
1u
C1
1
4U7
1u
C2
1
4u7
C3
2
1k
R1, R2

BL-R8812AF1 mount design files

The KiCad project lives in the OpenIPC/hardware repository on GitHub; these links point at the commit this page was built from.

BL-R8812AF1 mount: common questions

How big is the BL-R8812AF1 mount PCB?

The BL-R8812AF1 mount measures 40 × 40 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BL-R8812AF1 mount?

11 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BL-R8812AF1 mount design files?

From the OpenIPC/hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the BL-R8812AF1 mount design in my own project?

Yes, under the terms of its MIT license, which OpenIPC chose for the repository.
