Interposer
About the Interposer PCB
Interposer is an open source PCB design by opulo-inc, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 10.1 × 9.8 mm, with 3 components from 2 distinct parts.
Other key parts include the MAX3078E. By type, the board carries 2 resistors and 1 IC.
From the project

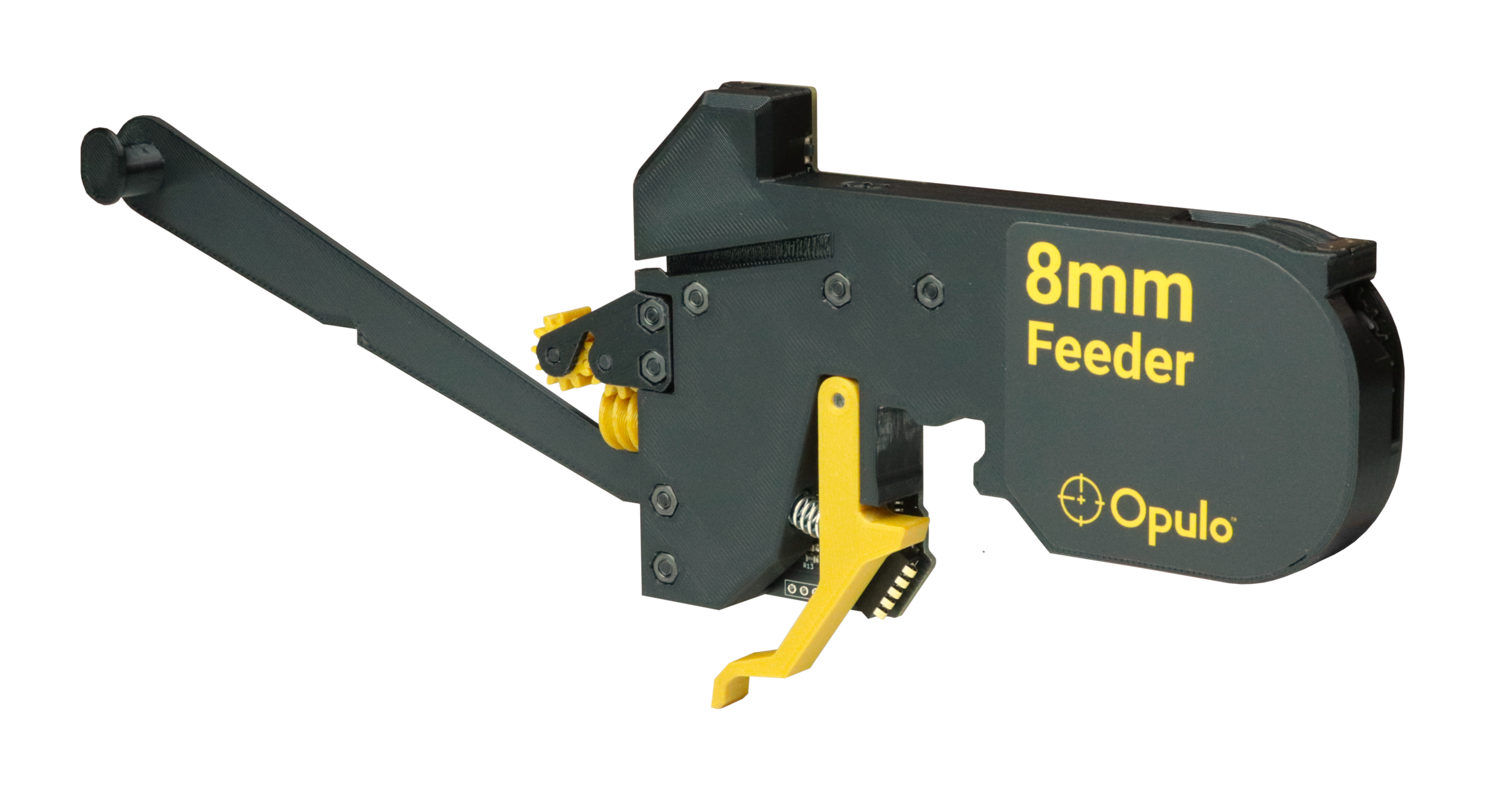

Source for LumenPnP Feeders
LumenPnP Feeders are available for sale on the Opulo Website. If you build or buy one, please help the project by documenting bugs with a GitHub issue.
The LumenPnP Feeders run Photon, an open source firmware project for pick and place feeders. The popular pick and place control software OpenPnP has Photon support built in, so it's easy to get going with the LumenPnP feeders using your existing OpenPnP setup. These feeders are designed to work with the LumenPnP.
Main components on the Interposer
Interposer bill of materials (BOM)
3 components, 2 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MAX3078E | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 2 | 1M | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2 |
Interposer design files
The KiCad project lives in the opulo-inc/feeder repository on GitHub; these links point at the commit this page was built from.
Interposer: common questions
How big is the Interposer PCB?
The Interposer measures 10.1 × 9.8 mm, has 2 copper layers and is 0.39 mm thick.
How many components are on the Interposer?
3 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Interposer design files?
From the opulo-inc/feeder repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Interposer design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which opulo-inc chose for the repository.
