Higher lower

oskitone·higher_lower·kicad/higher_lower.kicad_pcb

Higher lower PCB layout, top view — open source AVR/Arduino board by oskitone
Simulate this board

About the Higher lower PCB

Higher lower is an open source AVR/Arduino PCB design by oskitone, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 63.5 × 38.1 mm, with 14 components from 12 distinct parts.

Its main chip is the ATTINY85V-10PU, from the AVR/Arduino family. By type, the board carries 3 switches, 2 capacitors, 2 resistors, 1 IC, 1 connector and 1 battery holder.

It belongs with the audio designs in this gallery.

From the project

A handheld electronic game you can play with your eyes closed

Higher Lower is a 3D-printed, screen-free, handheld electronic game about arbitrary musical intervals.

DIY electronics kit: https://www.oskitone.com/product/higher-lower-game-diy-electronics-kit Gameplay demo: https://vimeo.com/1075918437 Assembly guide: https://oskitone.github.io/higher_lower

Obviously, I'd prefer you buy the kit from me. But, if circumstances prohibit, I've uploaded the Higher Lower PCB to OSH Park; please buy it from them with my blessing.

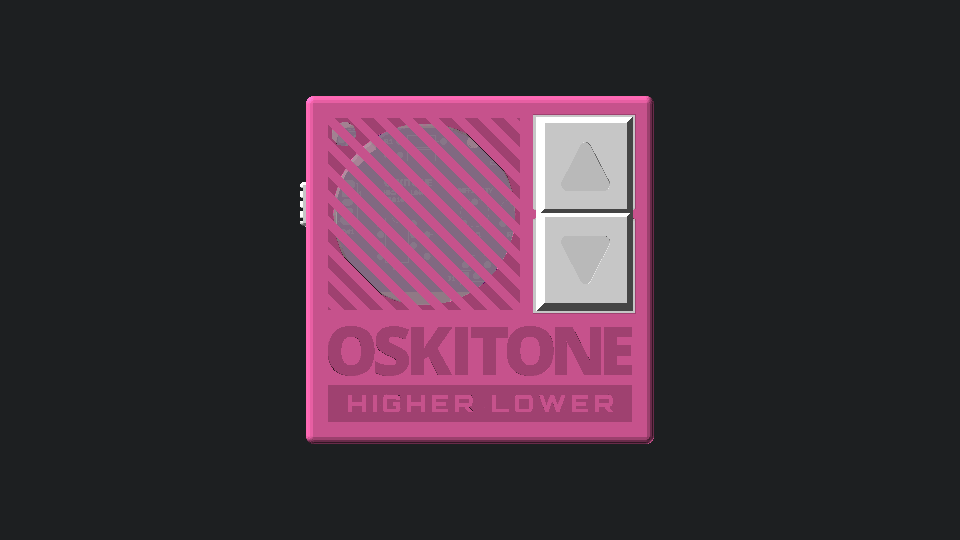

Higher lower, from the project README
From the project README

Main components on the Higher lower

ATTINY85V-10PU

Higher lower bill of materials (BOM)

14 components, 12 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATTINY85V-10PU
U1
1
Conn_02x03
J1
1
1.8V-5.5V
BT1
1
Speaker
LS1
1
10k
RV1
1
1k
RV2
1
SW_SPDT
SW1
2
SW_SPST
SW2, SW3
1
LED_RKGB
D1
1
.1uF
C1
1
220uF
C2
2
1k
R1, R2

Higher lower design files

The KiCad project lives in the oskitone/higher_lower repository on GitHub; these links point at the commit this page was built from.

Higher lower: common questions

What microcontroller does the Higher lower use?

The Higher lower is built around the ATTINY85V-10PU, from the AVR/Arduino family.

How big is the Higher lower PCB?

The Higher lower measures 63.5 × 38.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Higher lower?

14 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Higher lower design files?

From the oskitone/higher_lower repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Higher lower design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which oskitone chose for the repository.

Can I test firmware for the Higher lower without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
