About the SPIN PCB
SPIN is an open source STM32 PCB design by owntech-foundation, published on GitHub. It is a 4-layer board measuring 21 × 51 mm, with 34 components from 21 distinct parts.
Its main chip is the STM32G474RE, from the STM32 family. Other key parts include the AZ1117-33 and WE-TVS-82400102. By type, the board carries 14 capacitors, 7 resistors, 3 ICs, 2 connectors, 2 fuses and 2 switches.

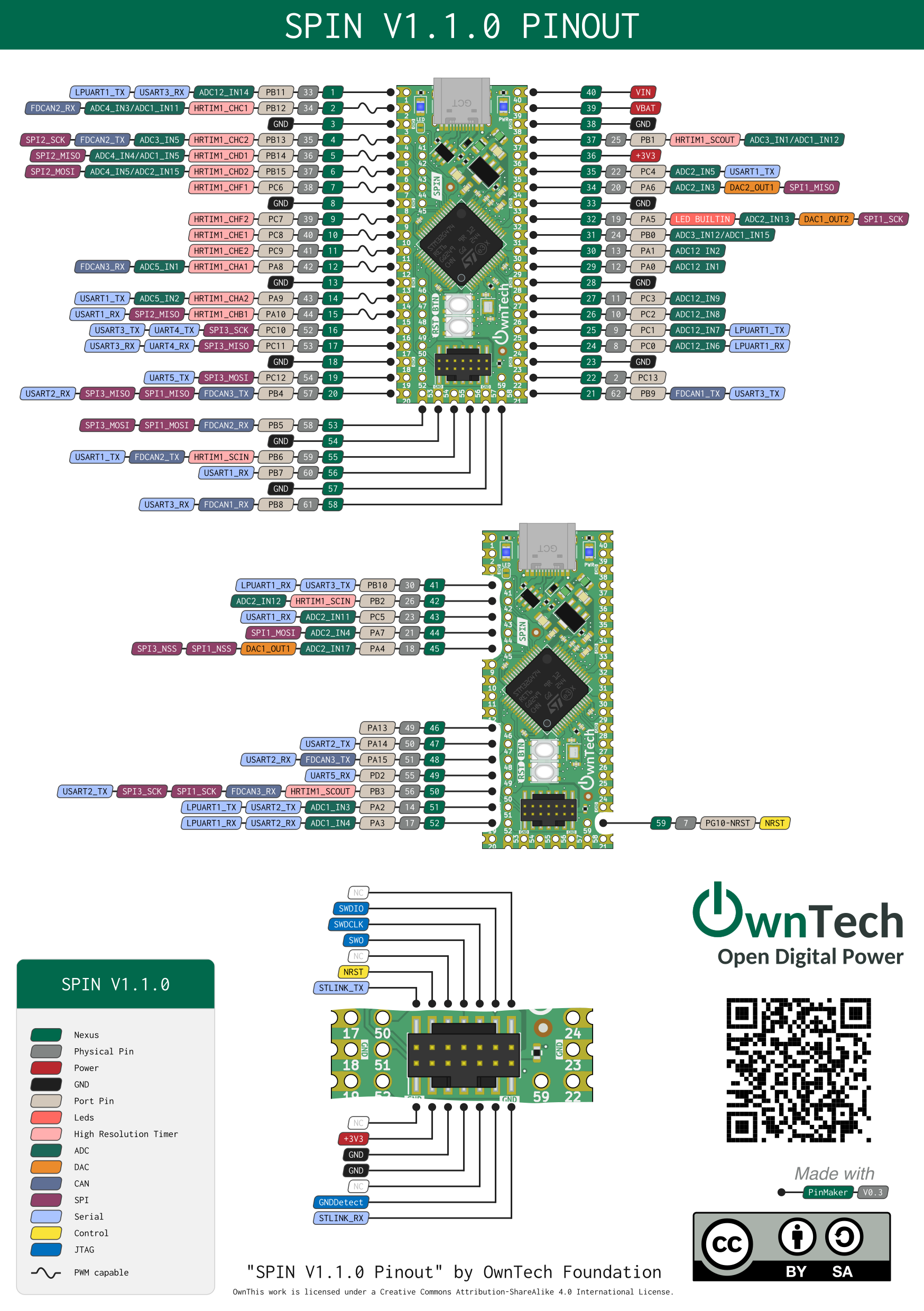

From the project
Repository holding all Kicad file for the SPIN board
SPIN is a dev' board specialized for power applications. SPIN has it's dedicated firmware that is meant to be super intuitive and simple to use.
Native USB support OwnPlot compatible! Graphical interface to monitor the application. Verbose mode available Debug friendly
10 PWM signals ready to deploy! Up to 55MHz PWM frequency Up to 184ps temporal resolution Center-aligned modulation support Advanced phase shifting options Multiple SPIN synchronization support * Dead-time support

Main components on the SPIN
SPIN bill of materials (BOM)
34 components, 21 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32G474RE | LQFP-64_10x10mm_P0.5mm | U1 |
| 1 | AZ1117-33 | SOT-89-3 | U2 |
| 1 | WE-TVS-82400102 | SOT-23-6 | U3 |
| 1 | ECS-240-8-37-CKM-TR3 - 24MHz | Crystal_SMD_2016-4Pin_ComGnd_2.0x1.6mm | Y1 |
| 1 | FTSH-107-01-F-DV-K | PinHeader_2x07_P1.27mm_Vertical_SMD | J5 |
| 1 | USB_C_Receptacle_USB2.0 | USB_C_Receptacle_HRO_TYPE-C-31-M-12-reduce-courtyard | J6 |
| 2 | 350mA | Fuse_0805_2012Metric | F1, F2 |
| 2 | Push Button | SW_SPST_PTS810 | SW1, SW2 |
| 2 | Blue | LED_0805_2012Metric | LED1, LED2 |
| 1 | 1000 Ohm @ 100MHz | R_0402_1005Metric | FB1 |
| 2 | 12pF | C_0402_1005Metric | C1, C2 |
| 6 | 100nF | C_0402_1005Metric | C3, C5, C6, C7, C8, C12 |
| 1 | 4,7uF | C_0603_1608Metric | C4 |
| 2 | 1µF | C_0603_1608Metric | C9, C11 |
| 1 | 10nF | C_0402_1005Metric | C10 |
| 2 | 10uF | C_0805_2012Metric | C13, C14 |
| 1 | 220 | R_0402_1005Metric | R1 |
| 1 | 100 | R_0402_1005Metric | R2 |
| 2 | 330 | R_0402_1005Metric | R3, R4 |
| 2 | 5.1k | R_0402_1005Metric | R5, R6 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1R | R_0402_1005Metric | R7 |
SPIN design files
The KiCad project lives in the owntech-foundation/SPIN repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCAD_files/spin.kicad_pcb
- SchematicKiCAD_files/spin.kicad_sch
SPIN: common questions
What microcontroller does the SPIN use?
The SPIN is built around the STM32G474RE, from the STM32 family.
How big is the SPIN PCB?
The SPIN measures 21 × 51 mm, has 4 copper layers and is 1.59 mm thick.
How many components are on the SPIN?
34 components, from 21 distinct parts. The full bill of materials is listed on this page.
Where can I download the SPIN design files?
From the owntech-foundation/SPIN repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the SPIN design in my own project?
The repository has no license, so all rights stay with owntech-foundation. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the SPIN without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
