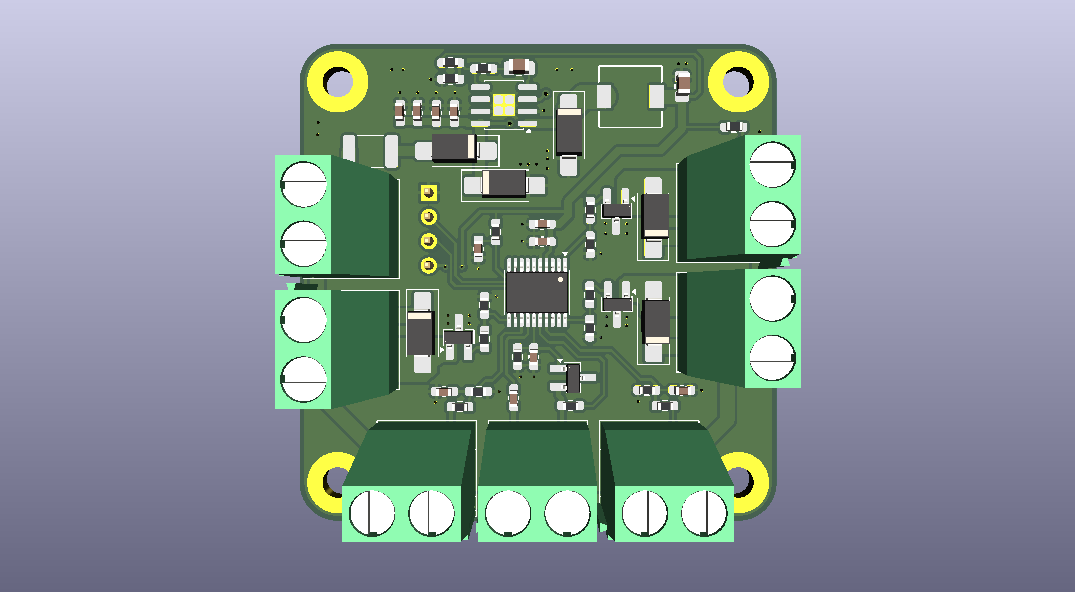

STM32G0F6Px-ROC PCB layout, top view — open source STM32 board by oxfordfish
Simulate this board

About the STM32G0F6Px-ROC PCB

STM32G0F6Px-ROC is an open source STM32 PCB design by oxfordfish, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 50 × 50 mm, with 53 components from 26 distinct parts.

Its main chip is the STM32G030F6Px, from the STM32 family. Other key parts include the L7985ATR. By type, the board carries 17 resistors, 13 capacitors, 8 connectors, 8 diodes, 3 transistors and 2 ICs.

It belongs with the power & battery designs in this gallery.

From the project

A reverse osmosis controller system designed around STM32.

An ROC board designed to improve the performance of an RO system using STM32 and peripherals

Credits: — Buck Converter. — Switching Regulator PCB Design - Phil's Lab #60 Design Purpose: Learning power conversion, component placement, sensor and mosfet usage & personal use.

Microcontroller: STM32G0F6Px (TSSOP-20 Package) Power Supply: On-board Buck Converter (24V to 3.3V step-down) switching regulator network Connectivity: Screw Terminals for 24V power and peripherals Debugging & Flash: SWD (Serial Wire Debug) header Status Indicators: Power LED Design Tool: KiCad 10.0

STM32G0F6Px-ROC, from the project README
From the project README

Main components on the STM32G0F6Px-ROC

STM32G030F6PxL7985ATR

STM32G0F6Px-ROC bill of materials (BOM)

53 components, 26 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32G030F6Px
U1
1
L7985ATR
U2
3
IRLML6344TRPBF
Q1, Q2, Q3
7
Screw_Terminal_01x02
J1, J2, J3, J4, J5, J6, J7
1
Conn_01x04_Pin
J8
1
1A
F1
4
SS24
D1, D2, D3, D8
1
BAT54
D4
1
GREEN
D6
1
STPS1L30A
D7
1
SMAJ30A
D9
1
15u
L1
1
4.7u
C1
6
100n
C2, C3, C4, C5, C6, C8
1
47u
C7
1
220n
C9
3
1u
C10, C11, C12
1
47n
C13
3
100R
R1, R2, R3
5
10kR
R4, R5, R6, R11, R14
Show 6 more
QtyPartRefs
2
10k
R7, R16
1
100kR
R8
2
1kR
R10, R13
2
1k5R
R12, R15
1
15k
R17
1
2.2k
R18

STM32G0F6Px-ROC design files

The KiCad project lives in the oxfordfish/STM32G0F6Px-ROC repository on GitHub; these links point at the commit this page was built from.

STM32G0F6Px-ROC: common questions

What microcontroller does the STM32G0F6Px-ROC use?

The STM32G0F6Px-ROC is built around the STM32G030F6Px, from the STM32 family.

How big is the STM32G0F6Px-ROC PCB?

The STM32G0F6Px-ROC measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the STM32G0F6Px-ROC?

53 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the STM32G0F6Px-ROC design files?

From the oxfordfish/STM32G0F6Px-ROC repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the STM32G0F6Px-ROC design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which oxfordfish chose for the repository.

Can I test firmware for the STM32G0F6Px-ROC without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
