MowerBoard
About the MowerBoard PCB

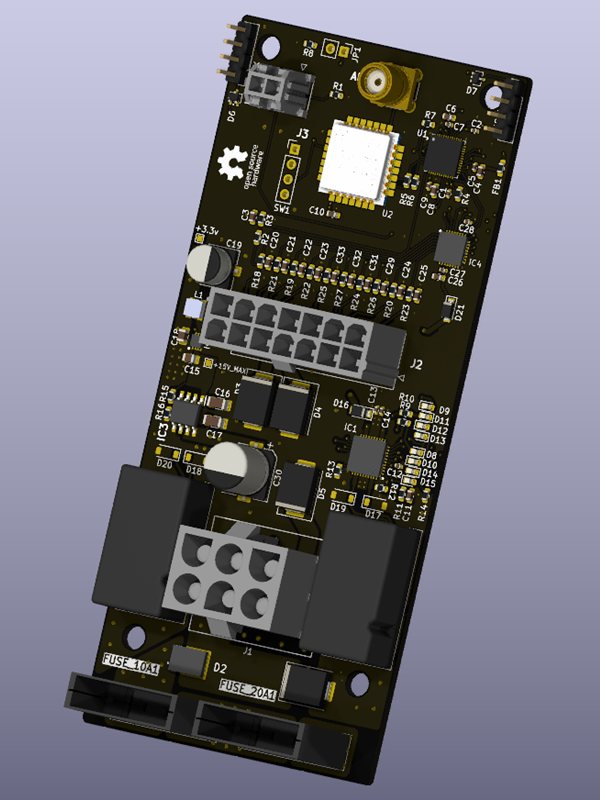

MowerBoard is an open source PCB design by pcailliatte, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 54 × 120 mm, with 101 components from 80 distinct parts.
Other key parts include the PTPS274C65ASRHAR, TPS62162DSGR, TPS7B8601QDDARQ1, MC33978AES and AVR128DB48X-X6LX. By type, the board carries 33 capacitors, 27 resistors, 21 diodes, 6 ICs, 4 connectors and 2 relays.
From the project
MowerBoard est une unité de contrôle électronique (ECU) alternative, robuste et 100% open-source pour tracteurs tondeuses autoportées thermiques.
MowerBoard est une unité de contrôle électronique (ECU) alternative, robuste et 100% open-source pour tracteurs tondeuses autoportées thermiques.
L'objectif principal de ce projet est de fournir une solution logicielle et matérielle entièrement libre. En mettant à disposition l'intégralité des schémas de conception, des fichiers de fabrication et du code source, nous démocratisons l'accès à une technologie généralement propriétaire et verrouillée par les fabricants.
Main components on the MowerBoard
MowerBoard bill of materials (BOM)
101 components, 80 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PTPS274C65ASRHAR | QFN50P600X600X100-41N-D_pasta | IC1 |
| 1 | TPS62162DSGR | SON50P200X200X80-9N | IC2 |
| 1 | TPS7B8601QDDARQ1 | SOIC127P600X170-9N_pasta | IC3 |
| 1 | MC33978AES | QFN50P500X500X90-33N-D_Pasta | IC4 |
| 1 | AVR128DB48X-X6LX AVR128DB48x-x6LX | VQFN-48-1EP_6x6mm_P0.4mm_EP4.1x4.1mm | U1 |
| 1 | 317990687 | 317990687 | U2 |
| 1 | 432550083 | CONN_SDA_43255-00xx_06_MOL_NO_MARK | J1 |
| 1 | 39-28-1143 | 39-28-1143 | J2 |
| 1 | 43045-0227 | 43045-02YY_272829 | J3 |
| 1 | SMA-J-P-H-ST-TH1 | SMAJPHSTTH1 | J4 |
| 2 | 178.6165.0002 | 17861650002 | FUSE_10A1, FUSE_20A1 |
| 1 | JUMPER_2_OPEN Jumper_2_Open | PinHeader_1x02_P2.54mm_Vertical | JP1 |
| 2 | V23086C2001A403 | V23086C2001A403 | K1, K2 |
| 1 | ~ | PinHeader_1x04_P2.54mm_Vertical | SW1 |
| 1 | ~ | PinHeader_1x04_P2.54mm_Vertical | UART1 |
| 1 | 523-G800W304018EU ~ | PinHeader_1x04_P2.54mm_Vertical | UPDI1 |
| 2 | 5.0SMDJ24A | D_SMC | D1, D3 |
| 1 | SS10PH10HM3_A/H SS10PH10HM3_A_H | V10PN50M387A | D2 |
| 2 | MURS360-E3/57T | D_SMC | D4, D5 |
| 2 | BAT54W | SOT-323_SC-70 | D6, D7 |
Show 60 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PMEG60T30ELR-QX Green_1 | LED_0603_1608Metric | D8 |
| 1 | 859-LTST-C190KGKT Red_1 | LED_0603_1608Metric | D9 |
| 1 | 859-LTST-C190KGKT Green_2 | LED_0603_1608Metric | D10 |
| 1 | 859-LTST-C190KGKT Red_2 | LED_0603_1608Metric | D11 |
| 1 | 859-LTST-C190KRKT Red_3 | LED_0603_1608Metric | D12 |
| 1 | 859-LTST-C190KRKT Red_4 | LED_0603_1608Metric | D13 |
| 1 | 859-LTST-C190KRKT Green_3 | LED_0603_1608Metric | D14 |
| 1 | 859-LTST-C190KRKT Green_4 | LED_0603_1608Metric | D15 |
| 1 | PMEG60T30ELR-QX | Nexperia_CFP3_SOD-123W | D16 |
| 1 | PMEG60T30ELR-QX 1N4148W | D_SOD-123 | D17 |
| 2 | MURS360-E3/57T 1N4148W | D_SOD-123 | D18, D19 |
| 1 | 5.0SMDJ24A 1N4148W | D_SOD-123 | D20 |
| 1 | PMEG60T30ELR-QX | Nexperia_CFP3_SOD-123W | D21 |
| 1 | ILHB0603ER601VHC41 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | FB1 |
| 1 | VLS3012HBX-2R2M | VLS3012 | L1 |
| 1 | 81-GRM155C71C105KE11 100pF 15V | C_0402_1005Metric | C1 |
| 1 | 581-KGM15BR71H104JT 1uF 15V | C_0402_1005Metric | C2 |
| 1 | 581-04025C104JAT2A 4.7uF 15V | C_0603_1608Metric | C3 |
| 1 | 81-GRM188C71C475KE1D 4.7uF 15V | C_0603_1608Metric | C4 |
| 1 | 81-GRM188C71C475KE1D 100nF 15V | C_0402_1005Metric | C5 |
| 1 | 81-GRM21B71E106KE01L 4.7uF 15V | C_0603_1608Metric | C6 |
| 1 | 810-C2012X7S1A226MAC 100nF 15V | C_0402_1005Metric | C7 |
| 1 | RDS1A101MCNAFEGS 4.7uF 15V | C_0603_1608Metric | C8 |
| 1 | 581-12065Z106KAT2A 100nF 15V | C_0402_1005Metric | C9 |
| 1 | 581-12065Z106KAT2A 4.7uF 15V | C_0603_1608Metric | C10 |
| 1 | 81-GRM188C71C475KE1D 2.2uF 15V | C_0603_1608Metric | C11 |
| 1 | 581-04025C104JAT2A 100nF 15V | C_0402_1005Metric | C12 |
| 1 | 81-GRM188C71C475KE1D 4.7nF 50V | C_0402_1005Metric | C13 |
| 1 | 581-04025C104JAT2A 100nF 50V | C_0402_1005Metric | C14 |
| 1 | 581-KGM15BR71H104JT 10uF 25V | C_0805_2012Metric | C15 |
| 2 | 581-KGM15BR71H104JT 10uF 50V | C_1206_3216Metric | C16, C17 |
| 1 | 581-KGM15BR71H104JT 22uF 16V | C_0805_2012Metric | C18 |
| 1 | 581-KGM15BR71H104JT 100uF Polym 10v | CP_Elec_6.3x5.7 | C19 |
| 2 | 100nF 50V | C_0603_1608Metric | C20, C21 |
| 5 | 581-KGM15BR71H104JT 100nF 50V | C_0603_1608Metric | C22, C23, C24, C25, C32 |
| 1 | 647-GXC1V101MCW1GS 100nF 50V | C_0603_1608Metric | C26 |
| 1 | 581-KGM15BR71H104JT 1nF 50V | C_0402_1005Metric | C27 |
| 1 | 581-KAM05AR71H102JH 100nF 15V | C_0402_1005Metric | C28 |
| 1 | 581-04025C104JAT2A 100nF 50V | C_0603_1608Metric | C29 |
| 1 | 581-KGM05AR71H101JH 100uF 50V | CP_Elec_8x10 | C30 |
| 1 | 581-KAM05AR71H472JH 100nF 50V | C_0603_1608Metric | C31 |
| 1 | 81-GRM188C71C475KE1D 100nF 50V | C_0603_1608Metric | C33 |
| 1 | 100K 150 | R_0603_1608Metric | R1 |
| 1 | 220K 100k | R_0603_1608Metric | R2 |
| 1 | 10K 33k 1/4W | R_0603_1608Metric | R3 |
| 1 | 390 1k | R_0603_1608Metric | R4 |
| 1 | 390 22 | R_0603_1608Metric | R5 |
| 2 | 279-CRGP0603F100R 22 | R_0603_1608Metric | R6, R7 |
| 1 | 279-CRGP0603F100R 470 | R_0603_1608Metric | R8 |
| 2 | 279-CRGP0603F100R 390 | R_0603_1608Metric | R9, R10 |
| 2 | 279-CRGP0603F100R 10k | R_0603_1608Metric | R11, R16 |
| 1 | 10k | R_0603_1608Metric | R12 |
| 1 | 13.3k | R_0603_1608Metric | R13 |
| 2 | 279-CRGP0603F100R 100k | R_0603_1608Metric | R14, R17 |
| 1 | 279-CRGP0603F100R 220k | R_0603_1608Metric | R15 |
| 1 | 13.3K 100 1/4W | R_0603_1608Metric | R18 |
| 2 | 10K 100 1/4W | R_0603_1608Metric | R19, R20 |
| 2 | 100K 100 1/4W | R_0603_1608Metric | R21, R24 |
| 4 | 100 1/4W | R_0603_1608Metric | R22, R25, R26, R27 |
| 1 | 279-CRGP0603F33K 100 1/4W | R_0603_1608Metric | R23 |
MowerBoard design files
The KiCad project lives in the pcailliatte/MowerBoard repository on GitHub; these links point at the commit this page was built from.
MowerBoard: common questions
How big is the MowerBoard PCB?
The MowerBoard measures 54 × 120 mm, has 4 copper layers and is 1.6458 mm thick.
How many components are on the MowerBoard?
101 components, from 80 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MowerBoard design files?
From the pcailliatte/MowerBoard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the MowerBoard design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which pcailliatte chose for the repository.
