2332-2364-EPROM-Adapter
About the 2332-2364-EPROM-Adapter PCB
2332-2364-EPROM-Adapter is an open source PCB design by pdaehne, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 23.2 × 36 mm, with 11 components from 8 distinct parts.
Other key parts include the 27C512. By type, the board carries 6 connectors, 4 resistors and 1 IC.
From the project

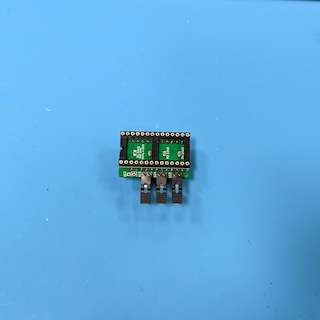

KiCad Project and Gerbers for an Adapter that allows to replace 2332 and 2364 ROMs with 2764, 27128, 27256 or 27512 EPROMs
This repository contains the KiCad project and Gerber files for an adapter that allows to replace 2332 and 2364 ROMs with 2764, 27128, 27256 or 27512 EPROMs.
The subdirectory "gerber-files" contains a Zip file you can use to order the PCB from PCB manufacturers like PCBWay or JLCPCB. Simply upload the Zip on their web page. I recommend to order the standard PCB thickness of 1.6mm and HASL finishing.
Main components on the 2332-2364-EPROM-Adapter
2332-2364-EPROM-Adapter bill of materials (BOM)
11 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 27C512 | DIP-28_W15.24mm_Socket | U1 |
| 1 | A12 | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | A13 | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 1 | A14 | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 1 | A15 | PinHeader_1x02_P2.54mm_Vertical | J4 |
| 1 | Left Pinheader | PinHeader_1x12_P2.54mm_Vertical | J5 |
| 1 | Right Pinheader | PinHeader_1x12_P2.54mm_Vertical | J6 |
| 4 | 10kΩ | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R3, R4 |
2332-2364-EPROM-Adapter design files
The KiCad project lives in the pdaehne/2332-2364-EPROM-Adapter repository on GitHub; these links point at the commit this page was built from.
2332-2364-EPROM-Adapter: common questions
How big is the 2332-2364-EPROM-Adapter PCB?
The 2332-2364-EPROM-Adapter measures 23.2 × 36 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 2332-2364-EPROM-Adapter?
11 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the 2332-2364-EPROM-Adapter design files?
From the pdaehne/2332-2364-EPROM-Adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the 2332-2364-EPROM-Adapter design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
