Siemens-LinuxCNC-Interface PCB layout, top view — open source STM32 board by PedPEx

About the Siemens-LinuxCNC-Interface PCB

Siemens-LinuxCNC-Interface is an open source STM32 PCB design by PedPEx, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 235 × 119.4 mm, with 93 components from 33 distinct parts.

Its main chip is the STM32L151C8T6, from the STM32 family. Other key parts include the AP22652AW6-7, LD1117S33CTR and C128392. By type, the board carries 39 resistors, 27 capacitors, 11 ICs, 6 connectors, 4 diodes and 2 switches.

From the project

Siemens Sinumerik840C Maschinensteuertafel Adaptor for LinuxCNC

As terminal blocks Weidmüller 1824460000 - LSF-SMT 3.50/06/90 3.5SN BK TU were used - because i had them at hand. But any headers or screw terminals with a 3.5 mm pitch can be used here.

An example of a whole machine fitted with this Interface can be found in my other project Maho400E-LinuxCNC

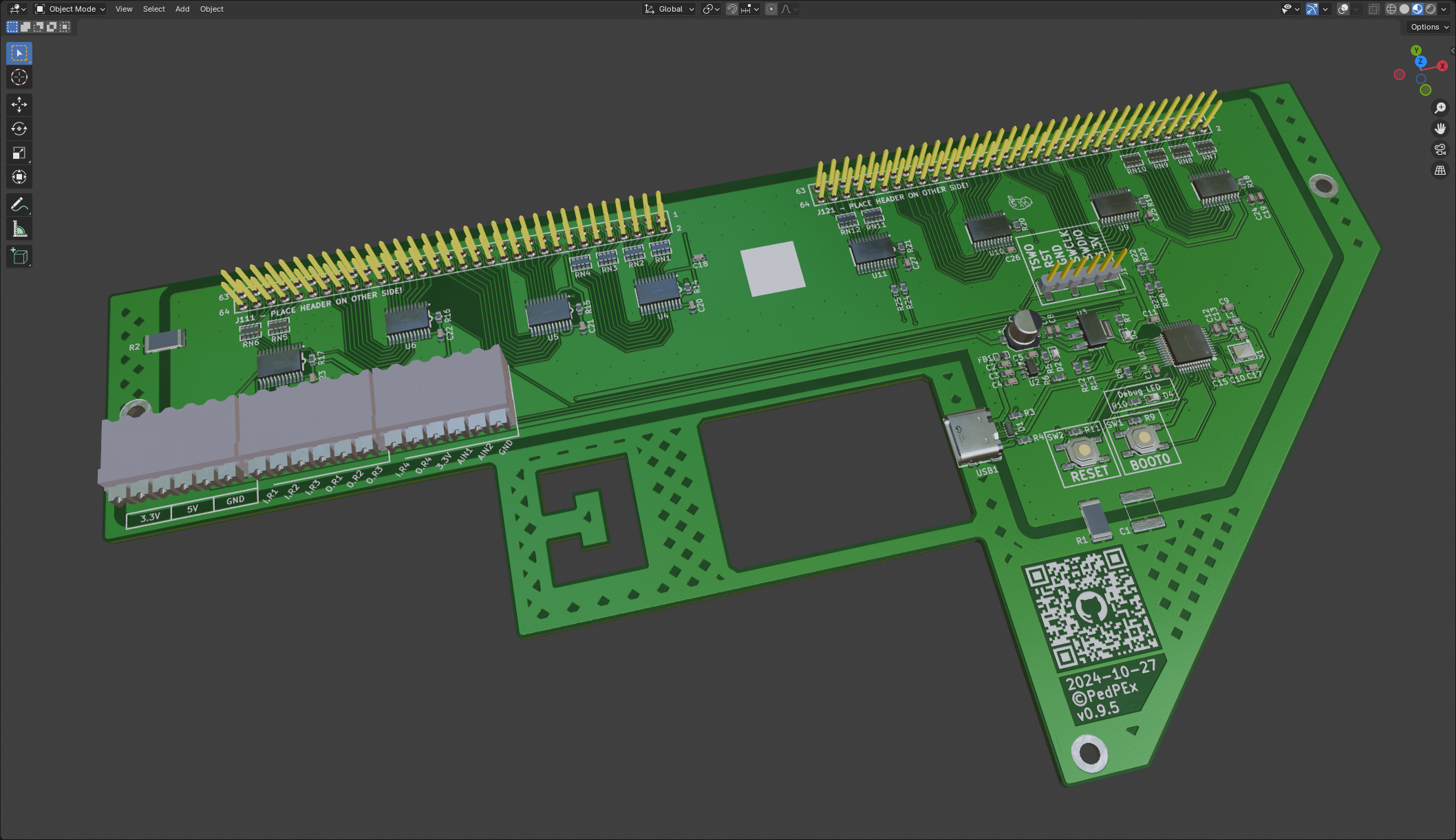

Siemens-LinuxCNC-Interface, from the project README
From the project README

Main components on the Siemens-LinuxCNC-Interface

STM32L151C8T6AP22652AW6-7LD1117S33CTRC128392

Siemens-LinuxCNC-Interface bill of materials (BOM)

93 components, 33 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32L151C8T6
STM32L151CCT6
U1
1
AP22652AW6-7
U2
1
LD1117S33CTR
U3
8
C128392
PCA9555PW,118
U4, U5, U6, U7, U8, U9, U10, U11
1
16MHZ
16MHz
X1
1
C2883763
ProgHeader
J1
1
1824460000
Power
J2
1
1824460000
Buttons
J3
1
1824460000
Reserve2
J4
2
SSW-132-24-L-D
J111, J121
2
TS-1187A-B-A-B
SW1, SW2
1
KH-TYPE-C-16P
USB1
1
TPD4E05U06DQAR_C138714
D1
3
LED
D2, D3, D4
1
C107332
100R@100MHz
FB1
1
27NH
27nH
L1
1
0.1U
0.1u
C1
2
1u
C2, C12
2
10U
10u
C3, C8
3
0.1U
0.1u
C4, C5, C7
Show 13 more
QtyPartRefs
1
100U
100u
C6
3
4U7
4u7
C9, C18, C23
13
100N
100n
C10, C11, C13, C14, C15, C19, C20, C21 +5
2
8p
C16, C17
2
100K
100k
R1, R2
2
5K1
5k1
R3, R4
1
680
R5
1
25K
25k
R6
2
470
R7, R10
5
1K5
1k5
R8, R12, R13, R22, R23
10
10K
10k
R9, R11, R14, R15, R16, R17, R18, R19 +2
4
0
R24, R25, R26, R27
12
4X680R
4x680R
RN1, RN2, RN3, RN4, RN5, RN6, RN7, RN8 +4

Siemens-LinuxCNC-Interface design files

The KiCad project lives in the PedPEx/Siemens-LinuxCNC-Interface repository on GitHub; these links point at the commit this page was built from.

Siemens-LinuxCNC-Interface: common questions

What microcontroller does the Siemens-LinuxCNC-Interface use?

The Siemens-LinuxCNC-Interface is built around the STM32L151C8T6, from the STM32 family.

How big is the Siemens-LinuxCNC-Interface PCB?

The Siemens-LinuxCNC-Interface measures 235 × 119.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Siemens-LinuxCNC-Interface?

93 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Siemens-LinuxCNC-Interface design files?

From the PedPEx/Siemens-LinuxCNC-Interface repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Siemens-LinuxCNC-Interface design in my own project?

Yes, under the terms of its GPL-3.0 license, which PedPEx chose for the repository.

Can I test firmware for the Siemens-LinuxCNC-Interface without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
