LED-Display PCB layout, top view — open source board by Pegoku

About the LED-Display PCB

LED-Display is an open source PCB design by Pegoku, published on GitHub. It is a 2-layer board measuring 96.8 × 66.9 mm, with 1345 components from 6 distinct parts.

Other key parts include the XL-1010RGBC-WS2812B. By type, the board carries 1024 ICs, 300 capacitors, 16 resistors and 1 connector.

It belongs with the displays & leds designs in this gallery.

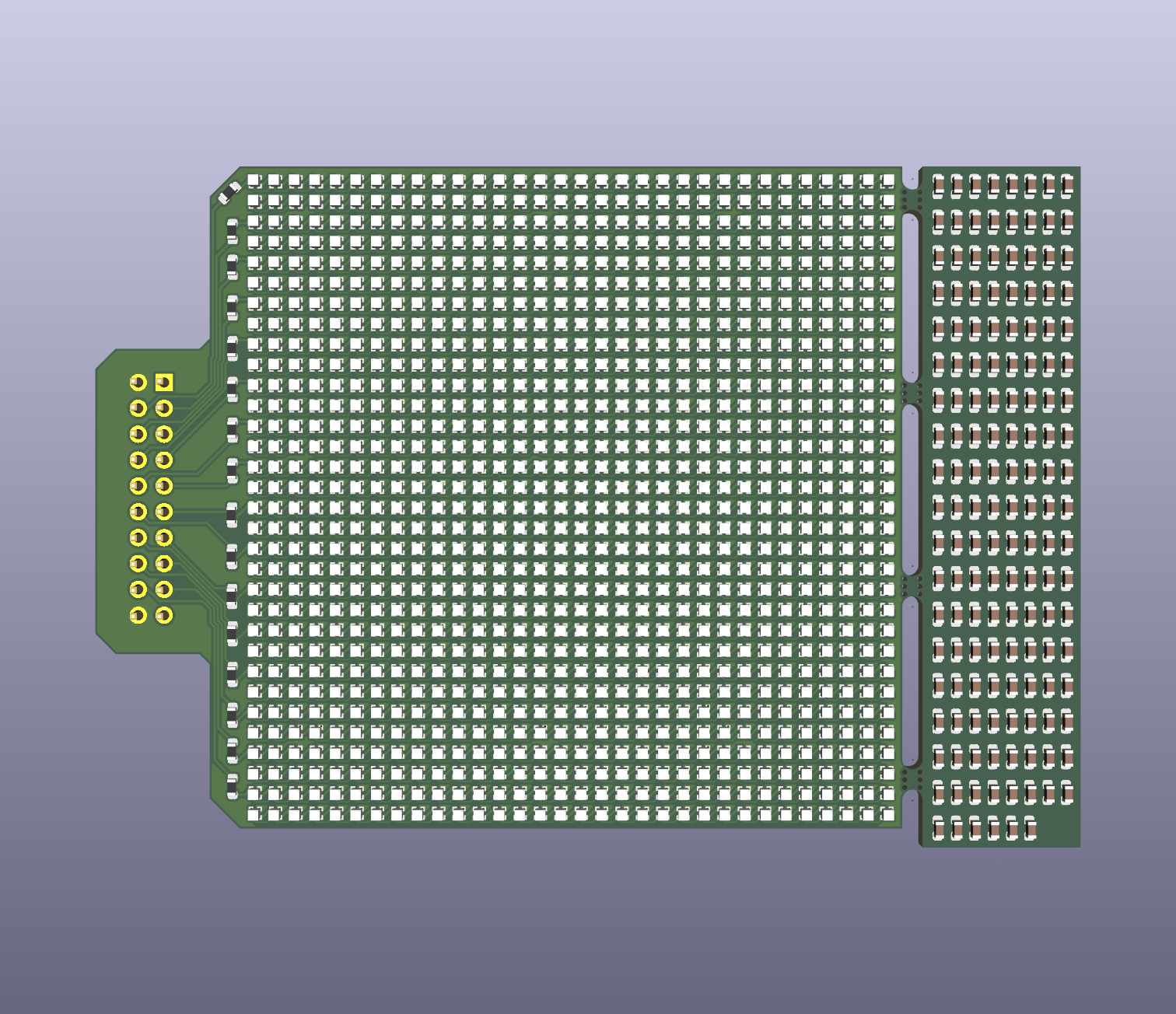

LED-Display, from the project README
From the project README

Main components on the LED-Display

XL-1010RGBC-WS2812B

LED-Display bill of materials (BOM)

1345 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1024
XL-1010RGBC-WS2812B
U1, U2, U3, U4, U5, U6, U7, U8 +1016
1
CONN_02X10_ODD_EVEN
Conn_02x10_Odd_Even
J20
4
VAL**
mouse-bite-2mm-slot, mouse-bite-2mm-slot1, mouse-bite-2mm-slot2, mouse-bite-2mm-slot3
150
1uF
C1, C2, C3, C4, C5, C6, C7, C8 +142
150
1UF
1uF
C151, C152, C153, C154, C155, C156, C157, C158 +142
16
500
R1, R2, R3, R4, R5, R6, R7, R8 +8

LED-Display design files

The KiCad project lives in the Pegoku/LED-Display repository on GitHub; these links point at the commit this page was built from.

LED-Display: common questions

How big is the LED-Display PCB?

The LED-Display measures 96.8 × 66.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LED-Display?

1345 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the LED-Display design files?

From the Pegoku/LED-Display repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the LED-Display design in my own project?

The repository has no license, so all rights stay with Pegoku. Use it as a reference, and ask the author before reusing the design.
