GND PCB layout, top view — open source board by perehinik

About the GND PCB

GND is an open source PCB design by perehinik, published on GitHub. It is a 2-layer board measuring 20 × 52 mm, with 5 components from 3 distinct parts.

It belongs with the test & measurement designs in this gallery.

From the project

KiCad PCB project of Logic Analyzer

All components were soldered by hand using Zhaoxin 898DH station

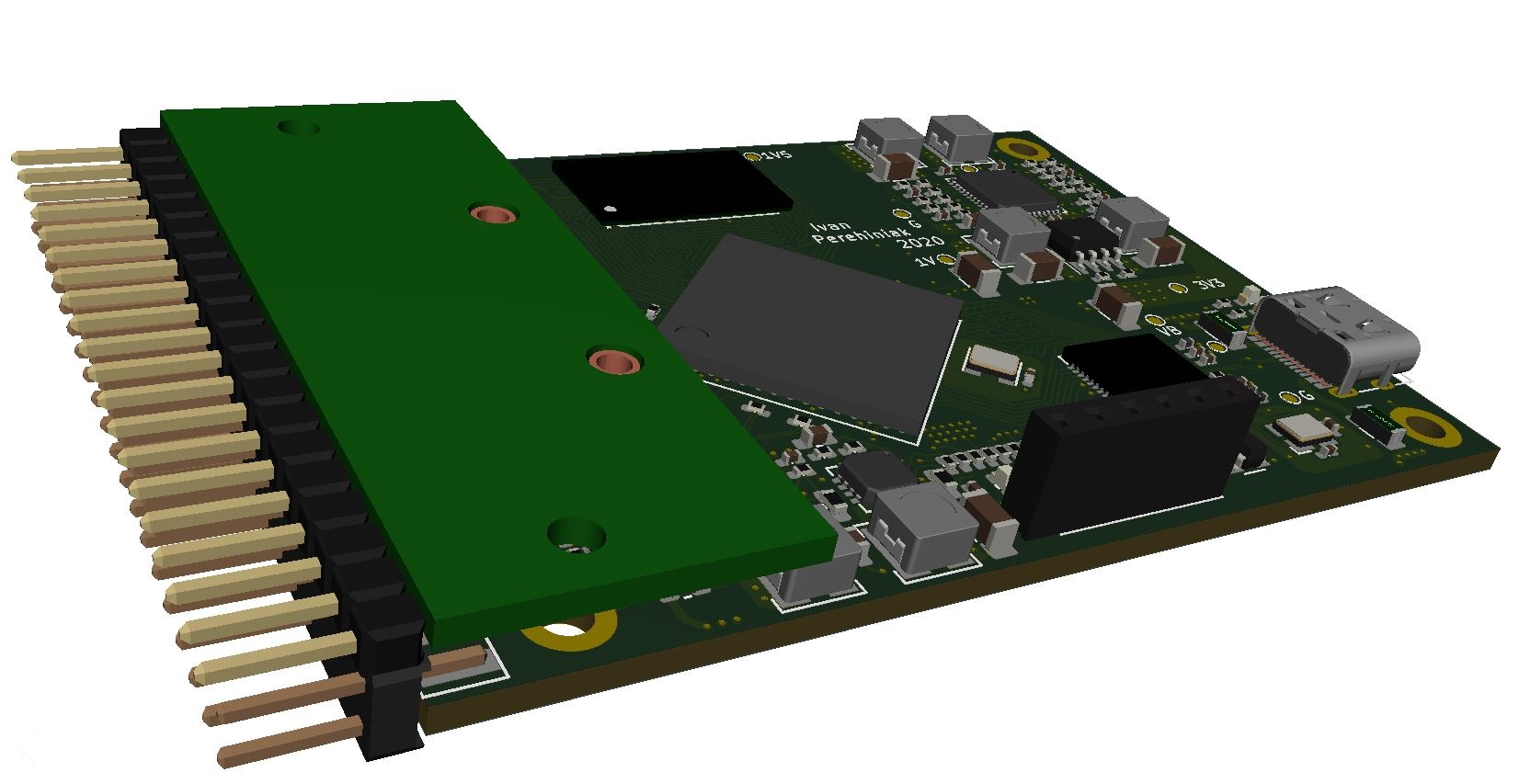

GND, from the project README
From the project README

GND bill of materials (BOM)

5 components, 3 distinct parts.

QtyPartRefs
2
MH_M2_W_Spacer_3mm
J101, J102
1
J_Conn_01x20_2.5_Male
J104
2
MH_M2_5_WOut_Ring
MEH101, MEH102

GND design files

The KiCad project lives in the perehinik/Logic_Analyzer_PCB repository on GitHub; these links point at the commit this page was built from.

GND: common questions

How big is the GND PCB?

The GND measures 20 × 52 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the GND?

5 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the GND design files?

From the perehinik/Logic_Analyzer_PCB repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the GND design in my own project?

The repository has no license, so all rights stay with perehinik. Use it as a reference, and ask the author before reusing the design.
