Bc250 carrier

peterdk31·bc250_ws2812b_controller·hardware/bc250_carrier/bc250_carrier.kicad_pcb

Bc250 carrier PCB layout, top view — open source board by peterdk31

About the Bc250 carrier PCB

Bc250 carrier is an open source PCB design by peterdk31, published on GitHub. It is a 2-layer board measuring 80 × 34.5 mm, with 13 components from 13 distinct parts.

By type, the board carries 11 connectors, 1 transistor and 1 resistor.

It belongs with the displays & leds designs in this gallery.

From the project

A small controller + receiver (esp32) for controlling a string of ws2812b leds. It installs a daemon that can switch between different effects based on some defined rules.

An 80 × 34.5 mm two-layer carrier for the ESP32-C3 Super Mini that runs the receiver firmware in the BC-250. It replaces the loose wiring for the power switch, the WS2812B strip and the fans with one board: the Super Mini plugs into two sockets on it, the PSU's own 10-pin Mini-Fit Jr plug goes straight onto a right-angle header and lies flat over the board, the strip leaves through a 10 A JST-VH, and the illuminated power button plugs into a 4-pin JST-XH. A 2 × 6 pin header along the left edge (J11) takes the sense wire and breaks out the module's five spare GPIOs, each beside a ground pin…

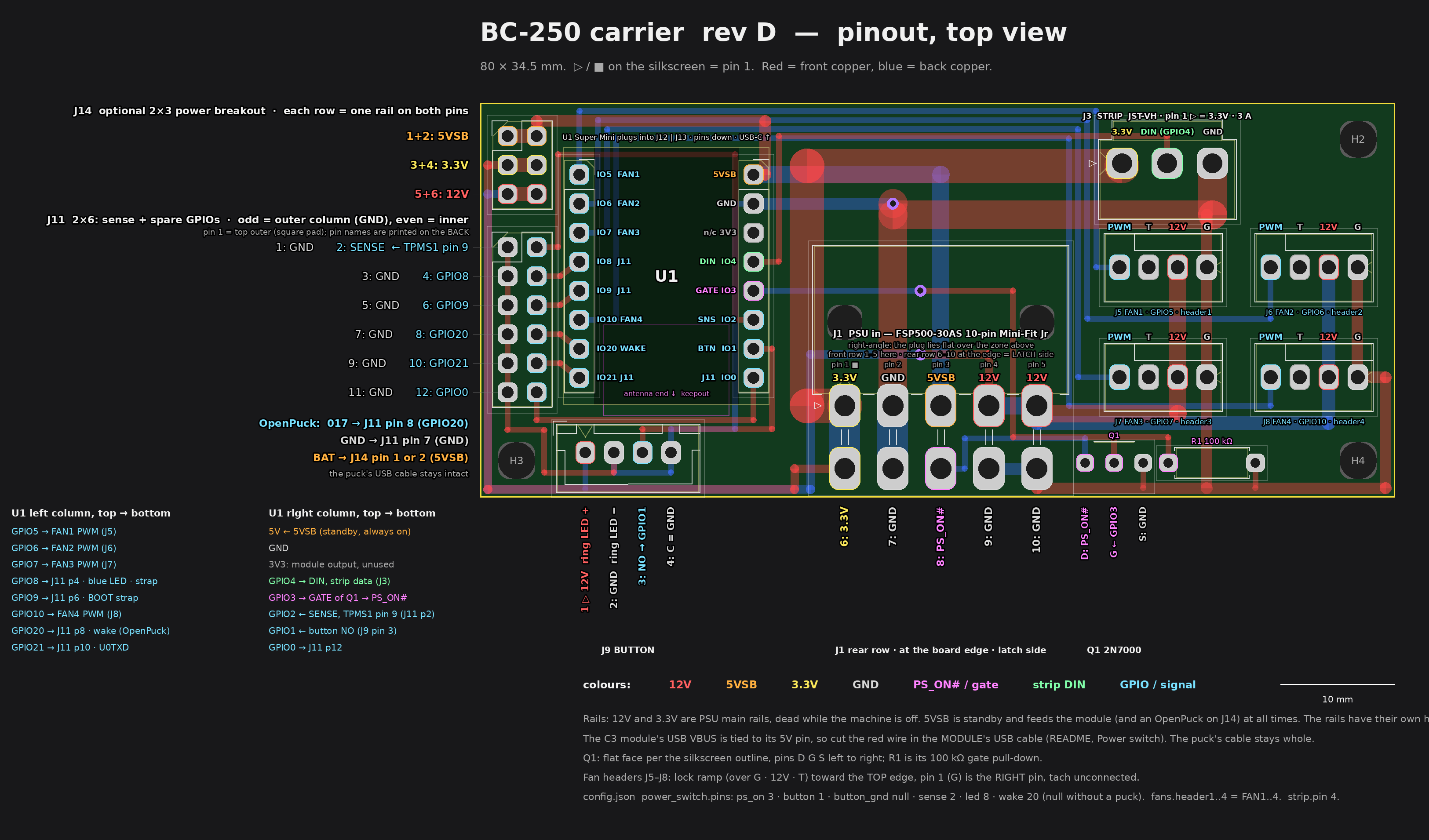

Bc250 carrier, from the project README
From the project README

Bc250 carrier bill of materials (BOM)

13 components, 13 distinct parts.

QtyPartRefs
1
2N7000
Q1
1
PSU Mini-Fit Jr 2x5 R/A
J1
1
STRIP
J3
1
FAN1 GPIO5
J5
1
FAN2 GPIO6
J6
1
FAN3 GPIO7
J7
1
FAN4 GPIO10
J8
1
BUTTON
J9
1
SENSE+GPIO/GND
J11
1
U1 socket L
J12
1
U1 socket R
J13
1
PWR 3.3V/5VSB/12V (optional)
J14
1
100k
R1

Bc250 carrier design files

The KiCad project lives in the peterdk31/bc250_ws2812b_controller repository on GitHub; these links point at the commit this page was built from.

Bc250 carrier: common questions

How big is the Bc250 carrier PCB?

The Bc250 carrier measures 80 × 34.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bc250 carrier?

13 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the Bc250 carrier design files?

From the peterdk31/bc250_ws2812b_controller repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Bc250 carrier design in my own project?

The repository has no license, so all rights stay with peterdk31. Use it as a reference, and ask the author before reusing the design.
