Jeopardy buzzer controller
About the Jeopardy buzzer controller PCB
Jeopardy buzzer controller is an open source AVR/Arduino PCB design by pfroud, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 250 × 46 mm, with 13 components from 13 distinct parts.
Its main chip is the Arduino Pro Micro, from the AVR/Arduino family. By type, the board carries 3 connectors, 1 IC and 1 switch.
From the project
Buzzers for Jeopardy trivia game
Only eight buzzers are supported and the Arduino has twelve digital I/O pins, so no matrix circuit is needed.

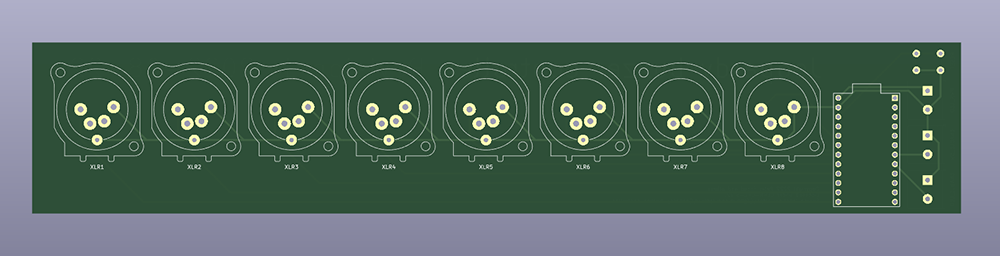

Here are screenshots of the schematic so you don't need to download / install / launch KiCad:
Each connector has four cylindrical pins with shoulders. A rectangular tab on the bottom contacts the shell of the mating connector.
KiCad comes with symbols & footprints for 4-pin XLR connectors; I modified both slightly.
Main components on the Jeopardy buzzer controller
Jeopardy buzzer controller bill of materials (BOM)
13 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Arduino Pro Micro | ProMicro | U1 |
| 1 | ENABLE_SW | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J11 |
| 1 | ENABLE_LED | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J12 |
| 1 | PWR_LED | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J13 |
| 1 | RESET | SW_PUSH_6mm | SW1 |
| 1 | XLR1 | Jack_XLR_Neutrik_NC4MBV_Vertical_with_bigger_holes | XLR1 |
| 1 | XLR2 | Jack_XLR_Neutrik_NC4MBV_Vertical_with_bigger_holes | XLR2 |
| 1 | XLR3 | Jack_XLR_Neutrik_NC4MBV_Vertical_with_bigger_holes | XLR3 |
| 1 | XLR4 | Jack_XLR_Neutrik_NC4MBV_Vertical_with_bigger_holes | XLR4 |
| 1 | XLR5 | Jack_XLR_Neutrik_NC4MBV_Vertical_with_bigger_holes | XLR5 |
| 1 | XLR6 | Jack_XLR_Neutrik_NC4MBV_Vertical_with_bigger_holes | XLR6 |
| 1 | XLR7 | Jack_XLR_Neutrik_NC4MBV_Vertical_with_bigger_holes | XLR7 |
| 1 | XLR8 | Jack_XLR_Neutrik_NC4MBV_Vertical_with_bigger_holes | XLR8 |
