Rc cfcardh
About the Rc cfcardh PCB
Rc cfcardh is an open source PCB design by PickledDog, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 99.1 × 49.9 mm, with 13 components from 11 distinct parts.
Other key parts include the 74AHCT138, 74HCT32 and 74HC245. By type, the board carries 4 capacitors, 3 ICs, 3 connectors, 2 resistors and 1 diode.
From the project

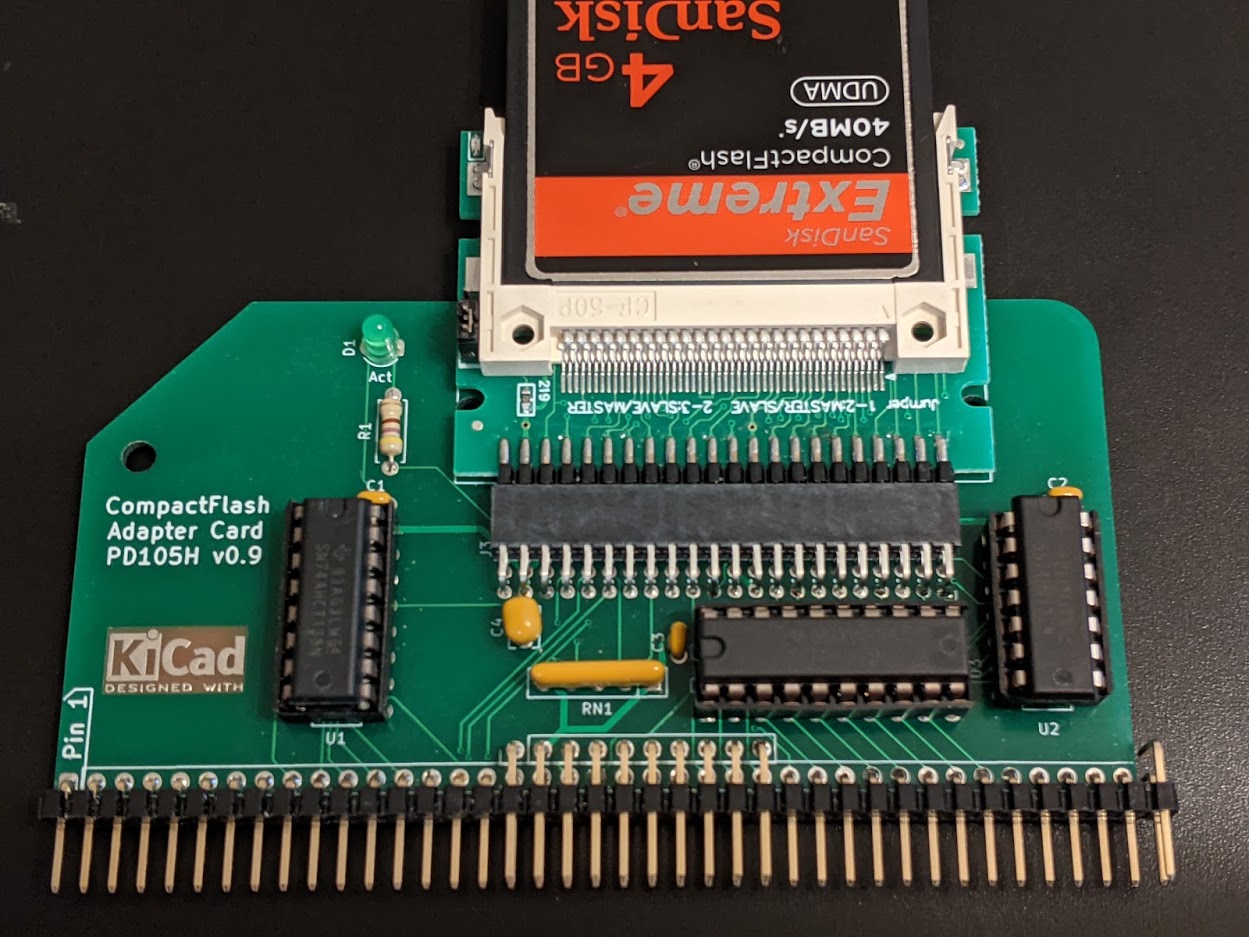

Buffered CompactFlash card for RC2014
Main components on the Rc cfcardh
Rc cfcardh bill of materials (BOM)
13 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74AHCT138 | DIP-16_W7.62mm_LongPads | U1 |
| 1 | 74HCT32 | DIP-14_W7.62mm_LongPads | U2 |
| 1 | 74HC245 | DIP-20_W7.62mm_LongPads | U3 |
| 1 | RC2014 | PinHeader_1x39_P2.54mm_Vertical | J1 |
| 1 | RC2014_Enh | PinHeader_1x10_P2.54mm_Vertical | J2 |
| 1 | IDE 44pin | PinSocket_2x22_P2.00mm_Horizontal | J3 |
| 1 | LED | LED_D3.0mm | D1 |
| 3 | 0.1uF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C1, C2, C3 |
| 1 | 10uF | C_Disc_D3.8mm_W2.6mm_P2.50mm | C4 |
| 1 | 470R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | 1k | R_Array_SIP5 | RN1 |
Rc cfcardh design files
The KiCad project lives in the PickledDog/rc-cfcard repository on GitHub; these links point at the commit this page was built from.
Rc cfcardh: common questions
How big is the Rc cfcardh PCB?
The Rc cfcardh measures 99.1 × 49.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rc cfcardh?
13 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rc cfcardh design files?
From the PickledDog/rc-cfcard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Rc cfcardh design in my own project?
Yes, under the terms of its Apache-2.0 license, which PickledDog chose for the repository.
