Nfc business card

PierreHlr·nfc-business-card·Carte_NFC_KiCad/Carte_NFC_KiCad.kicad_pcb

Nfc business card PCB layout, top view — open source board by PierreHlr

About the Nfc business card PCB

Nfc business card is an open source PCB design by PierreHlr, published on GitHub. It is a 2-layer board measuring 85.6 × 54 mm, with 3 components from 2 distinct parts.

Other key parts include the NT2H1311F0DTLH. By type, the board carries 2 capacitors and 1 IC.

It belongs with the rf & radio designs in this gallery.

From the project

Passive NFC business card on a PCB: NTAG213F + 4-turn etched antenna designed from first principles (KiCad 10, JLCPCB)

A business card that is also a printed circuit board: tap it with a phone and it opens my portfolio. No battery, no app, no microcontroller. The antenna is etched directly into the PCB and was designed from first principles.

At 13.56 MHz the wavelength is 22 m, so a phone a few centimetres away is deep in the near field. The phone's coil and the card's spiral act as a loosely coupled transformer.

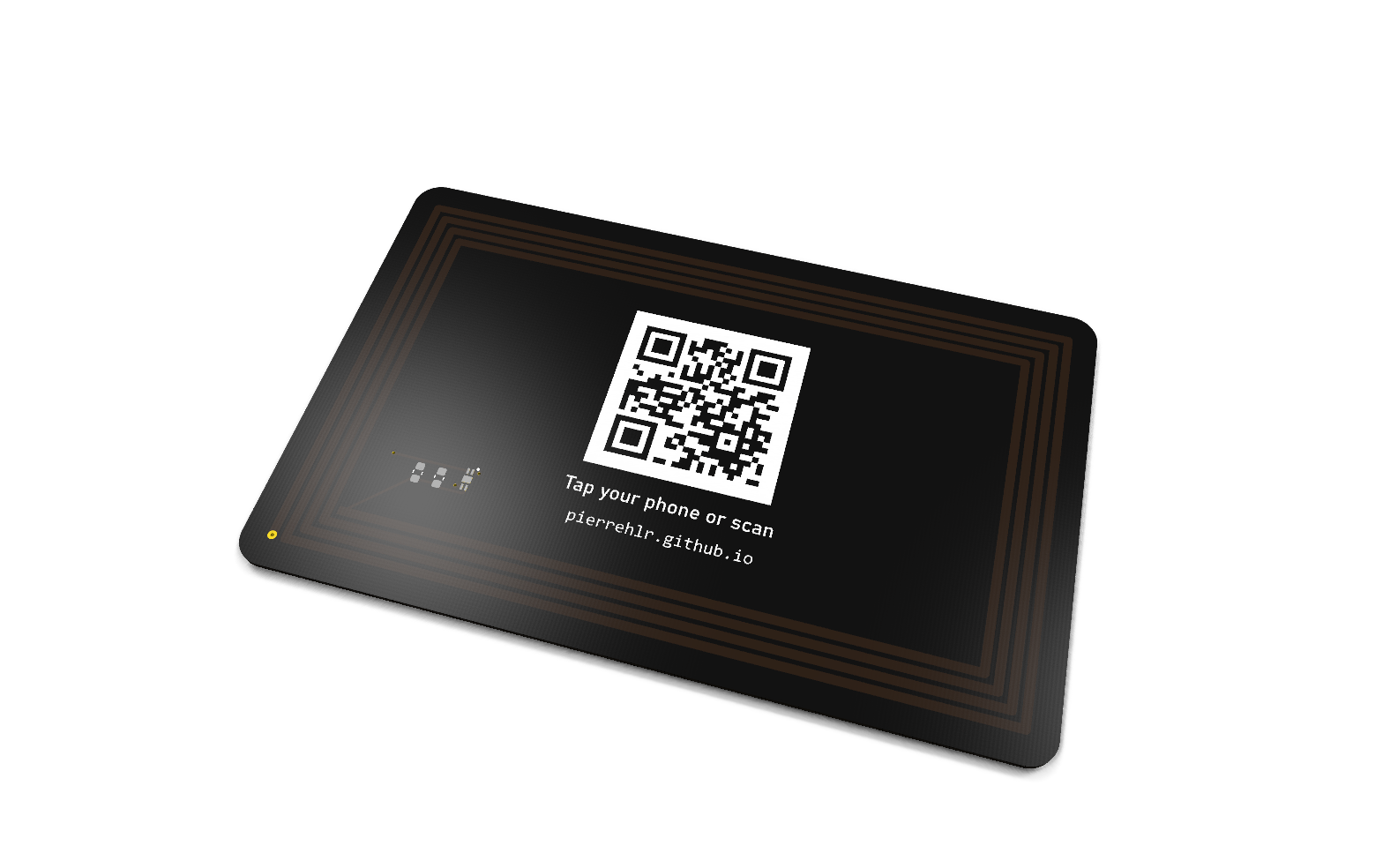

Nfc business card, from the project README
From the project README

Main components on the Nfc business card

NT2H1311F0DTLH

Nfc business card bill of materials (BOM)

3 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NT2H1311F0DTLH
U1
2
DNP
C1, C2

Nfc business card design files

The KiCad project lives in the PierreHlr/nfc-business-card repository on GitHub; these links point at the commit this page was built from.

Nfc business card: common questions

How big is the Nfc business card PCB?

The Nfc business card measures 85.6 × 54 mm, has 2 copper layers and is 0.8 mm thick.

How many components are on the Nfc business card?

3 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Nfc business card design files?

From the PierreHlr/nfc-business-card repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Nfc business card design in my own project?

The repository has no license, so all rights stay with PierreHlr. Use it as a reference, and ask the author before reusing the design.
