Flanck
About the Flanck PCB
Flanck is an open source PCB design by pluskid, published on GitHub under the MIT license. It is a 2-layer board measuring 266.7 × 76.2 mm, with 98 components from 5 distinct parts.
Other key parts include the ProMicro. By type, the board carries 48 switches, 48 diodes and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project
Keyboard related stuffs

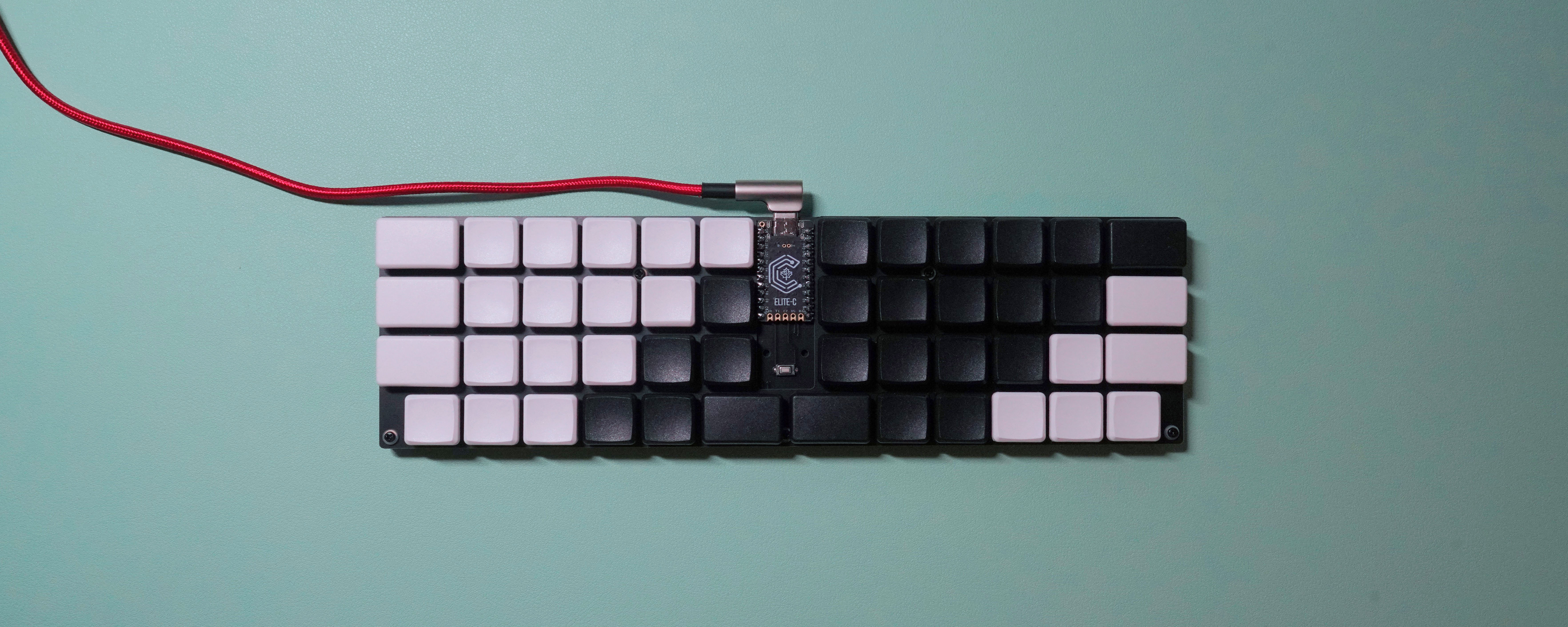

Flanck is the "Fat Planck". It is a low profile 4x12 grid style keypoard using Kailh Choc Switch. The outer most columns are modified to be 1.5U wide to make it easier to hit without stretching the wrist too much. The two sides are also made 1U apart to make it more ergonomic. It also makes room for the Elite-C on the top side of the PCB, which allows us to reduce the height of the board.
Main components on the Flanck
Flanck bill of materials (BOM)
98 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro_v3 | U1 |
| 1 | SW_PUSH | ResetSW_1side | RSW1 |
| 8 | SW_PUSH | ChocV1_V2_Hotswap_1.5u | SW1, SW12, SW13, SW24, SW25, SW36, SW42, SW43 |
| 40 | SW_PUSH | ChocV1_V2_Hotswap | SW2, SW3, SW4, SW5, SW6, SW7, SW8, SW9 +32 |
| 48 | D | D3_SMD_v2 | D1, D2, D3, D4, D5, D6, D7, D8 +40 |
Flanck design files
The KiCad project lives in the pluskid/keyboards repository on GitHub; these links point at the commit this page was built from.
Flanck: common questions
How big is the Flanck PCB?
The Flanck measures 266.7 × 76.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Flanck?
98 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Flanck design files?
From the pluskid/keyboards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Flanck design in my own project?
Yes, under the terms of its MIT license, which pluskid chose for the repository.
