Tlc6c5724-diagnostic platform

Pratik23597·tlc6c5724-diagnostic-platform·hardware/tlc-breakout/TLC_breakout.kicad_pcb

Tlc6c5724-diagnostic platform PCB layout, top view — open source board by Pratik23597

About the Tlc6c5724-diagnostic platform PCB

Tlc6c5724-diagnostic platform is an open source PCB design by Pratik23597, published on GitHub under the MIT license. It is a 2-layer board measuring 11.9 × 4.7 mm, with 3 components from 2 distinct parts.

Other key parts include the TLC6C5724QDAPRQ1. By type, the board carries 2 connectors and 1 IC.

It belongs with the iot & wireless and dev boards & breakouts designs in this gallery.

From the project

ESP32 diagnostic and control platform for the TI TLC6C5724-Q1 24-channel automotive RGB LED driver: full driver diagnostics, TFT HMI, MQTT + Node-RED Dashboard 2, KiCad schematic and breakout PCB.

Development and Validation of a Portable Automotive RGB Lighting Diagnostic Platform Using the TLC6C5724-Q1 Automotive LED Driver with Local Control and MQTT-Based Remote Monitoring through Node-RED

University project, OTH Regensburg (2026) - Pratik Sukare

An ESP32-based test and control unit for the Texas Instruments TLC6C5724-Q1, a 24-channel constant-current RGB LED driver for automotive lighting. The platform drives all 24 outputs, runs the driver's built-in diagnostics, and reports faults both on a local TFT display and on a remote Node-RED dashboard over MQTT.

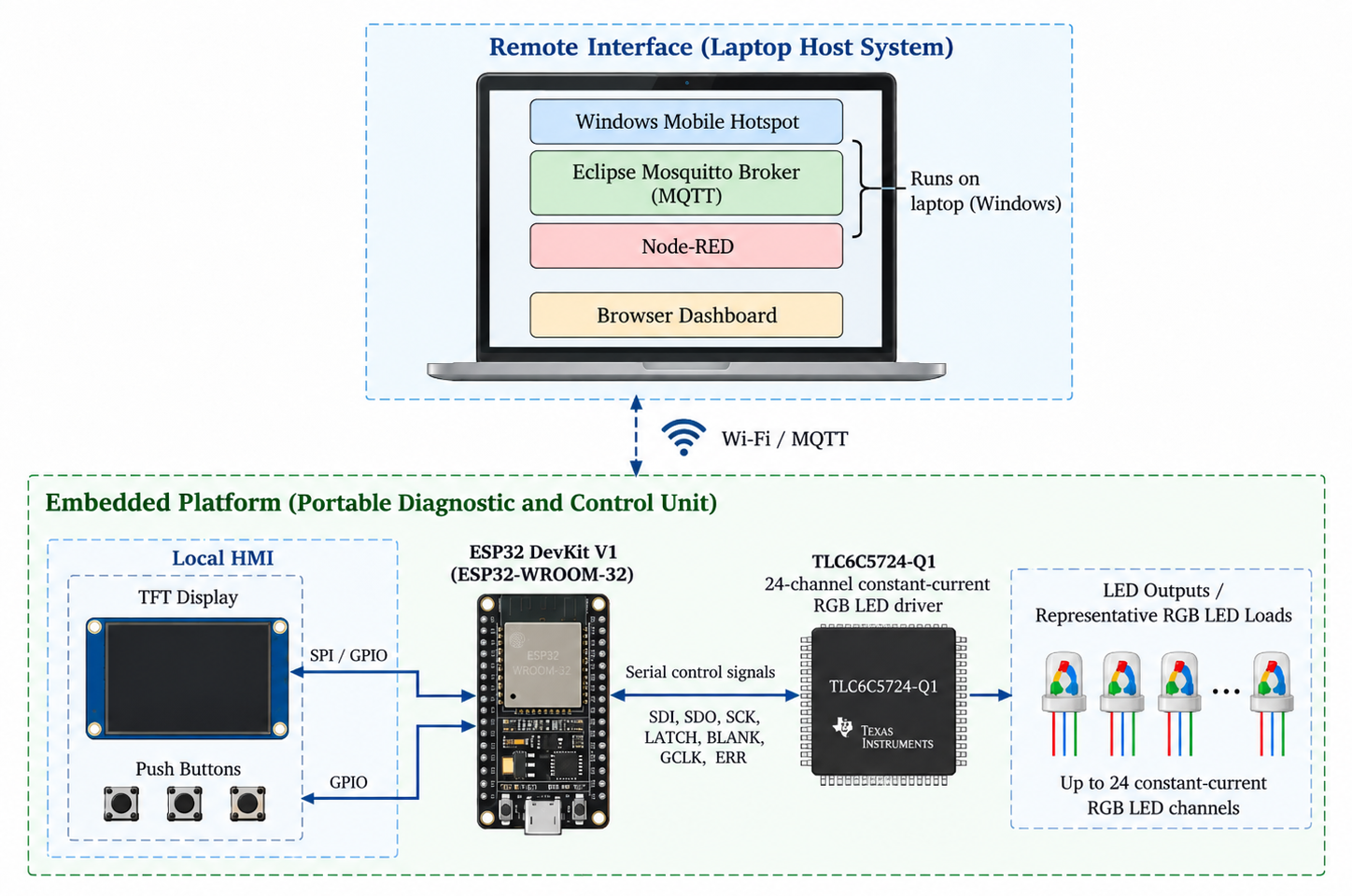

Tlc6c5724-diagnostic platform, from the project README
From the project README

Main components on the Tlc6c5724-diagnostic platform

TLC6C5724QDAPRQ1

Tlc6c5724-diagnostic platform bill of materials (BOM)

3 components, 2 distinct parts.

QtyPartRefs
1
TLC6C5724QDAPRQ1
U3
2
Conn_01x19
J2, J3

Tlc6c5724-diagnostic platform design files

The KiCad project lives in the Pratik23597/tlc6c5724-diagnostic-platform repository on GitHub; these links point at the commit this page was built from.

Tlc6c5724-diagnostic platform: common questions

How big is the Tlc6c5724-diagnostic platform PCB?

The Tlc6c5724-diagnostic platform measures 11.9 × 4.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tlc6c5724-diagnostic platform?

3 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Tlc6c5724-diagnostic platform design files?

From the Pratik23597/tlc6c5724-diagnostic-platform repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Tlc6c5724-diagnostic platform design in my own project?

Yes, under the terms of its MIT license, which Pratik23597 chose for the repository.
