Loewe VGA Module Q2500
About the Loewe VGA Module Q2500
Loewe VGA Module Q2500 is an open source PCB design by proboterror, published on GitHub. It is a 2-layer board measuring 49.3 × 33.8 mm, with 31 components from 15 distinct parts.
Other key parts include the 74HCT86 and AT24C02. By type, the board carries 14 resistors, 12 capacitors, 2 ICs and 2 inductors.
From the project
Loewe TV Q2500 Chassis VGA Module
Project based on work done by Oelii from circuit-board.de/forum
Schematic recreated from the scratch in KiCad. PCB based on Oelii's layout and verified with Desing/Electrical Rules Checker tools. Components footprints replaced with KiCad standard ones.

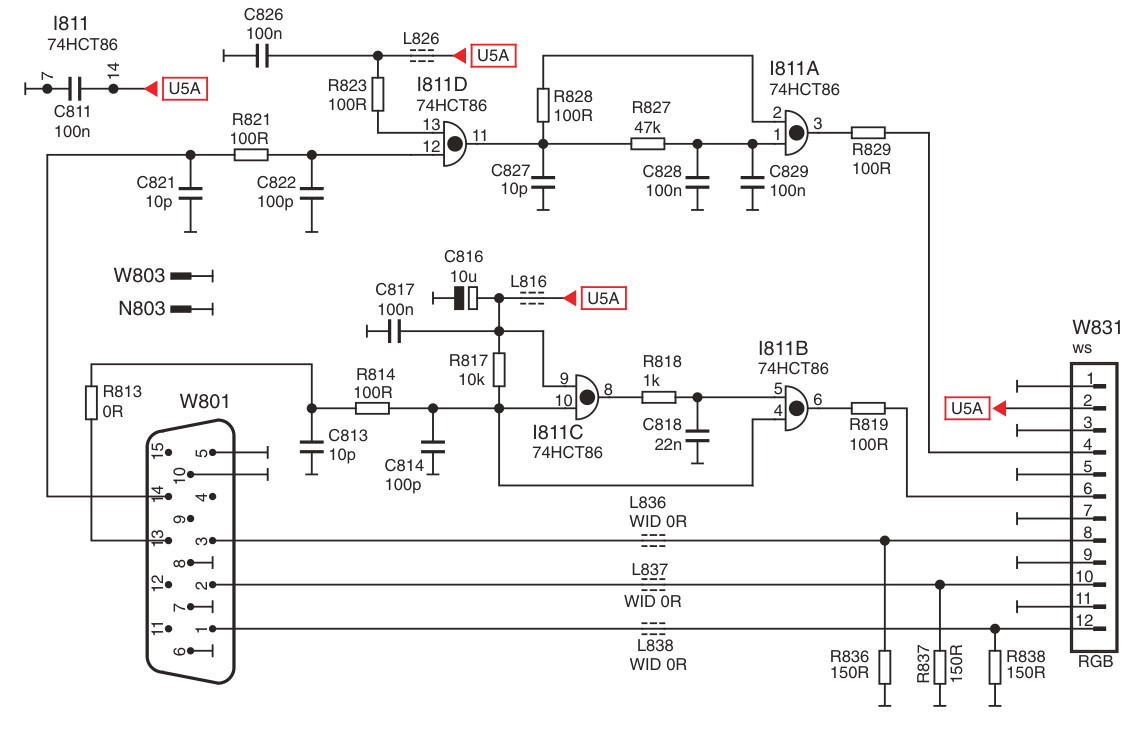

Original schematic from Loewe Q2500-M chassis service manual
L816 and L826 SMD 1210(3225) inductors value are unknown; 4.7uH in Q2300 VGA module schematic; can be replaced with 0R resistor.
Main components on the Loewe VGA Module Q2500
Loewe VGA Module Q2500 bill of materials (BOM)
31 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74HCT86 | SO-14_3.9x8.65mm_P1.27mm | U1 |
| 1 | AT24C02 | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | TV | JST_XH_B12B-XH-A_1x12_P2.54mm_Vertical | W831 |
| 2 | 4u7 | L_1210_3225Metric_Pad1.42x2.65mm_HandSolder | L816, L826 |
| 5 | 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C811, C817, C826, C828, C829 |
| 4 | 10p | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C813, C814, C821, C827 |
| 1 | 10u | CP_Elec_6.3x5.3 | C816 |
| 1 | 22n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C818 |
| 1 | 100p | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C822 |
| 2 | 2K2 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2 |
| 6 | 100R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R814, R819, R821, R823, R828, R829 |
| 1 | 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R817 |
| 1 | 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R818 |
| 1 | 47k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R827 |
| 3 | 150R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R836, R837, R838 |
Loewe VGA Module Q2500 design files
The KiCad project lives in the proboterror/Loewe_VGA_Module_Q2500 repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCad/Loewe VGA.kicad_pcb
- SchematicKiCad/Loewe VGA.kicad_sch
Loewe VGA Module Q2500: common questions
How big is the Loewe VGA Module Q2500?
The Loewe VGA Module Q2500 measures 49.3 × 33.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Loewe VGA Module Q2500?
31 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Loewe VGA Module Q2500 design files?
From the proboterror/Loewe_VGA_Module_Q2500 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Loewe VGA Module Q2500 design in my own project?
The repository has no license, so all rights stay with proboterror. Use it as a reference, and ask the author before reusing the design.
