Array euro

ProgrammableMatter·particle-hardware·pcb-projects/particle-tiny1634-array/array-euro-pcb.kicad_pcb

Array euro PCB layout, top view — open source AVR/Arduino board by ProgrammableMatter

About the Array euro PCB

Array euro is an open source AVR/Arduino PCB design by ProgrammableMatter, published on GitHub. It is a 2-layer board measuring 85.7 × 157.5 mm, with 88 components from 18 distinct parts.

Its main chip is the ATTINY1634-SU, from the AVR/Arduino family. By type, the board carries 24 transistors, 24 connectors, 16 resistors, 8 ICs, 8 diodes and 8 inductors.

It belongs with the iot & wireless designs in this gallery.

From the project

particle hardware implementation

Particle Hardware Repository ---------------------------- Hardware development repository for the particle and related hardware.

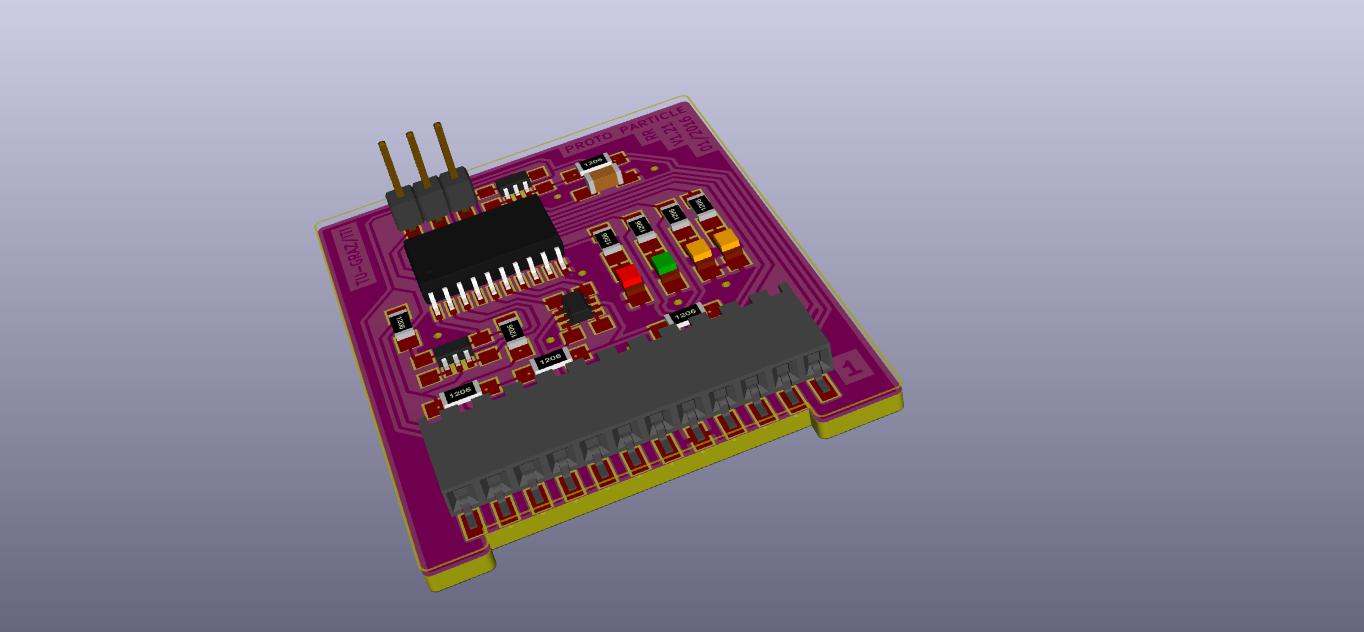

Array euro, from the project README
From the project README

Main components on the Array euro

ATTINY1634-SU

Array euro bill of materials (BOM)

88 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
8
ATTINY1634-SU
IC10002001000200100020010002000, IC10002001000200100020010002001, IC10002001000200100020010012000, IC10002001000200100020010012001, IC10002001000200100020010022000, IC10002001000200100020010022001, IC10002001000200100020010032000, IC10002001000200100020010032001
24
DMC2700UDM-7
Q-CHAIN10002001000200100020010002000, Q-CHAIN10002001000200100020010002001, Q-CHAIN10002001000200100020010012000, Q-CHAIN10002001000200100020010012001, Q-CHAIN10002001000200100020010022000, Q-CHAIN10002001000200100020010022001, Q-CHAIN10002001000200100020010032000, Q-CHAIN10002001000200100020010032001 +16
8
AVR-ISP-6
CON10002001000200100020010002000, CON10002001000200100020010002001, CON10002001000200100020010012000, CON10002001000200100020010012001, CON10002001000200100020010022000, CON10002001000200100020010022001, CON10002001000200100020010032000, CON10002001000200100020010032001
1
CHAIN1-TX
P1
1
CHAIN1-RX
P2
1
USB_A
P3
1
PWR-WEST
P4
1
PWR-EAST
P5
1
TEST1-3
CHAIN2-TX
P6
1
CHAIN2-RX
P7
1
RS232
P8
1
TXS
P10002001000200100020010002000
7
TEST1-3
P10002001000200100020010002001, P10002001000200100020010012000, P10002001000200100020010012001, P10002001000200100020010022000, P10002001000200100020010022001, P10002001000200100020010032000, P10002001000200100020010032001
1
HB
D10002001000200100020010002000
7
ERROR
D10002001000200100020010002001, D10002001000200100020010012000, D10002001000200100020010012001, D10002001000200100020010022000, D10002001000200100020010022001, D10002001000200100020010032000, D10002001000200100020010032001
8
TXS-SMA
FB10002001000200100020010002000, FB10002001000200100020010002001, FB10002001000200100020010012000, FB10002001000200100020010012001, FB10002001000200100020010022000, FB10002001000200100020010022001, FB10002001000200100020010032000, FB10002001000200100020010032001
2
1k2
R10002001000200100020010002000, R110002001000200100020010002000
14
0
R10002001000200100020010002001, R10002001000200100020010012000, R10002001000200100020010012001, R10002001000200100020010022000, R10002001000200100020010022001, R10002001000200100020010032000, R10002001000200100020010032001, R110002001000200100020010002001 +6

Array euro design files

The KiCad project lives in the ProgrammableMatter/particle-hardware repository on GitHub; these links point at the commit this page was built from.

Array euro: common questions

What microcontroller does the Array euro use?

The Array euro is built around the ATTINY1634-SU, from the AVR/Arduino family.

How big is the Array euro PCB?

The Array euro measures 85.7 × 157.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Array euro?

88 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Array euro design files?

From the ProgrammableMatter/particle-hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Array euro design in my own project?

The repository has no license, so all rights stay with ProgrammableMatter. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Array euro without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
