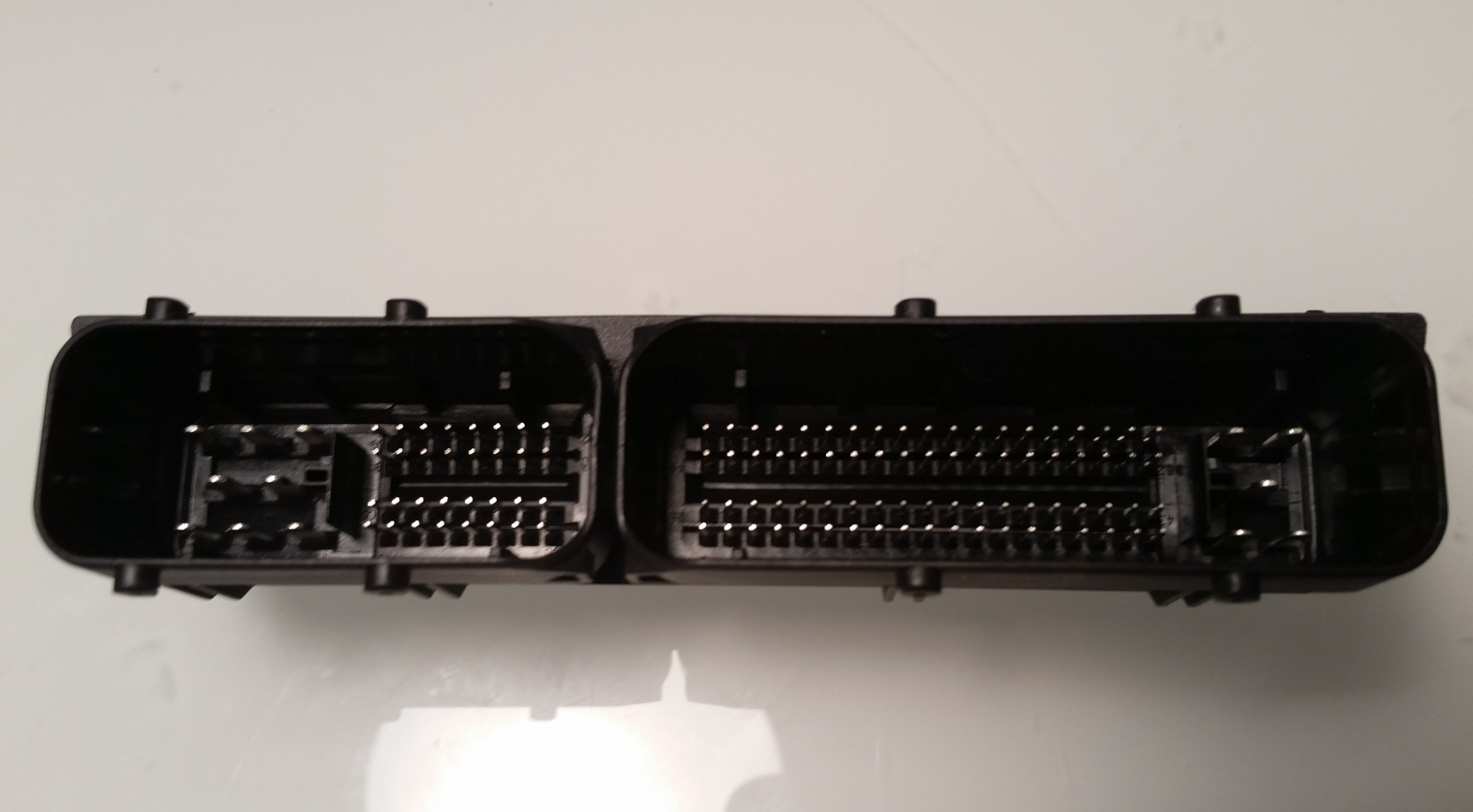

368255-2 connector break out board
About the 368255-2 connector break out board
368255-2 connector break out board is an open source PCB design by PyroMix62, published on GitHub. It is a 2-layer board measuring 146.1 × 49.5 mm, with 38 components from 5 distinct parts.
368255-2 connector break out board bill of materials (BOM)
38 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 368255-2 | 368255-2 | P1 |
| 4 | CONN_19 | 19dpad | P2, P3, P4, P5 |
| 28 | CONN_1 | 1pin(m) | P6, P7, P8, P9, P10, P11, P12, P13 +20 |
| 4 | CONN_8 | 8dpad | P32, P33, P34, P35 |
| 1 | P*** | 1pin | 1PIN |
368255-2 connector break out board design files
The KiCad project lives in the PyroMix62/ME7.5Duino repository on GitHub; these links point at the commit this page was built from.
368255-2 connector break out board: common questions
How big is the 368255-2 connector break out board?
The 368255-2 connector break out board measures 146.1 × 49.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 368255-2 connector break out board?
38 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 368255-2 connector break out board design files?
From the PyroMix62/ME7.5Duino repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the 368255-2 connector break out board design in my own project?
The repository has no license, so all rights stay with PyroMix62. Use it as a reference, and ask the author before reusing the design.
