Microsemi-MX1DS10P
About the Microsemi-MX1DS10P PCB

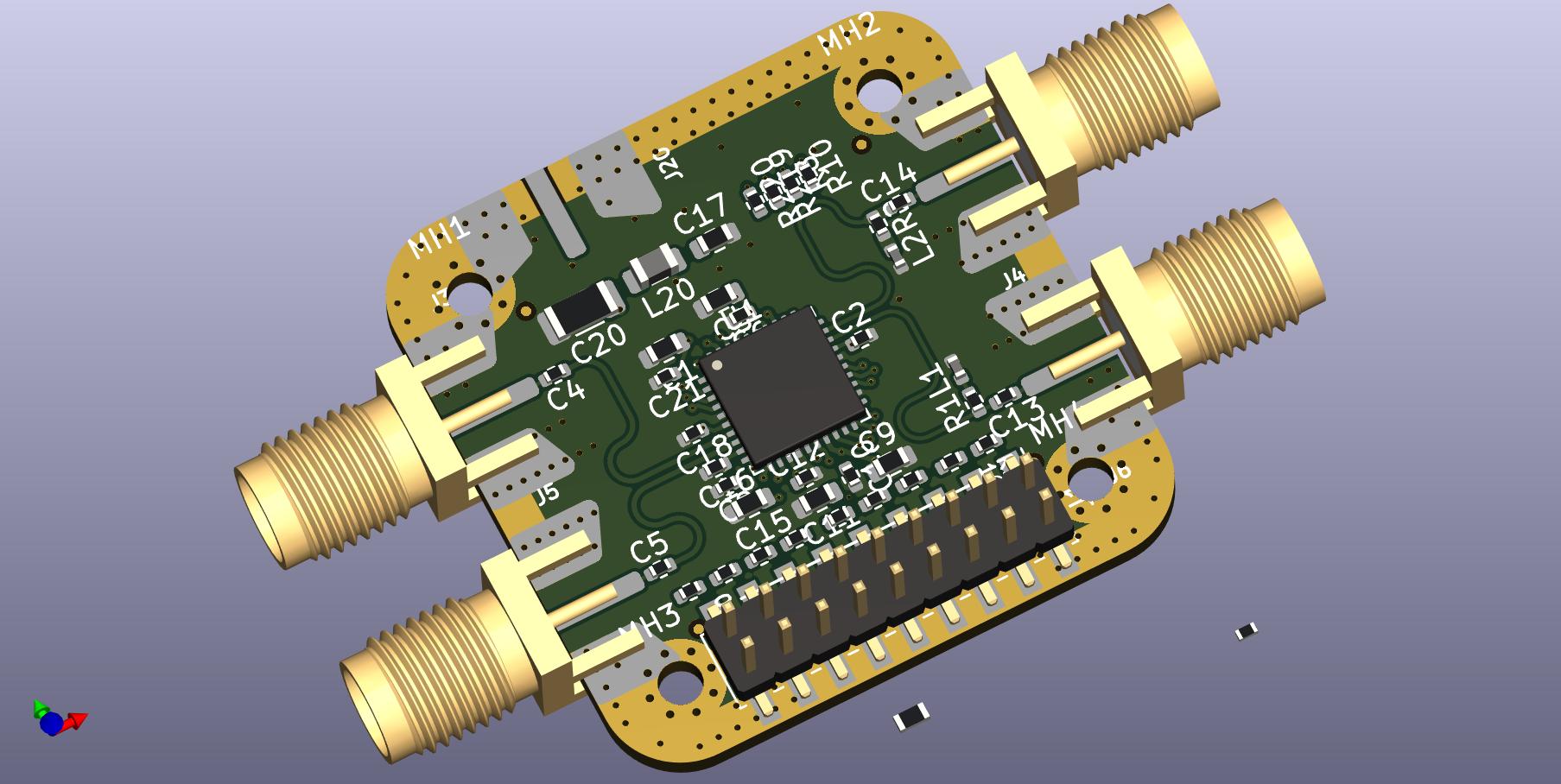

Microsemi-MX1DS10P is an open source PCB design by QSUM-UNB, published on GitHub. It is a 4-layer board measuring 30 × 30 mm, with 59 components from 14 distinct parts.
Other key parts include the MX1DS10P. By type, the board carries 28 resistors, 20 capacitors, 6 connectors, 3 inductors and 1 IC.
From the project
PCB designs for a standalone optical frequency-offset locking system.
- © 2026 by K. Shalaby, P. Trottier, T. Reuschel, and B. Barrett - PCB designs licensed under CC BY-NC-SA 4.0
- This repository contains the PCB designs for a standalone optical frequency-offset locking system. All PCB designs were developed in KiCAD. - Files for each circuit component (or tile) are organized into the directory structure described below. - Details about the locking system and its performance can be found in our publication: - K. Shalaby et al, Standalone optical frequency-offset locking electronics for atomic physics, Rev. Sci. Instrum. 97, 033004 (2026). Pre-print…
Main components on the Microsemi-MX1DS10P
Microsemi-MX1DS10P bill of materials (BOM)
59 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MX1DS10P | QFN-40-1EP_6x6mm_P0.5mm_EP4.6x4.6mm | U1 |
| 1 | NRPN092MAMS-RC Conn_01x18 Sullins Connector Solutions | PinHeader_2x09_P2.00mm_Vertical_SMD | J1 |
| 4 | 0363 142-1701-626 | SMA-Edge-Generic-1.0mm | J3, J4, J5, J6 |
| 1 | 0363 Conn_Coaxial_Power | SMA-Edge-Generic-1.0mm | J20 |
| 1 | LFCG-1900+ | LFCG-1900+ | FL1 |
| 2 | L | L_0402_1005Metric | L1, L2 |
| 1 | CIM21J252NE L Samsung Electro-Mechanics | L_0805_2012Metric | L20 |
| 7 | 1UF 1uF | R_0603_1608Metric | C1, C3, C7, C9, C11, C15, C17 |
| 5 | 10NF 10nF | R_0402_1005Metric | C2, C8, C10, C16, C18 |
| 6 | 10nF | R_0402_1005Metric | C4, C5, C6, C12, C13, C14 |
| 1 | 4.7U 4.7u | R_1206_3216Metric | C20 |
| 1 | 100N 100n | R_0402_1005Metric | C21 |
| 22 | 10K 10k | R_0402_1005Metric | R1, R2, R8, R10, R12, R14, R16, R18 +14 |
| 6 | 0 | R_0402_1005Metric | R3, R4, R5, R6, R7, R19 |
Microsemi-MX1DS10P design files
The KiCad project lives in the QSUM-UNB/Frequency-Offset-Lock repository on GitHub; these links point at the commit this page was built from.
Microsemi-MX1DS10P: common questions
How big is the Microsemi-MX1DS10P PCB?
The Microsemi-MX1DS10P measures 30 × 30 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Microsemi-MX1DS10P?
59 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Microsemi-MX1DS10P design files?
From the QSUM-UNB/Frequency-Offset-Lock repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Microsemi-MX1DS10P design in my own project?
The repository has no license, so all rights stay with QSUM-UNB. Use it as a reference, and ask the author before reusing the design.
