About the Chunchunkb PCB

Chunchunkb is an open source PCB design by qwerty22121998, published on GitHub. It is a 2-layer board measuring 143.7 × 121.4 mm, with 120 components from 10 distinct parts.

By type, the board carries 36 switches, 36 diodes, 35 LEDs, 8 jumpers, 2 connectors and 1 IC.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Wireless split ortholinear keyboard with 70 keys, 2 nice!view displays, 2 rotary encoders.

Wireless split ortholinear keyboard with 70 keys, 2 nice!view displays, 2 rotary encoders.

Original inspirated by Sofle keyboard, but I want to add more keys (F-rows) and ortholinear layout. I also want to add 2 nice!view displays and 2 rotary encoders for better user experience.

- 70 keys - 2 nice!view displays (or 4pin OLED) - 2 rotary encoders (EC11) - Wireless connection (nice!nano or similar) with ZMK firmware support

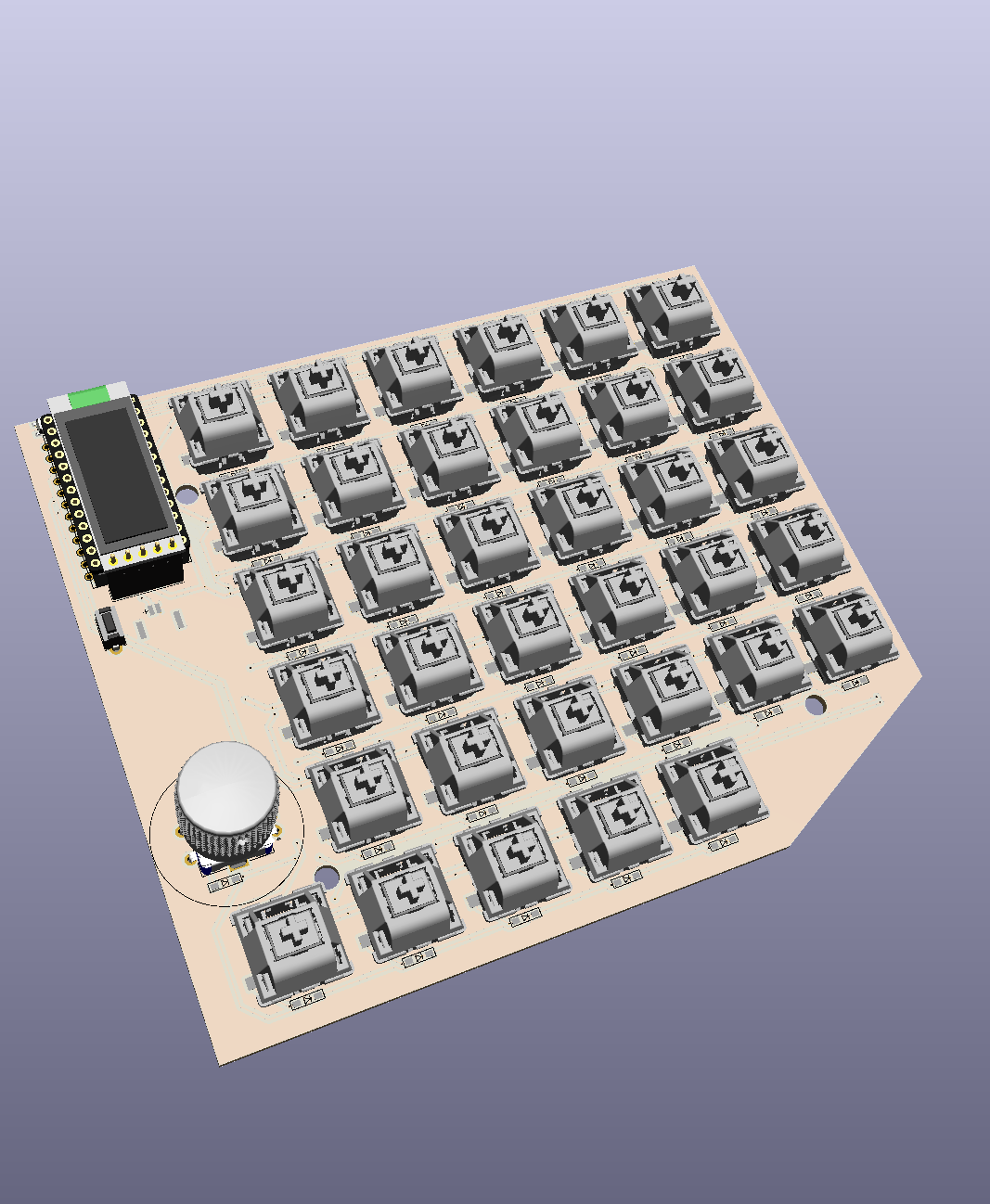

Chunchunkb, from the project README
From the project README

Chunchunkb bill of materials (BOM)

120 components, 10 distinct parts.

QtyPartRefs
1
~
U1
1
BATT
J1
1
OLED
J2
8
jumper
JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8
35
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +27
1
EC11
SW31
1
SW_POWER
SW_POWER1
1
SW_RST
SW_RST1
35
YS-SK6812MINI-E
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +27
36
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +28

Chunchunkb design files

The KiCad project lives in the qwerty22121998/chunchunkb repository on GitHub; these links point at the commit this page was built from.

Chunchunkb: common questions

How big is the Chunchunkb PCB?

The Chunchunkb measures 143.7 × 121.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Chunchunkb?

120 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Chunchunkb design files?

From the qwerty22121998/chunchunkb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Chunchunkb design in my own project?

The repository has no license, so all rights stay with qwerty22121998. Use it as a reference, and ask the author before reusing the design.
