STM32F103VET6 STUno
r-pv·STM32F103VET6_STUno·rSTM32F103VET6/rSTM32F103VET6.kicad_pcb
About the STM32F103VET6 STUno PCB
STM32F103VET6 STUno is an open source STM32 PCB design by r-pv, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 42.5 × 62.5 mm, with 38 components from 21 distinct parts.
Its main chip is the STM32F103VET6, from the STM32 family. Other key parts include the RT9013. By type, the board carries 13 capacitors, 10 resistors, 5 connectors, 3 diodes, 2 ICs and 2 crystals.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

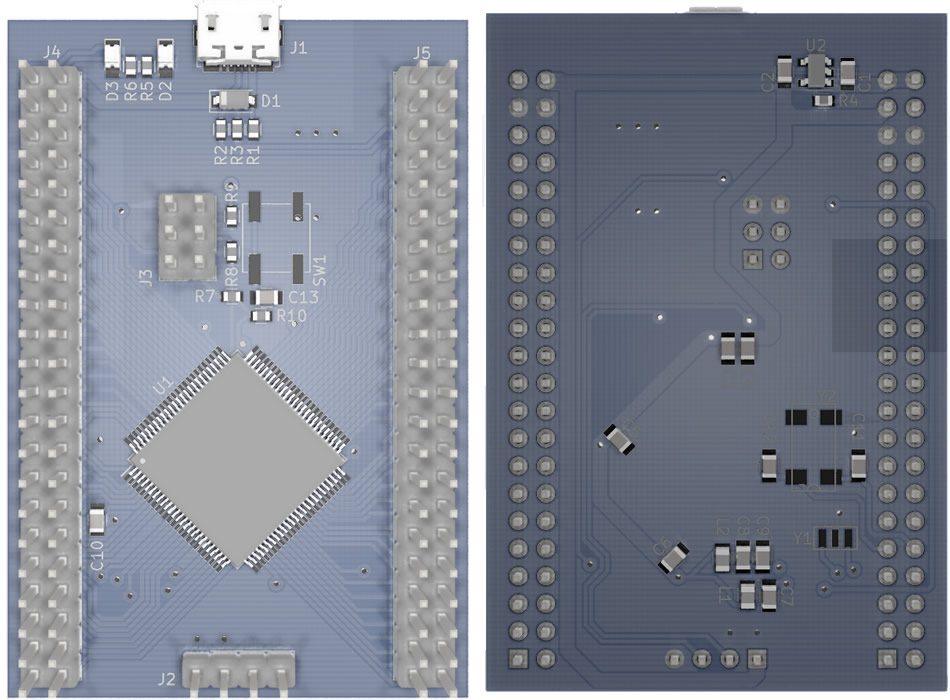

An ST development board based on the STM32F103VET6 MCU compatible with STM32Duino (Arduino).
An ST development board based on the STM32F103VET6/STM32F103VE (Clock: 72MHz, Flash: 512Kb, Ram:64Kb) MCU (the LQFP-100 version of the famous Blue Pill) compatible with STM32Duino (Arduino).
- RBOARDF103VET6 it's the variant board for the STM32 Arduino Core. - rSTM32F103VET6 it's the KiCAD 5.1.2 project. - rSTM32F103VET6.schematic.pdf** the schematic.
Update: Since STCore version 1.9.0 most of the F103XXXX boards (including this) are already supported, so there is no need to install anything.

Main components on the STM32F103VET6 STUno
STM32F103VET6 STUno bill of materials (BOM)
38 components, 21 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F103VET6 | LQFP-100_14x14mm_Pitch0.5mm | U1 |
| 1 | RT9013 | SOT-23-5 | U2 |
| 1 | CSTCE8.000M | Crystal_CSTCE_3pin_3.2x1.3 | Y1 |
| 1 | 32.768K | Crystal_4pin_SMD_2.5x4.6 | Y2 |
| 1 | USB | USB_Micro-B_Molex_47346-0001 | J1 |
| 1 | STLink | Pin_Header_Straight_1x04_Pitch2.54mm | J2 |
| 1 | BOOT | Pin_Header_Straight_2x03_Pitch2.54mm | J3 |
| 2 | — | Pin_Header_Straight_2x22_Pitch2.54mm | J4, J5 |
| 1 | RESET | Switch_SMD_5.2x6.4_reset | SW1 |
| 1 | MBR0530 | D_SOD-123 | D1 |
| 2 | LED | LED_0805 | D2, D3 |
| 2 | 10uH | L_0805 | L1, L2 |
| 3 | 22uF | C_0805 | C1, C2, C3 |
| 7 | 100nF | C_0805 | C4, C5, C6, C7, C9, C10, C13 |
| 1 | 10uF | C_0805 | C8 |
| 2 | 20pF | C_0805 | C11, C12 |
| 1 | 1K5 | R_0603 | R1 |
| 2 | 22R | R_0603 | R2, R3 |
| 3 | 10K | R_0603 | R4, R7, R10 |
| 2 | 4K91 | R_0603 | R5, R6 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 100K | R_0603 | R8, R9 |
STM32F103VET6 STUno design files
The KiCad project lives in the r-pv/STM32F103VET6_STUno repository on GitHub; these links point at the commit this page was built from.
STM32F103VET6 STUno: common questions
What microcontroller does the STM32F103VET6 STUno use?
The STM32F103VET6 STUno is built around the STM32F103VET6, from the STM32 family.
How big is the STM32F103VET6 STUno PCB?
The STM32F103VET6 STUno measures 42.5 × 62.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the STM32F103VET6 STUno?
38 components, from 21 distinct parts. The full bill of materials is listed on this page.
Where can I download the STM32F103VET6 STUno design files?
From the r-pv/STM32F103VET6_STUno repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the STM32F103VET6 STUno design in my own project?
Yes, under the terms of its GPL-3.0 license, which r-pv chose for the repository.
Can I test firmware for the STM32F103VET6 STUno without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
