Temper plate PCB layout, top view — open source board by raeedcho

About the Temper plate PCB

Temper plate is an open source PCB design by raeedcho, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 111.4 × 90 mm, with 18 components from 1 distinct parts.

It belongs with the keyboards, iot & wireless and power & battery designs in this gallery.

From the project

a wireless-only split keyboard based on the chocofi

This is a split, wireless-only mechanical keyboard fashioned after the chocofi keyboard. It started as a simple modification of the original chocofi PCBs to include battery pads and power switches for wireless use, but in the end, I thought there were enough changes to warrant giving it a separate designation. However, this design remains compatible with chocofi cases and plates.

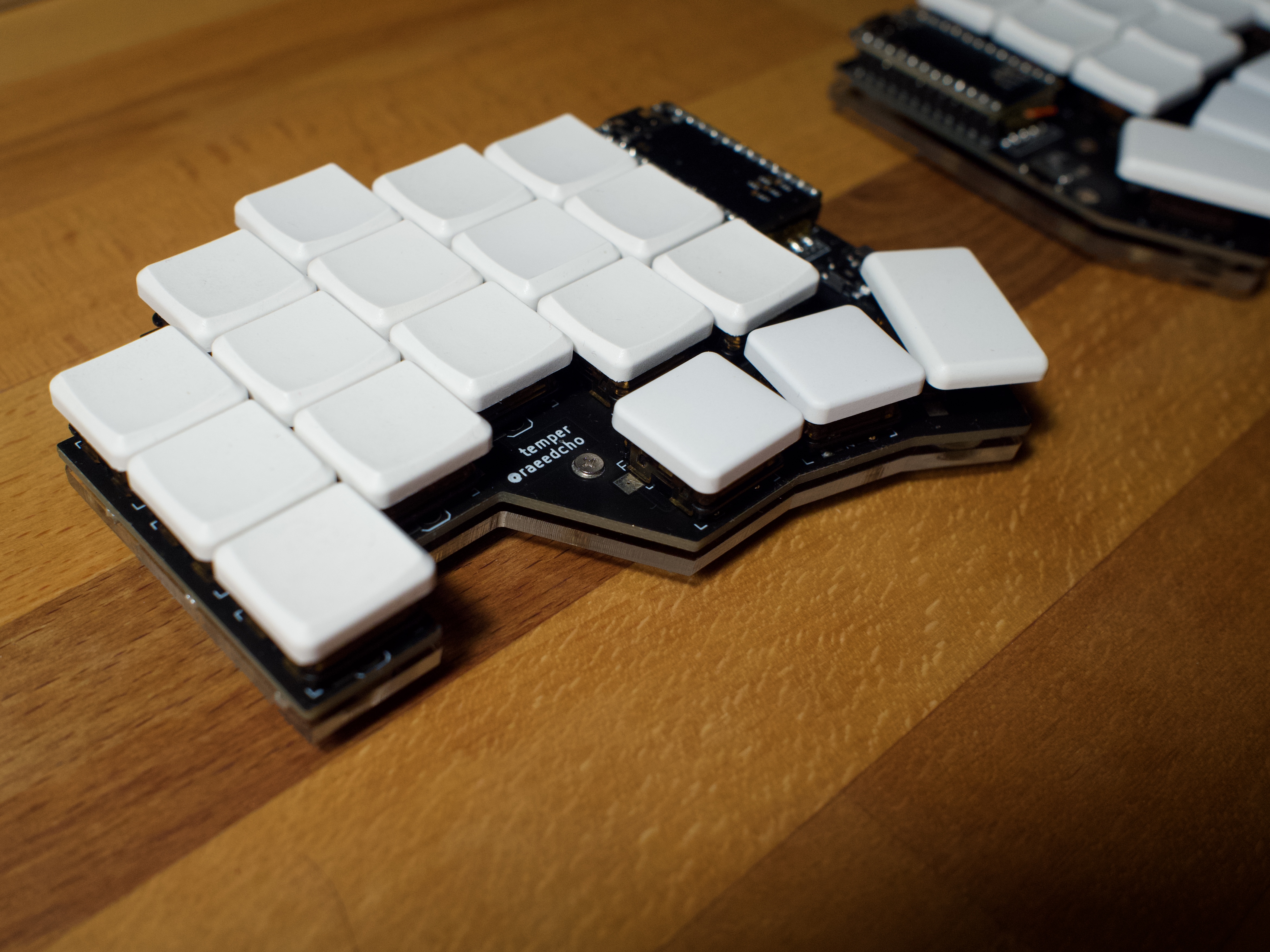

Temper plate, from the project README
From the project README

Temper plate bill of materials (BOM)

18 components, 1 distinct parts.

QtyPartRefs
18
SW_PUSH
SW2, SW3, SW4, SW5, SW6, SW8, SW9, SW10 +10

Temper plate design files

The KiCad project lives in the raeedcho/temper repository on GitHub; these links point at the commit this page was built from.

Temper plate: common questions

How big is the Temper plate PCB?

The Temper plate measures 111.4 × 90 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Temper plate?

18 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the Temper plate design files?

From the raeedcho/temper repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Temper plate design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which raeedcho chose for the repository.
